144 Cores Outdoor Cross Connect Cabinet Fiber Optic Patch Panel For FTTX
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | OEM/Takfly/DF/Neutral |
Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
Model Number: | TK-ODF-OC144 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | US$110.99~138.99 |
Packaging Details: | Export Standard Carton |
Delivery Time: | 7-20 Working Days |
Payment Terms: | Western Union, MoneyGram, T/T/Paypal |
Supply Ability: | 2000PCS/Month |
Detail Information |
|||
Product Name: | 144 Cores Outdoor Fiber Optic Cross Connect Cabinet | Material: | SMC |
---|---|---|---|
Port: | 144 | Color: | Grey/Customized |
Size: | 1035mm X 525mm X 320mm | Adapter: | SC |
Capacity: | 144 Cores | Application: | FTTH FTTB FTTX Network, Telecom, CATV, LAN |
Protection Level: | IP65 | Work Temperature: | -45℃-+85℃ |
Highlight: | SMC Fiber Optic Patch Panel,SMC Cross Connect Cabinet,IP65 Fiber Optic Patch Panel |
Product Description

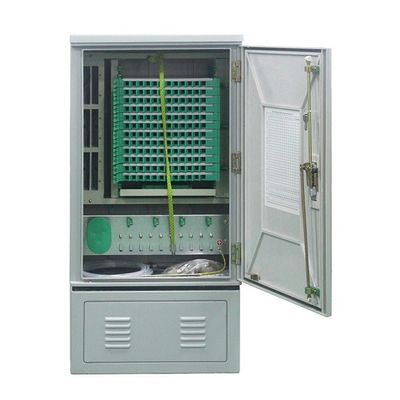

144 Cores Outdoor Cross Connect Cabinet Fiber Optic Patch Panel For FTTX
Fiber optic cross connect cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access net work.
Outdoor Fiber Optic Cross Connecting Cable Cabinet is a connection device in the fiber optic access network for feeder cable and distribution cable. Fiber optic cables are spliced directly or terminated and managed by patch cords for distribution.
With the development of FTTx, outdoor cable cross connection cabinet will be widely deployed and move closer to end user.
Fiber Optic Cross Connect Cabinet Technical Parameters:
- Nominal work wave-length: 850nm, 1310nm, 1550nm
- Protection level: IP65
- Work Temperature: -45℃-+85℃
- Relative humidity: 85%(+30℃)
- Atmospheric pressure: 70~106 KPa
- Insertion loss: 0.2dB
- Return loss: 45dB (PC),55dB(UPC),60dB(APC)
- Isolation resistance(between frame and protection grounding):>1000 MΩ/500V(DC)
Fiber Optic Cross Connect Cabinet Material:
SMC, Cold-rolled steel or stainless steel
Fiber Optic Cross Connect Cabinet Dimension:
TK-ODF-OC576 | 1450mm x 750mm x 540mm |
TK-ODF-OC288 | 1450mm x 750mm x 320mm |
TK-ODF-OC144 | 1035mm x 525mm x 320mm |
TK-ODF-OC96 | 770mm x 450mm x 260mm |
- High intensity and anti-erosion performance
- Able to counter abrupt climate change and extreme environment
- Capacity can be flexibly customized as required
- Installation is quick and convenient
- Built-in direct splice unit is capable for providing direct connection function.
- Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
- With secure and reliable fastening and grounding protection devices for the optic fiber
- Applicable to strap-shaped and non-strap shaped fibers
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN
- CATV
Why choose TAKFLY--- Advantages as follows:
Professional manufacturer:
- More than 21 years manufacturing experience in Fiber optic products-one stop purcharsing.
- More than 450 assembly workers with 3 years experienced;
- More than 26 R&D Engineers;
- 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
- After-sales Services: Available for 24 hours.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once?
