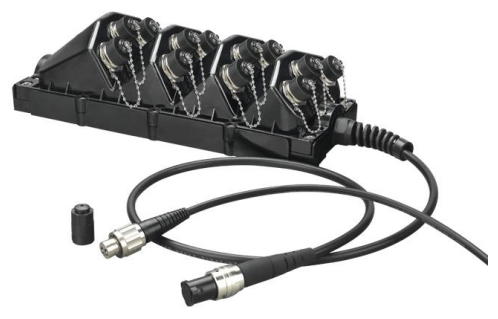

China Optical FTTX Field Enclosure For FTTX Field Networks Pre-Connectorized Outdoor Waterproof Enclosure
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | China Optical FTTX Field Enclosure For FTTX Field Networks Pre-Connectorized Outdoor Waterproof Enclosure |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | China Optical FTTX Field Enclosure For FTTX Field Networks Pre-Connectorized Outdoor Waterproof Enclosure | Port: | 1-12 |
|---|---|---|---|
| Dimension: | 365*137*90mm Without Cover 375*142*120mm With Cover | Ingress Protection: | IP67 |
| Bending Radius: | 20D | Tensile Strength: | 1200N Long Term |
| Adapter : | Mini SC (1F)、Harened(1F)、ODVA(1F &2F)、PTLC(2F)、AARC(2F&4F)、 3P Power Socket | Operating Temperature: | -40℃ ~ +80℃ |
| Warranty: | 1-3 Years | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | FTTX outdoor waterproof enclosure,pre-connectorized fiber optic box,FTTX field network enclosure |
||
Product Description
FTTX Field Enclosure for Outdoor Networks
China Optical FTTX Field Enclosure is a pre-connectorized, waterproof outdoor enclosure designed for FTTX field networks. This economic fiber distribution solution offers high compatibility and easy operation for various installation methods including wall-mounting, aerial installation, and pole holding.
Product Overview
The FTTX Enclosure represents an advanced fiber distribution solution for outdoor applications. Compared to traditional products, it offers superior ease of operation and high compatibility. Suitable for FTTH, FTTA, and other challenging environments, this enclosure provides reliable performance across diverse installation scenarios.
Application Scenarios
FTTH Field Applications
In FTTH deployments, the FTTX Enclosure can replace traditional ONU or FDH units. It accommodates 2-4 pieces of 1×8 or 1×16 PLC splitters and up to 24 fiber splice protection sleeves. When paired with 1-48F IP67 pre-assembled waterproof connectors, it enables direct connections to buildings and low-voltage silos. Factory pre-assembly eliminates fiber splicing requirements, reducing the need for highly skilled operators and increasing installation efficiency by 40%.
FTTA Field Applications
In FTTA applications, the enclosure serves as an aggregation/demark box connecting RRU and BBU units. It replaces star network topologies requiring individual duplex cables for each RRU with a more efficient single multi-fiber hybrid cable from BBU to enclosure, then distributing fibers to RRUs via IP67 pre-assembled waterproof cable assemblies. Power distribution to RRUs is facilitated through integrated power connectors.
Trunk Cable Management
The enclosure addresses trunk cable connection challenges with torsion-proof cable glands (plastic or metal) accommodating 5mm-14mm outer diameter cables. Internal fasteners secure main cables and strength members to withstand 1200N pulling force long-term. Capacity for up to 24 splice protection sleeves and 2 PLC splitters enables efficient fiber distribution. Anti-skid base design ensures secure mounting on wires or poles.
Prospecting & Communication Applications
Ideal for field communications requiring frequent cable relocation, the enclosure's robust construction withstands high-strength pulling and repeated use. Armored cables and strength members are secured with fasteners to maintain 1200N tensile strength capacity. High-strength materials and arc interface design ensure reliable operation under shock conditions.
Key Features
- High compatibility with ODVA, Hconn (OptiTap compatible), Mini SC, ODC, PTLC, PTMPO, and power adapters
- Factory-sealed or field assembly options
- 1200N long-term pulling force resistance
- 2 to 12 ports for single or multi-fiber harsh connectors
- PLC or splice sleeve fiber division capabilities
- IP68 waterproof rating
- Wall-mounting, aerial, or pole holding installation
- Decreased angle surface and optimized height prevent connector interference
- Compliance with IEC 61753-1 standards
- 40% operating time savings
Technical Specifications
| Specification | Details |
|---|---|
| Dimension L×W×H | 365×137×90mm (without cover) 375×142×120mm (with cover) |
| Ingress Protection | IP67 |
| Temperature Range | -40°C to +80°C |
| Cable Strength Member | Armored or Non-Armored |
| Cable Type | Hybrid or Non-Hybrid |
| Round Cable OD | 5.0mm to 14mm |
| Flat Cable Dimension | 4.6×8.9mm |
| Cable Jacket Material | LSZH, TPU, or PE |
| Bending Radius | 20D |
| Cable Crush Resistance | 200N/cm long term |
| Tensile Strength | 1200N long term |
| UV Resistance | ISO 4892-3 |
| Fire Protection Rating | UL 94-V0 |
| Number of PLC | 1-2 PCS |
| Number of Protection Sleeves | 1-24 PCS |
Order Information
| Parameter | Options |
|---|---|
| Adapter | Mini SC (1F), Harened (1F), ODVA (1F & 2F), PTLC (2F), AARC (2F & 4F), 3P power socket |
| Ports | 1-12 |
| Fiber Mode | SM/MM |
| Cable | 1/2/4/8/Customized |
| Cable Type | Round Armored, Round no-armored, Flat, Round Hybrid PLC |
| PLC | With PLC/Without PLC |
| Fusion Sleeve | With fusion Sleeve/Without fusion Sleeve |
| Terminator | Hardened SC, ODVA, AARC, PTLC, PTMPO |
| Installation Method | Wall-mounting, Aerial, Pole holding |
Technical Drawings
Product Images
Why Choose TAKFLY?
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength, crush resistance, power meter, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
