Easy Maintenance FTTH Fiber Optic Termination Box with IP65 Protection and 0.2dB Insertion Loss
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, GS |
| Model Number: | G DF - 12C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US $0.28-0.37/ Pcs |
| Packaging Details: | Plastic Bag |
| Delivery Time: | 3-7working day |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs/Month |
|
Detail Information |
|||
| Cable: | CAT5e | Connector: | RJ45 |
|---|---|---|---|
| Port Number: | <8 | Usage: | Fiber |
| Type: | MDF | Application: | 3mm Or Figure 8 (2*3mm) Cable |
| Size: | 100*80*25 | Insertion Loss: | 0.2dB |
| HS Code: | 8538900000 | Output: | 2 Ports |
| Material: | ABS | Packing: | 400pcs/box |
Product Description

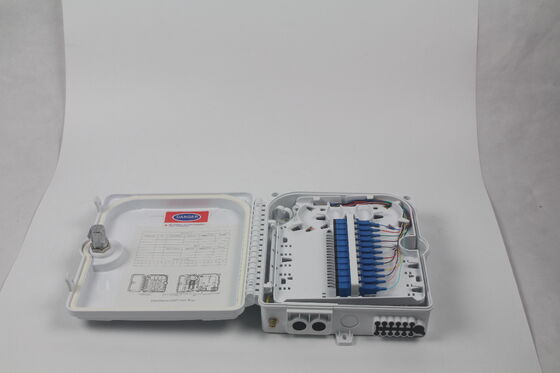

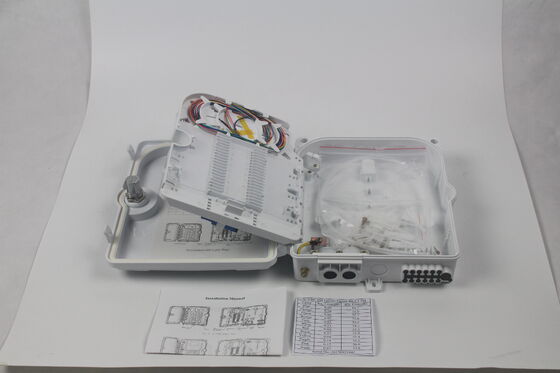

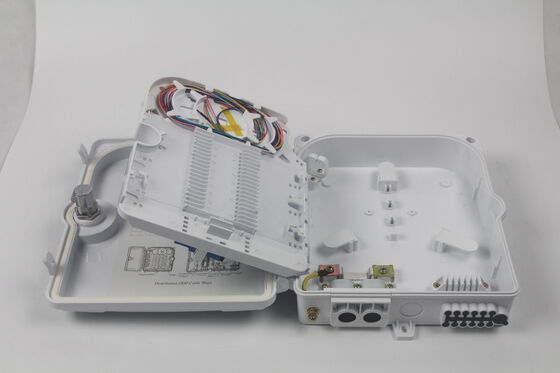

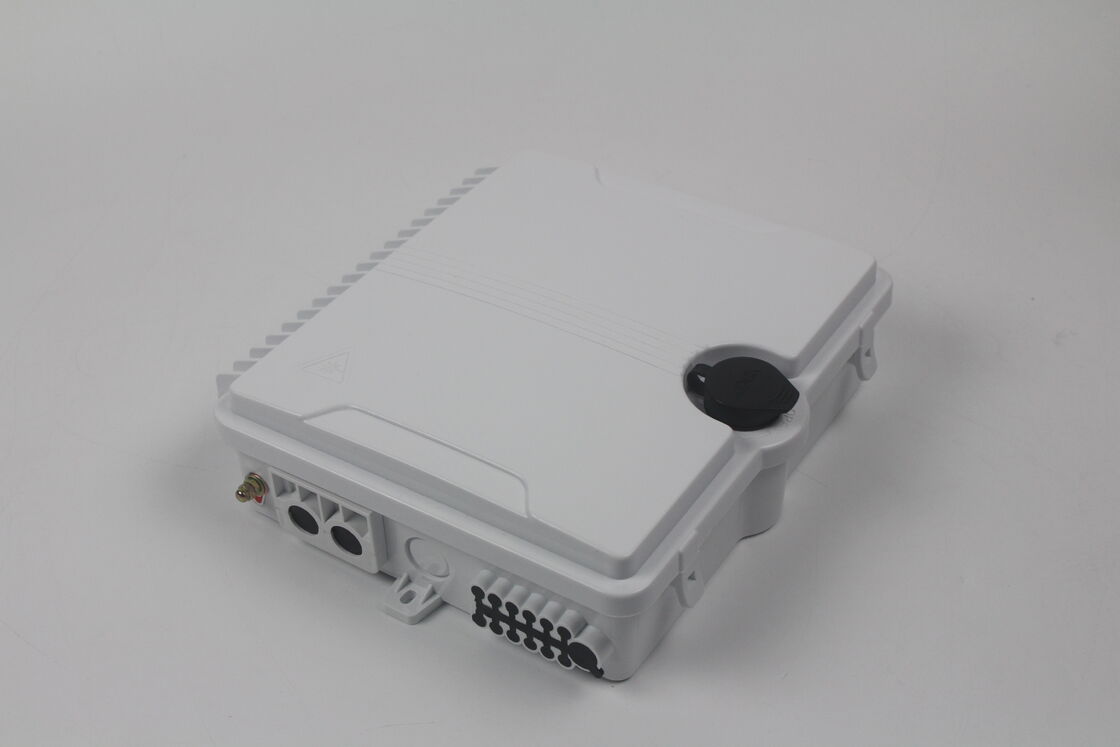

Easy Maintenance FTTH Fiber Optic Termination Box
Product Overview
Model No.: GDF-12C
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, providing solid protection and management for FTTx network building.
Key Features
- Total enclosed structure
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
- Integrated clamping for feeder cable and drop cable, fiber splicing, fixation, storage, and distribution
- Separate cable paths for cables, pigtails, and patch cords without interference
- Cassette type SC adaptor installation for easy maintenance
- Flip-up distribution panel for easy maintenance and installation
- Wall-mounted or pole-mounted installation suitable for indoor and outdoor use
Applications
- Telecommunication subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN networks
Technical Specifications
Environmental Requirements
- Working temperature: -40℃ to +85℃
- Relative humidity: ≤85% (+30℃)
- Atmospheric pressure: 70KPa to 106Kpa
Technical Data
- Insertion loss: ≤0.2dB
- UPC return loss: ≥50dB
- APC return loss: ≥60dB
- Life of insertion and extraction: >1000 times
Thunder-proof Specifications
- Isolation resistance: ≥2×10⁴ MΩ/500V (DC)
- Withstand voltage between grounding device and cabinet: ≥3000V (DC)/min
Product Configuration
| Model | Description | Size (A×B×C mm) | Max Capacity | Installation (A×B mm) |
|---|---|---|---|---|
| GDF-12C | Splitter Box | 225×200×65 | Splitter: 12, Splice: 12 | 168×210 |
Cable Pathways
Cable Pathway Diagram 1
Cable Pathway Diagram 2
Picture 3: GDF-12C Cable Pathways
Picture 4: GFS-8H Cable Pathways
Installation Methods
Wall-mounted Installation
Drill 3 holes in the wall based on the size in the configuration table, place expansion bolt Φ7.5×40, position the box to align with holes, and fasten with bolts.
Pole-mounted Installation
Fix one set of the easy pole ring to the telecom pole.
Installation Diagram
Standard Accessories
- User's Manual × 1
- Key × 1
- Accessories Bag × 1
- Easy pole ring × 2 (Optional)
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution provider in Shenzhen, China, established in 2000.
What's your MOQ?
MOQ can be 1 piece, but larger quantities receive more competitive pricing.
Can you quote FOB price?
Yes, we can deliver by air, DHL, TNT, UPC, FEDEX, or by sea for large quantities.
How is your quality?
Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
What's your lead time?
Lead time depends on quantity and products. Standard products are kept in stock with 2-3 day lead times for patch cords up to 5000 pieces.
What's your warranty?
1-year warranty for patch cords for non-artificial damage. Artificial damage repairs are free with customer paying freight.
What's your packing?
International export standard package. Custom logo printing available upon request.
Can you offer OEM/ODM?
Yes, all products accept OEM/ODM with Confidentiality Agreement available.
Can I have a sample?
Free samples available for products under $10. Buyer pays freight.
How can I order?
Send inquiry with product details and quantity. We provide quotation, then PI with bank account. Production begins after payment confirmation.
What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
Want to Know more details about this product
