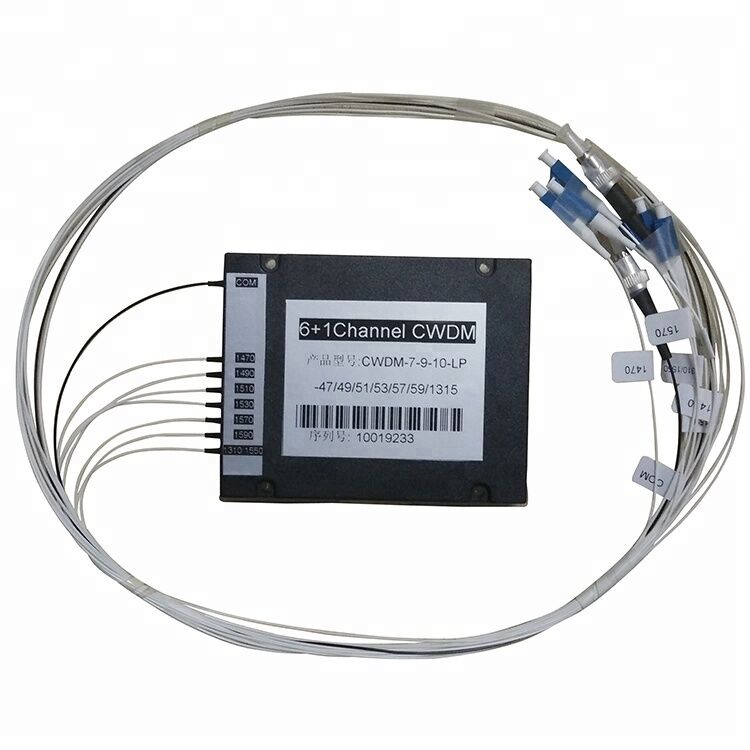

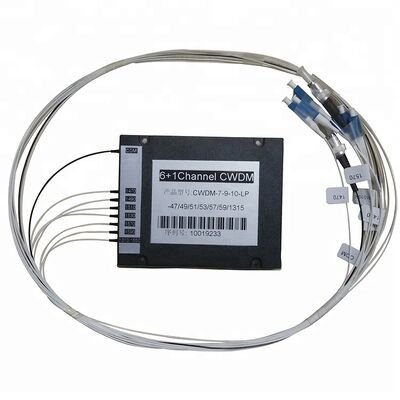

Scalable CCWDM Module Offering Customized Fiber Length and 2 to 40 Channels Suitable for Advanced Optical Communications

Scalable CCWDM Module Offering Customized Fiber Length and 2 to 40 Channels Suitable for Advanced Optical Communications

Product Description:

The WDM Mux Demux product is a highly efficient and versatile optical device designed to meet the demanding requirements of modern fiber optic communication systems. With the capability to support between 2 to 40 channels, this WDM DEMUX solution offers exceptional flexibility for network designers and operators who need to manage multiple wavelengths on a single fiber. Whether you are expanding your existing infrastructure or deploying a new system, this product is engineered to deliver superior performance and reliability.

One of the key features of this WDM Mux Demux is its customizable connectors. Understanding that different network environments require different interface types, the product allows for tailored connector options to seamlessly integrate with your existing equipment. This ensures minimal signal loss and optimal connectivity, making installation and maintenance straightforward and efficient.

The device boasts a return loss of ≥ 45 dB, which is a critical parameter in fiber optic networks. A high return loss value means that the product effectively minimizes reflections within the fiber, thus reducing interference and signal degradation. This contributes to a clearer and more stable transmission, which is essential for high-speed data communication and long-distance optical networks.

Recognizing the diverse deployment scenarios, the fiber length of the WDM Mux Demux can be customized according to specific installation needs. Whether your application requires short-range connections within a data center or extended reach for metropolitan or long-haul networks, this product can be tailored to provide the appropriate fiber length. This flexibility enhances the adaptability of the system, reducing the need for additional components or complex configurations.

Durability and reliability are paramount in optical network devices, especially those used in harsh environments. This WDM DEMUX product is designed to operate efficiently within a wide temperature range of -20°C to +70°C. Such a robust operating temperature range ensures consistent performance even in challenging conditions, from cold outdoor installations to high-temperature industrial settings. This makes it suitable for a broad spectrum of applications, including telecommunications, data centers, and enterprise networks.

The WDM Mux Demux employs Dense Wavelength Division Multiplexing (DWDM) technology, enabling the transmission of multiple optical signals simultaneously over a single fiber by using different wavelengths (channels). This technology significantly increases the capacity of optical networks without the need for additional fibers, resulting in cost savings and improved network scalability. The product’s precise wavelength separation and low insertion loss characteristics make it an ideal choice for high-capacity communication systems.

Moreover, the product’s compact design and robust construction facilitate easy integration into existing network setups. It is engineered to deliver consistent performance, ensuring minimal signal crosstalk and excellent channel isolation. These qualities are essential for maintaining high data integrity and network efficiency, especially in dense network environments where channel interference can be a significant issue.

In summary, the WDM Mux Demux product is a premium solution for optical network multiplexing and demultiplexing needs. Its customizable connectors, high return loss, adjustable fiber length, and wide operating temperature range make it a versatile and reliable choice for various applications. By leveraging DWDM technology, it enhances network capacity and performance, supporting 2 to 40 channels with outstanding efficiency. Whether for upgrading existing infrastructure or deploying new systems, this WDM DEMUX device stands out as a critical component in ensuring high-speed, high-quality optical communication.

Features:

• Product Name: WDM Mux Demux
• Operating Temperature: -20°C to +70°C
• Operating Band: C Band
• Return Loss: ≥ 45 dB
• Channel Capacity: 2 to 40 channels
• Fiber Length: Customized according to requirements
• Supports MUX and WDM DEMUX applications
• High-performance WDM MUX for efficient wavelength multiplexing

Technical Parameters:

Applications:

The OEM WDM Mux Demux, model number WDM, is a highly reliable and efficient device originating from Shenzhen, China, designed to meet the demanding needs of modern optical communication networks. Certified by CE, ROHS, and REACH, this product ensures adherence to international quality and environmental standards, making it an ideal choice for various application occasions and scenarios.

One of the primary application occasions for the OEM WDM Mux Demux is in telecommunications networks where DWDM (Dense Wavelength Division Multiplexing) technology is employed. This device supports multiplexing and demultiplexing of optical signals across 2 to 40 channels, allowing network operators to maximize fiber capacity and enhance data transmission efficiency. Its customizable fiber length and connectors enable seamless integration into existing infrastructure, providing flexibility in deployment.

In data centers and enterprise networking, the WDM Mux Demux is utilized to optimize bandwidth and improve network scalability. The device’s excellent return loss of ≥ 45 dB ensures minimal signal degradation, maintaining high-quality communication over long distances. Operating reliably within a temperature range of -20°C to +70°C, it is suitable for diverse environmental conditions, from climate-controlled server rooms to outdoor installations.

OEM’s WDM Mux Demux is also crucial in metropolitan area networks (MANs) and long-haul optical fiber systems, where multiplexing multiple wavelengths onto a single fiber reduces infrastructure costs and simplifies network management. The standard export packaging guarantees safe delivery within 3-7 working days, supported by a robust supply ability of 8000 units per day, ensuring prompt availability for large-scale projects. Payment terms are straightforward with T/T at once, and the minimum order quantity is just one unit, catering to both small and large customers.

The versatility of the OEM WDM Mux Demux product extends to research and development facilities, where customized configurations support experimental setups involving DWMD multiplex techniques. Whether enhancing existing networks or building new optical communication frameworks, this device offers reliable performance, cost-effectiveness, and adaptability across various scenarios.

In summary, the OEM WDM Mux Demux product is ideal for telecommunications, data centers, metropolitan networks, and R&D environments where efficient DWMD multiplexing is critical. Its customizable features, certifications, and robust performance parameters make it a dependable solution for modern optical networking needs.

Customization:

Our OEM WDM Mux Demux (Model Number: WDM) offers high-quality multiplexing solutions designed and manufactured in Shenzhen, China. Certified with CE, ROSH, and REACH, this product ensures reliability and compliance with international standards.

We provide flexible product customization services for the WDM MUX, allowing you to tailor fiber length and connectors to your specific needs. With operating temperatures ranging from -20°C to +70°C, and support for 2 to 40 channels within the C Band, our multiplex devices deliver exceptional performance in various environments.

The minimum order quantity is 1 unit, priced between $20 and $80, making it easy to start your project without large upfront investments. Our standard export packing guarantees safe delivery, and with a supply ability of 8000 units per day, we can meet your demands promptly.

We offer a quick delivery time of 3-7 working days and convenient payment terms via T/T at once. Choose our WDM MUX to enhance your multiplexing systems with customizable and reliable components designed for efficient optical network performance.

Support and Services:

Our WDM Mux Demux product is designed to provide efficient wavelength division multiplexing for your optical network needs. For technical support, please ensure that you have the product model number, serial number, and a detailed description of the issue ready before contacting support.

We offer comprehensive technical assistance including installation guidance, troubleshooting, and maintenance services to ensure optimal performance of your WDM Mux Demux system.

Our support team is equipped to help with configuration settings, compatibility questions, and firmware updates. We also provide detailed user manuals and technical documentation to assist with self-service troubleshooting.

In addition to technical support, we offer customized training sessions and on-site service options to meet the specific needs of your organization.

Please refer to the product warranty and service agreement for details on coverage and service terms.

Packing and Shipping:

Product Packaging and Shipping

The WDM Mux Demux is carefully packaged to ensure safety and integrity during transit. Each unit is enclosed in an anti-static bag and cushioned with foam inserts within a sturdy cardboard box to prevent damage from shocks and vibrations.

For bulk orders, multiple units are packed securely in larger cartons with additional padding to avoid movement inside the box. All packages are clearly labeled with product information, handling instructions, and shipping details.

Shipping options include standard air freight, express courier, and sea freight, depending on customer requirements and delivery location. We ensure timely dispatch and provide tracking information for all shipments to keep customers informed throughout the delivery process.

Upon receipt, customers are advised to inspect the packaging and product for any signs of damage and report any issues immediately to ensure prompt resolution.

FAQ:

Q1: What is the brand and model number of this WDM Mux Demux product?

A1: The brand name is OEM and the model number is WDM.

Q2: Where is the WDM Mux Demux manufactured?

A2: It is manufactured in Shenzhen, China.

Q3: What certifications does the WDM Mux Demux have?

A3: This product is certified with CE, ROSH, and REACH.

Q4: What is the minimum order quantity and price range for the WDM Mux Demux?

A4: The minimum order quantity is 1 unit, and the price ranges from $20 to $80 depending on the specifications.

Q5: What are the packaging and delivery details for the WDM Mux Demux?

A5: The product comes with standard export packing, and the delivery time is typically 3-7 working days.

Q6: What are the payment terms and supply capacity for this product?

A6: Payment is accepted via T/T at once, and the supply ability is 8000 units per day.
