Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH

Product Details:

Place of Origin: Guangdong, SHENZHEN
Brand Name: TAKFLY
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: DF-CWDM-8CH

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pices
Price: US$0.01 ~ US$1200/PC
Packaging Details: spone + box + carton
Delivery Time: 3-7working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Fiber Type: SMF-28e Package Dimension: -40~+85
Pass Band: ±6.5nm Isolation: > 30dB
Band: C Band Or L Band Or Custom Dimensions: 19
Warranty: 3 Years Cable Diameter: 0.9mm
Pigtail Length: 1m Or 1.5m Or Customized Bandwidth: 1310±50; 1490±10; 1550±10
Cable Type: SMF -28e Fiber: SMF-28e Or Custom
Directivity: > 50dB Fiber Height: -100-0μm
Rotation Angle: 45° Or 90°
Highlight:

8 CH Coarse Wavelength Division Multiplexer

,

Mini Coarse Wavelength Division Multiplexer

,

Compact Coarse Wavelength Division Multiplexer

Product Description

Features

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 0 Low Insertion Loss

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 1 Compact size

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 2 Ultra Stable and Highly Reliable

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 3 Extended Operating Temperature Available



Applications

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 4 Optical Add/Drop Multiplexing

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 5 Telecom networks

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 6 Metro networks

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 7 Broadband Networks



Performance Specifications



Parameter 4 Ch 4+UPG 8+UPG1 8+UPG2
Operating Wavelength (nm)
Channel Wavelength (nm)
UPG Port Wavelength Range(nm) NA TBD 1260~ 1360 1260~ 1457
Channel Spacing(nm)
Channel Passband (nm)
Insertion Loss (dB)* ≤0.8 ≤0.8 ≤1.4 ≤1.7
Channel Ripple (dB)
Isolation (dB) Adjacent
Non-adjacent
UPG Isolation (dB) NA >15 >15 >15
Polarization Mode Dispersion (PS)
Polarization Dependent Loss (dB)
Directivity (dB)
Return Loss(dB)
Maximum Power Handling (mW)
Operating Temperature (℃)
Storage Temperature (℃)
Fiber Type
Connector
Package dimension (mm)

Above specification are for device without connector.



Order Information

Configuration Channel No. Pigtail Type Fiber length Declension(mm) Connector







CC=CCWDM

40=4 Channel

41=4+UPG

80=8 Channel

81=8+UPG1

82=8+UPG2

……







0=250um 1=900um





0=0.5m

1= 1m

2= 1.5m

3=others







1= L55 x W45 xH6 2=L44 x W25 x H6



0=None

1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others

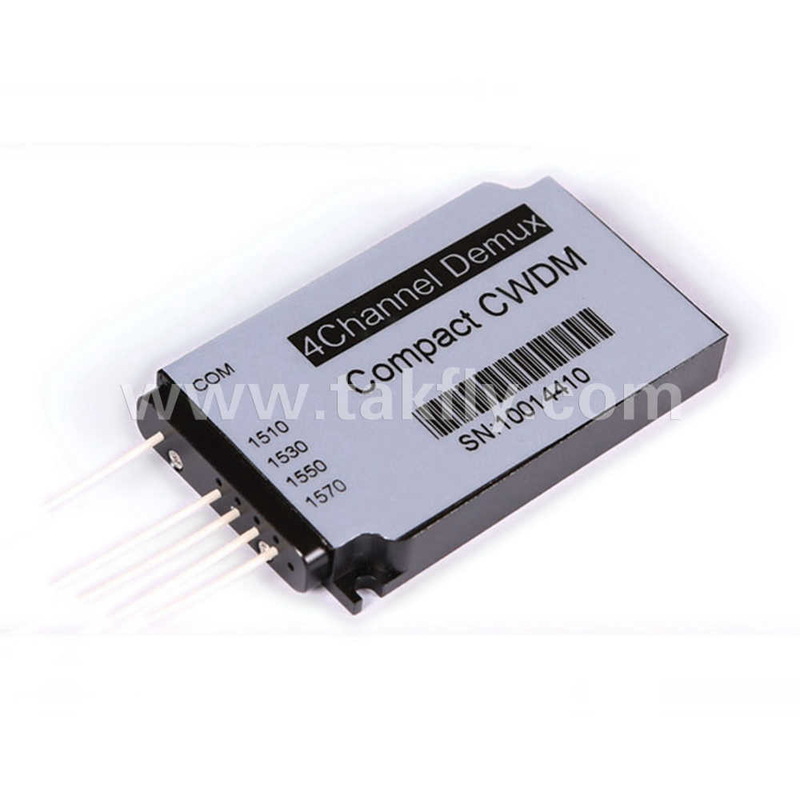

Type1:

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 8

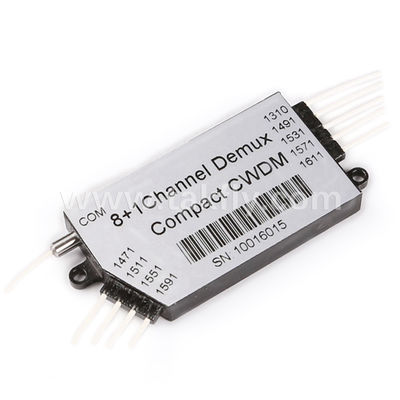

Type 2:

Mini Compact Coarse Wavelength Division Multiplexer Less Than 8 CH 9
