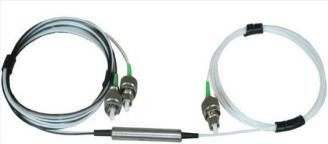

Seamless Connectivity with 1x2 DWDM Device featuring 0.9mm Cable Diameter and Rotation Angle of 45° or 90°
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-1x2 DWDM*865 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Fiber Type: | SMF-28e | Package Dimension: | -40~+85 |
|---|---|---|---|
| Pass Band: | ±6.5nm | Isolation: | > 30dB |
| Band: | C Band Or L Band Or Custom | Dimensions: | 19 |
| Warranty: | 3 Years | Cable Diameter: | 0.9mm |
| Pigtail Length: | 1m Or 1.5m Or Customized | Bandwidth: | 1310±50; 1490±10; 1550±10 |
| Cable Type: | SMF -28e | Fiber: | SMF-28e Or Custom |
| Directivity: | > 50dB | Fiber Height: | -100-0μm |
| Rotation Angle: | 45° Or 90° | ||
| Highlight: | Seamless Connectivity DWDM Device,1x2 DWDM Device |
||
Product Description
Features
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
Applications
- Channel Add/Drop
- DWDM Network
- Fiber Optical Amplifier
Performance Specifications
|
Parameter Channel Spacing |
|
50GHz |
100GHz |
200GHz |
|
|
Channel Wavelength/通道波长(nm) |
|
1530.33~1560.61(21~59 TU grid) |
|||
|
Center wavelength Accuracy/中心波长精度(nm) |
|
±0.02 |
±0.05 |
±0.1 |
|
|
Channel Spacing (GHz) /信道间隔GHz) |
|
50 |
100 |
200 |
|
|
Channel Passband (@-0.5dB bandwidth) (nm)/信道通频带宽 |
|
>0.1 |
>0.22 |
>0.5 |
|
|
Insertion Loss Pass Channel/透射插入损耗(dB) |
|
≤0.8 |
≤0.8 |
≤0.9 |
|
|
Insertion Loss Reflect Channel/反射插入损耗(dB) |
|
≤0.4 |
|||
|
Channel Ripple/信道平坦度(dB) |
|
0.3 |
|||
|
Isolation (dB) |
Adjacent/相邻 |
|
N/A |
>30 |
|
|
|
Non-adjacent/非相邻 |
|
N/A |
>40 |
|
|
Reflection Channel Isolation (dB)/反射隔离度 |
|
> 13 |
|||
|
Insertion Loss Temperature Sensitivity/插入损耗温度稳定性(dB/℃) |
|
≤0.003 |
|||
|
Wavelength Temperature Shifting/波长温度稳定性(nm/℃) |
|
<0.002 |
|||
|
Polarization Dependent Loss/偏振相关损耗(dB) |
|
<0.1 |
|||
|
Polarization Mode Dispersion/偏振模式色散(PS) |
|
<0.1 |
|||
|
Directivity/方向性(dB) |
|
>50 |
|||
|
Return Loss/回损(dB) |
|
>50 |
|||
|
Maximum Power Handling/最大工作功率(mW) |
|
500 |
|||
|
Operating Temperature/工作温度(℃) |
|
-10~80 |
|||
|
Storage Temperature /储藏温度(℃) |
|
-40~85 |
|||
|
Package dimension/封装尺寸(mm) |
|
1.Ø5.5 x L34 Bare 2.L38 for 900um |
|||
Above specification are for device without connector
Order Information
|
Channel Spacing |
Channel Wavelength |
Fiber type |
Pigtail Type |
Fiber length |
Connector |
|
50=50G 100=100G 200=200G |
O:1260~1360nm E+S:1360~1530nm C:1530~1565nm L:1565~1625 C20= 1561.42 nm
|
1-G652D 2-G657A 3-Other |
A—Bare fiber B—900um loose tube C—900um tight tube D—2.0mm loose tube E—3.0mm loose tube |
00—Other 05—0.5m 10—1m 15—1.5m 20—2 m |
1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other |
