Micro Optical Fiber Indoor Cable GJFH-24-288 for Data Centers
Product Summary
Micro Optical Fiber Indoor Cable GJFH-24-288 Product Overview Micro Optical Fiber Indoor Cable GJFH-24-288 is designed for high-performance indoor fiber optic applications with excellent reliability and flexibility. Applications Optical fiber active connection jumper or tail fiber Routing and ...
Product Custom Attributes
Product Name:
Micro Optical Fiber Indoor Cable GJFH-24-288
SM Attenuation:
Typical 0.36/0.22
Cladding Diameter(µm):
125±1.0
MM Attenuation:
Typical 3.0/1.0
Optical Fiber Fiber Count:
24-288 C
Loose Tube Color:
The Chromatographic
Sheath Material:
LSZH
Sheath Diameter:
3.0±0.1mm
Temperature Range:
-20℃-+60℃
Warranty:
5 Years, Lifetime Maintenance
Fiber Brand:
Corning, YOFC, OFS, Draka
Highlight:
Micro optical fiber cable GJFH-24-288
,Indoor fiber optic cable 288 core
,GJFH fiber cable with warranty
Product Description
Micro Optical Fiber Indoor Cable GJFH-24-288
Product Overview
Micro Optical Fiber Indoor Cable GJFH-24-288 is designed for high-performance indoor fiber optic applications with excellent reliability and flexibility.
Applications
- Optical fiber active connection jumper or tail fiber
- Routing and patching for data center and indoor communication network locations
- Interconnection of instruments and communication equipment
Product Characteristics
- Coated fiber is easy to peel off
- Aramid yarn reinforced element provides excellent tensile resistance
- Multi-core number with small outer diameter
- Good flame-retardant performance with low induced attenuation within operating temperature range
Optical Parameters and Properties
Single-mode Fiber Specifications
| Fiber Type | G652D (1310/1550nm) | G657A1 (1310/1550nm) | G657A2 (1310/1550nm) | G657B3 (1310/1550nm) |
|---|---|---|---|---|
| Attenuation (dB) Typical | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 |
| Attenuation (dB) Maximum | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 |
| Zero Dispersion Slope | ≤0.091 ps/km*nm² | ≤0.092 ps/km*nm² | ≤0.092 ps/km*nm² | ≤0.092 ps/km*nm² |
| Dispersion (1285~1340nm) | -3.5 - 3.5ps/(nm*km) | -3.5 - 3.5ps/(nm*km) | -3.5 - 3.5ps/(nm*km) | -3.5 - 3.5ps/(nm*km) |
| Mode Field Diameter (@1310nm) | 9.1±0.4 µm | 8.8±0.4 µm | 8.8±0.4 µm | 8.8±0.4 µm |
| Cutoff Wavelength Cable (nm) | ≤1260 nm | ≤1260 nm | ≤1260 nm | ≤1260 nm |
| Min Bend Radius (mm) | 16 mm | 10 mm | 7.5 mm | 5.0 mm |
| Cladding Diameter (µm) | 125±1.0µm | 125±1.0µm | 125±1.0µm | 125±1.0µm |
Multi-mode Fiber Specifications
| Fiber Type | 62.5/125 µm (850/1300nm) | 50/125 µm (850/1300nm) | BIOM2+ (850/1300nm) | BIOM3 (850/1300nm) | BIOM4 (850/1300nm) | BIOM5 (850/953nm/1300nm) |
|---|---|---|---|---|---|---|
| Attenuation (dB) Typical | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Attenuation (dB) Maximum | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 |
| Bandwidth (MHz*km) | ≥200/≥500 | ≥400/≥500 | ≥700/500 | ≥1500/500 | ≥3500/500 | ≥3500/1850/500 |
| Effective Modal Bandwidth | ----/---- | ----/---- | ≥950/--- | ≥2000/---- | ≥4700/---- | ≥4700/2470 |
| 10 Gigabit Ethernet SX (M) | ---- | ---- | ≤150/---- | ≤300/---- | ≤550/---- | |
| 40GBASE-SR4/100GBASE-SR10 | ---- | ---- | ---- | 140/---- | 170/---- | 200M/----/---- |
| Min Bend Radius (mm) | 30 | 30 | 7.5 | 7.5 | 7.5 | 7.5 |
| Cladding Diameter (µm) | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 |

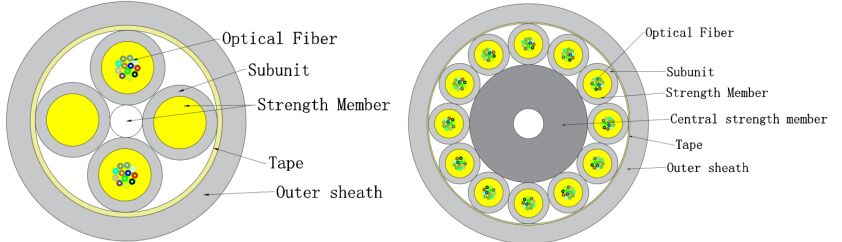

Product Structure
| Items | Descriptions |
|---|---|
| Optical Fiber | Fiber count: 24-48, 50-72, 74-96, 98-288 Color: The chromatographic |
| Subunit/Filler | Count: 4, 6, 8, 12 Material: LSZH |
| Strength Member | Material: Aramid yarn Color: Depending on customer requirements or fiber type Diameter: 3.0±0.1 mm Thickness: 0.5±0.05 mm |
| Central Strength Member | Material: FRP & sheath |
| Outer Sheath | Material: LSZH Color: Depending on customer requirements or fiber type |
| The Parcel Layer | Material: Tape Diameter: 9.0±0.3, 11.2±0.4, 13.5±0.5, 17.5±0.5 mm |
Mechanical and Environmental Characteristics
| Items | Descriptions |
|---|---|
| Tensile Strength | Short-term: 150N Long-term: 50N |
| Crush Resistance | Short-term: 500N/100mm Long-term: 100N/100mm |
| Temperature Range | -20℃ to +60℃ |
| Bending Radius | Dynamic: ≥20D Static: ≥10D |
Packaging & Delivery
- Packaging: Wooden Drums Protection. According to customer or our company request.
- Delivery Length: Standard Reel Length: 0.5-2.0 km or according to customer request.
Cable Marking
- Cable Marker every Meter by inkjet printing
- Year of manufacture
- Type of Cable
- Number of fiber
- Cable length
- Etc.
- According to customer or our company request
Product Images
Why Choose TAKFLY
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
