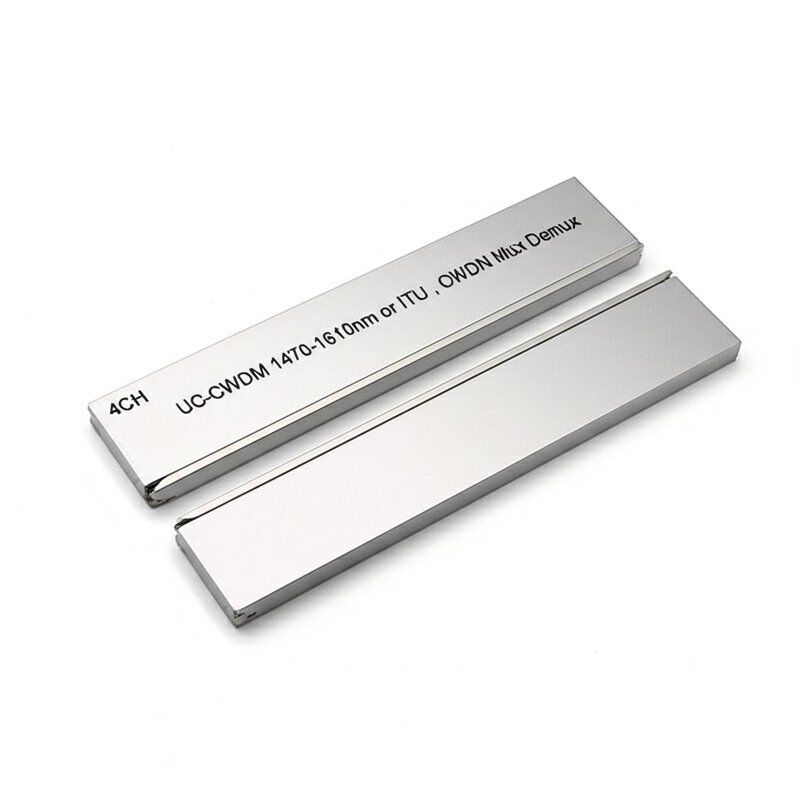

4CH UC-CWDM 1470-1610nm or ITU , CWDN Mux Demux
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | DF/TAKFLY/OEM |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-DWDM-4CH-ULC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 899.99 |
| Packaging Details: | inner box+carton |
| Delivery Time: | 7-9 working ays |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 200pcs per week |
|
Detail Information |
|||
| Channel Number: | 4 | Channel Center Wavelengths: | ITU |
|---|---|---|---|
| Mux Or Demux Insertion Loss: | ≤2.5dB | Isolation Adjacent: | ≥30dB |
| Isolation Non-adjacent: | ≥40dB | Polarization Dependent Loss: | ≤0.4dB |
| Return Loss: | ≥45dB | Dimension: | 30x23x6.5mm |
| Operating Temperature: | -40~ +85℃ | ||
| Highlight: | 4CH UC-CWDM Mux Demux,1470-1610nm CWDM Mux Demux,ITU CWDM Mux Demux |
||
Product Description
4CH UC-CWDM 1470-1610nm or ITU, CWDN Mux Demux
Industrial Type 4CH Ultra Compact DWDM Module
Takfly's R&D department has developed an industrial type Ultra Compact DWDM module based on well-developed thin film filter (TFF) technology and using ultra-compact free-space micro-optic integration method. The device operates effectively across a wide temperature range and delivers exceptional performance that meets industry standard requirements.
Features
- Ultra-Low Insertion Loss
- TFF Free-space Technology
- Passive module, no electrical power required
- Stable Operating Temperatures
- Customized Bands Combination
Applications
- Hybrid DWDM over CWDM Networks
- Expansion Port for Future Bandwidth Increasing
- 5G Networks
Product Code
| Item Number | Customer Part Number | Future-Optics Part Number | Description |
|---|---|---|---|
| 1 | NA | NA | 16CH DWDM MODULE,ITU, 100GHz,G657A2, Fiber 900um loose tube,-40~+85℃,FC/APC |
Technical Specifications
| Parameters | Specifications | Unit |
|---|---|---|
| Channel Number | 4 | CH |
| Channel Center Wavelengths (nm) | ITU | |
| Channel Passband(0.5dB) | λc ±0.11 | nm |
| Mux or Demux Insertion Loss | ≤2.5 | dB |
| Isolation - Adjacent | ≥30 | dB |
| Isolation - Non-adjacent | ≥40 | dB |
| Polarization Dependent Loss | ≤0.4 | dB |
| Ripple | ≤0.5 | dB |
| Return Loss | ≥45 | dB |
| Dimension | 30x23x6.5 | mm |
| Fiber Type | G657A2 Fiber, 900um jacket | |
| Fiber Length | >1 | M |
| Connector | FC/APC | |
| Operating Temperature | -40~ +85 | °C |
| Storage Temperature | -40 ~ +85 | °C |
Note: The above parameters without connector, a pair of connector loss is 0.25dB
