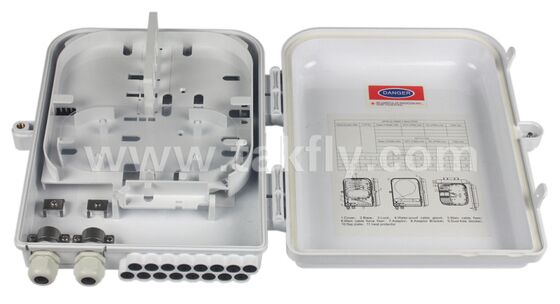

16 Ports Fiber Optic Termination Box Model No.: FTKS-1805-16D

Product Summary

16 Ports Fiber Optic Termination Box Model No.: FTKS-1805-16D Product Overview The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it ...

Product Custom Attributes

Product Name:
16 Ports Fiber Optic Termination Box Model No.: FTKS-1805-16D
Working Temperature:
40℃~+85℃
Relative Humidity::
S85%(+30℃)
Atmospheric Pressure:
70KPa~106Kpa
Insertion Loss:
S0.2dB
UPC Return Loss:
>=50dB
APC Return Loss:
>=60dB
Life Of Insertion And Extraction Fiber Count:
>=1000 Times
Fiber Brand:
Corning, YOFC, OFS, Draka
Highlight:

16 port fiber optic termination box

,

fiber optic termination box with warranty

,

FTKS-1805-16D fiber termination box

Basic Properties

Place of Origin:
China, Shenzhen
Brand Name:
DF/OEM/Nuetral
Certification:
CE/ROHS/REACH/ISO9001/ISO14001
Model Number:
TK-PC-48F-SC-OS2-50M

Trading Properties

Minimum Order Quantity:
negotiable
Price:
negotiable denpend on QTY
Packaging Details:
Blister box+Carton
Delivery Time:
5-9 working days depends on QTY
Payment Terms:
Western Union, T/T, MoneyGram/Paypal
Supply Ability:
1000PCS/Day

Product Description

16 Ports Fiber Optic Termination Box Model No.: FTKS-1805-16D
Product Overview

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Applications
  • Telecommunication subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
Product Features
  • Total enclosed structure, be in nice shape
  • Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, UV resistant, protection level up to IP65
  • Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type
  • SC/LC/PLC adaptor installation, easy maintenance
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
Product Specifications
16 Ports Fiber Optic Termination Box Model No.: FTKS-1805-16D 0

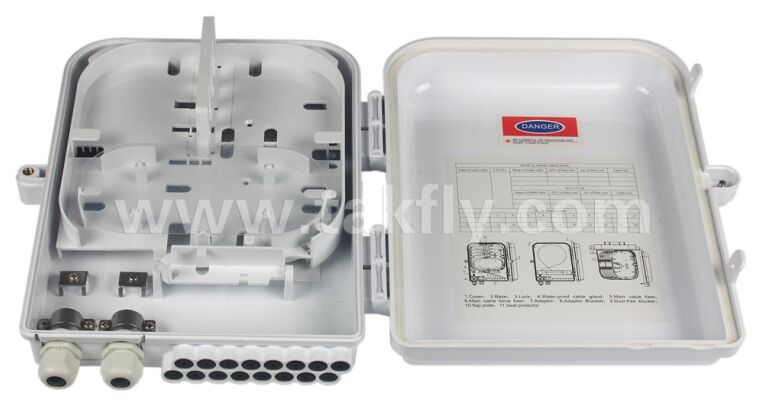

Product Images
16 Ports Fiber Optic Termination Box Model No.: FTKS-1805-16D 1
Configuration Table
16 Ports Fiber Optic Termination Box Model No.: FTKS-1805-16D 2
Why Choose TAKFLY
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experience
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?

A1: Please let us know your email or contacts from website directly for our catalogue and price list.

Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods.

Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q4: Can I visit you?

A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment.

Q5: What if there is quality problem when we get the goods?

A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future.

Q6: What is your terms of packing?

A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers.

Q7: What is your terms of payment?

A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q8: What is your terms of delivery?

A8: EXW, FOB, CFR, CIF, DDU.

Q9: How about your delivery time?

A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q10: Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings.
