Fiber Optic, Pre-Terminated Outlet Kit (PTO)
Product Summary
Fiber Optic, Pre-Terminated Outlet Kit (PTO) Product Overview The Pre-Terminated Outlet Kit (PTO) is engineered for rapid and straightforward installation in Fiber to the Home (FTTH) and Fiber to the Business (FTTB) deployments. This comprehensive kit includes a low-profile fiber optic outlet box ...
Product Custom Attributes
Product Name:
Fiber Optic, Pre-Terminated Outlet Kit (PTO)
Fiber Type:
G657A2
Mode Field Diameter:
1310/1550
Cladding Diameter:
125.0±0.7
Coating Diameter:
242 ± 7
Attenuation Coefficient:
<=0.35
Proof Stress Level:
≥100
Optical Fiber Fiber Count:
1/2/4Natural Color/Red Blue Green Yellow
Subunit Material:
LSZH
Strength Member Material:
Aramid Yarn
Fiber Brand:
Corning, YOFC, OFS, Draka
Highlight:
pre-terminated fiber optic outlet kit
,fiber optic termination box
,PTO fiber optic kit
Basic Properties
Place of Origin:
China, Shenzhen
Brand Name:
DF/OEM/Nuetral
Certification:
CE/ROHS/REACH/ISO9001/ISO14001
Model Number:
TK-PC-48F-SC-OS2-50M
Trading Properties
Minimum Order Quantity:
negotiable
Price:
negotiable denpend on QTY
Packaging Details:
Blister box+Carton
Delivery Time:
5-9 working days depends on QTY
Payment Terms:
Western Union, T/T, MoneyGram/Paypal
Supply Ability:
1000PCS/Day
Product Description
Fiber Optic, Pre-Terminated Outlet Kit (PTO)
Product Overview

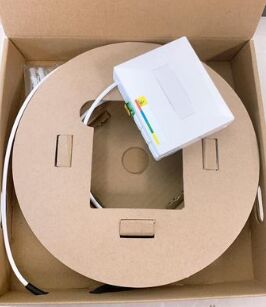

The Pre-Terminated Outlet Kit (PTO) is engineered for rapid and straightforward installation in Fiber to the Home (FTTH) and Fiber to the Business (FTTB) deployments. This comprehensive kit includes a low-profile fiber optic outlet box pre-loaded with adapters and a pre-terminated cable, conveniently packaged with a cable spool inside a protective carton.
With the PTO system, installing the final drop cable and fiber optic outlet becomes an exceptionally simple and efficient process. Installers can quickly remove the spool-loaded cable from the carton and mount the pre-terminated outlet directly to the wall using screws, without needing to open the outlet and disturb the internal fiber terminations. Alternatively, the PTO can be easily snapped onto a standard DIN rail.
PTO installation eliminates the requirement for specialized tools or technical expertise, removing the need for on-site termination or splicing. This results in significant reductions in installation time, cost, and failure rates per customer deployment.
Product Features
- SC or LC connectors with shuttered adapters
- Available in UPC and APC end face finishes
- Singlemode G657A2 fiber (others available upon request)
- Fast tool-less installation
- 4mm indoor LSZH cable (others available upon request)
- Multiple cable length options
- 1, 2, or 4 fiber configurations
- Wide operating temperature range
- RoHS compliant
- Optical cable meets CPR Dca compliance standards
Product Specifications
| Item | Unit | Specification |
|---|---|---|
| G.657A2 Mode field diameter | 1310nm | 8.6 ± 0.4 mm |
| G.657A2 Mode field diameter | 1550nm | 9.6 ± 0.5 mm |
| Cladding diameter | mm | 125.0 ± 0.7 |
| Cladding non-circularity | % | ≤ 0.8 |
| Core concentricity error | mm | ≤ 0.5 |
| Coating diameter | mm | 242 ± 7 |
| Coating/cladding concentricity error | mm | ≤ 12 |
| Cable cut-off wavelength | nm | ≤ 1260 |
| Attenuation Coefficient | 1310nm | ≤ 0.35 dB/km |
| Attenuation Coefficient | 1550nm | ≤ 0.21 dB/km |
| Macro-bend loss (1 turn, 10mm radius) | 1550nm | ≤ 0.75 dB/km |
| Macro-bend loss (1 turn, 10mm radius) | 1625nm | ≤ 1.5 dB/km |
| Proof stress level | kpsi | ≥ 100 |
Cable Structure
| Items | Descriptions | 1 Fiber | 2 Fiber | 4 Fiber |
|---|---|---|---|---|
| Optical Fiber | Fiber count | 1 | 2 | 4 |
| Optical Fiber | Color | Natural color | Red Blue | Green Yellow |
| Subunit | Color | Red | Red / Blue | Red |
| Subunit | Material | LSZH | ||
| Subunit | Diameter | 1.0mm Micro cluster fiber | 1.1mm Micro cluster fiber | 1.1mm Micro cluster fiber |
| Strength Member | Material | Aramid yarn | ||
| Sheath | Material | LSZH Anti-UV | ||
| Sheath | Color | White | ||
| Sheath | Diameter | 4.0±0.2mm | ||
Product Images
Mechanical and Environmental Characteristics
| Items | Descriptions |
|---|---|
| Tensile Strength | Short-term: 200N, Long-term: 100N |
| Crush Resistance | Short-term: 400N/100mm, Long-term: 200N/100mm |
| Bending Radius | Dynamic: ≥20D, Static: ≥10D |
| Temperature Range | -20℃ to +70℃ |
Technical Data for Outlet
| Description | Value |
|---|---|
| Dimensions (H x W x D) | 83 x 100 x 30 mm |
| Adapter type | SC simplex, shuttered |
| Fiber capacity | 4 fiber |
| Connector IL | 0.30 dB |
| Connector RL | 60 dB (APC), 50 dB (UPC) |
Why Choose TAKFLY
- Over 25 years of manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- 30+ sets of Testing Machines including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Active participation in major industry exhibitions including OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, and Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after completion of every individual process
- Full inspection of production half-done stages
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available according to customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing improvements for future production.
Q6: What is your terms of packing?
A6: Standard packaging includes blister boxes and cartons. We also accept custom packaging specifications from customers.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: Available delivery terms include EXW, FOB, CFR, CIF, DDU.
Q9: How about your delivery time?
A9: Generally, delivery takes 5-7 working days after receiving advance payment. Specific timing depends on product types and order quantities.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
