MT-Mini Multicore Fiber Optic Patch Cord Return Loss of MM/PC 20dB/SM/APC 60dB for Networking
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Takfly/OEM |
Certification: | CE, ISO, RoHS, GS |
Model Number: | MPO/MTP Patch cord |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | US $9.88-US $19.88/ Pcs |
Packaging Details: | PP Bag Then in Carton |
Delivery Time: | 3-7working day |
Payment Terms: | L/C,T/T,Western Union,Paypal |
Supply Ability: | 50000pcs/Month |
Detail Information |
|||
Core: | Multicore | Connector A: | SC |
---|---|---|---|
Connector B: | MPO /MTP | Fiber Mode: | 50/125um |
Cable Diameter: | 0.9/2.0/3.0 | Polish Type: | PC/APC |
Return Loss: | MM/PC:20dB/SM/APC:60dB | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
Outer Sheath Material: | PVC/LSZH | Bending Radius Static/Dynamic: | 10d/20d |
HS Code: | 854470000 | Gender: | Male/Female |
Highlight: | 20dB Fiber Optic Patch Cord,SM/APC Fiber Optic Patch Cord,MM/PC Fiber Optic Patch Cord |
Product Description

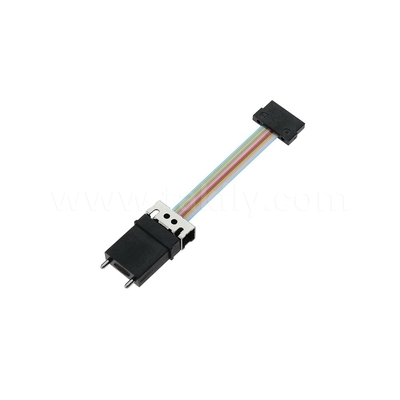

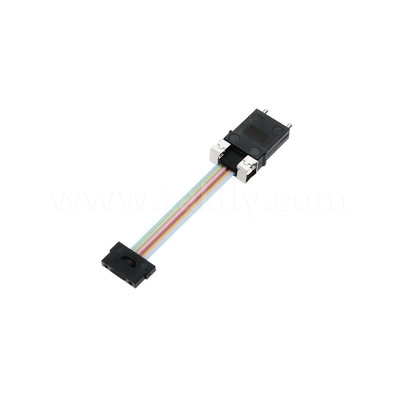

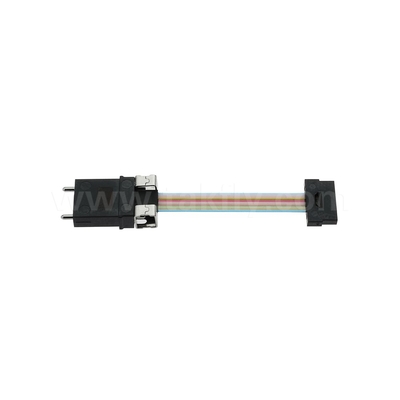

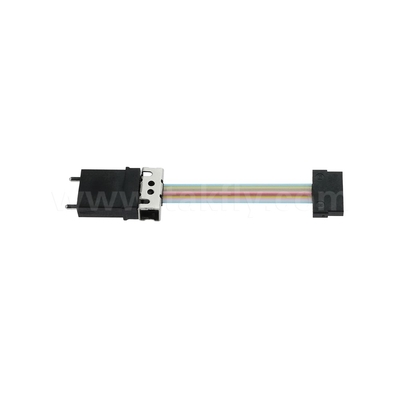

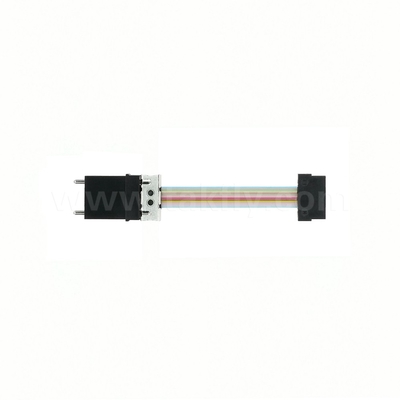

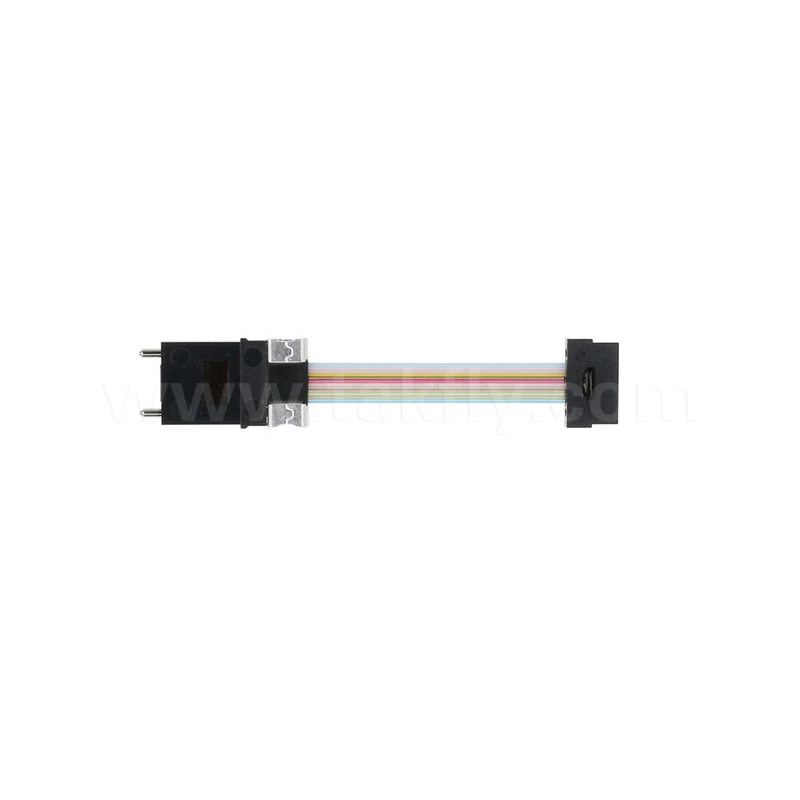

MT-Mini MT Fiber Optic Patch Cord
The MT-Mini MT fiber optic jumpers is designed for a type of parallel optical technology module (QSFP), connecting the internal optical lens and the external port, fulfilling the signal transmission requirements of the optical module. MT cables are stable, high- performance, and compact fiber optic transmission devices. TAKFLY offers a full range of MT fiber optic jumpers with customization options, suitable for deployment in QSFP, QSFP+,QSFP28, 100G PSM4,QSFP-dd, Micro QSFP,OSFP,CXP, CFP, CDFP, and any parallel optical modules, supporting various network types.
Here, we will provide a detailed introduction to the features and applications of MT-Mini MT fiber optic jumpers.
1. High integration: The MT-Mini MT fiber optic patch cord features a compact design, smallsize, and light weight, making it easy to carry and install.
2. Excellent transmission performance: use high-quality fiber and advanced connection technology to ensure stable and reliable signal transmission.
3.The MT-Mini MT fiber optic jumpers provided by takfly can meet the standards of GR-1435-CORE and RoHS.
4. Strong compatibility: MT-Mini MT fiber optic jumpers support multiple fiber interface standards and are compatible with mainstream devices in the market.
5.Convenient operation: The simple structure design makes the installation process very convenient, reducing maintenance costs and time.
What is MT Ferrule and why is there a MINI MT Ferrule?
- MT Ferrule, also known as Mechanical Transfer Ferrule, is a crucial component of fiber optic connectors.In the field of fiber optic communication, MT Ferrule plays an essential role.
- It is mainly used in communication networks, responsible for achieving physical connections and signal transmission between fibers.
- Due internal connection space in some optical modules, conventional MT ferrule volumes cannot satisfy the tiny spaces inside the modules.
- In response to this need for ultra-compact connectors,TAKFLY has introduced MINI MT ferrule with a smaller volume, more than half the size of the conventional MT ferrule.lt boasts high stability and strong reliability, effectively addressing the issue of connecting within the limited spaces inside optical modules.
MT Ferrule draws attention due to its features:
1. High performance: Low insertion loss and high return loss for better signal transmission.
2. Strong compatibility: Compatibility with various fiber connectors and easy interchangeability.
3.Good stability: High-quality materials and exquisite craftsmanship ensure connection stability.
4. Easy operation: Simple structure for hassle-free installation and lower maintenance costs.
5. Rich in variety: In various types, such as standard MT, MINI MT, and SMALL MT non-standard, etc., catering to the needs of different application scenarios.
The Mini MT fiber optic connector features a compact size, making it more suitable for installation in limited spaces than standard MT connectors.lt offers high performance, strong compatibility, and good stability, making it an ideal choice for modern communication equipment.
In conclusion, the MT Ferule extensively employed in fiber optic communication for its exceptional performance, outstanding compatibility, and reliable stability.The MINI MT Ferrule enhances aspects like size and performance,thus offering greater convenience and potential to the communication.
Application
1.Communication network: MT-Mini MT fiber optic jumpers can be used for connecting fiber distribution frames and fiber test instruments,
achieving high-speed and stable data transmission.
2. Data center: MT-Mini MT fiber optic jumpers can be used for connecting servers, storage devices, network devices, etc. in data centers, meeting the needs of high-performance computing, big data, cloud computing, military applications, and other scenarios.
3. Optical module: Choose jumpers that match the transmission rate and distance of the optical module to ensure effective transmission and meet the connection requirements within the limited space of the optical module.
4.Industrial automation: MT-Mini MT fiber optic jumpers can be used for robot control, sensor signal transmission, etc. in the field of industrial automation, featuring high stability and anti-interference ability.
5. Medical equipment: MT-Mini MT fiber optic jumpers have a good application prospect in medical equipment, such as endoscopes, laser therapy machines, etc., for transmitting high-definition images and high-speed data.
In summary, MT connectors, with their high-performance, compatibility, and stability, are widely used in the field of fiber optic communication.
The MINI MT connector further optimizes size and performance, bringing more convenience and possibilities to the communication industry.
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1. send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
11.what is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry, It's honored to be your professional product assistant.^^
