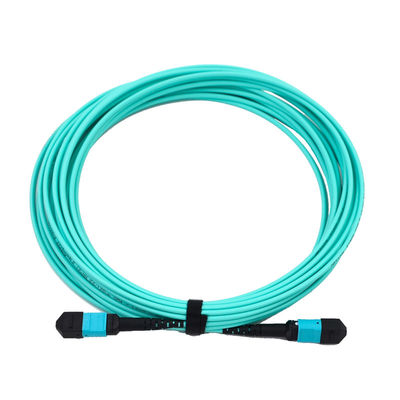

12/24/48/96/144 cores LC SC FC MPO MTP Trunk Cable Jumper Fiber Optic Patchcord

12/24/48/96/144 cores LC SC FC MPO MTP Trunk Cable Jumper Fiber Optic Patchcord

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, GS
Model Number: MPO/MTP Patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US $9.88-US $19.88/ Pcs
Packaging Details: PP Bag Then in Carton
Delivery Time: 3-7working day
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 50000pcs/Month
Get Best Price Contact Now

Detail Information

Core: Multicore Connector A: SC
Connector B: MPO /MTP Fiber Mode: 50/125um
Cable Diameter: 0.9/2.0/3.0 Polish Type: PC/APC
Return Loss: MM/PC:20dB/SM/APC:60dB Insertion Loss: 0.35dB Max (0.15dB Typ.)
Outer Sheath Material: PVC/LSZH Bending Radius Static/Dynamic: 10d/20d
HS Code: 854470000 Gender: Male/Female
Highlight:

MPO MTP Fiber Optic Patchcord

,

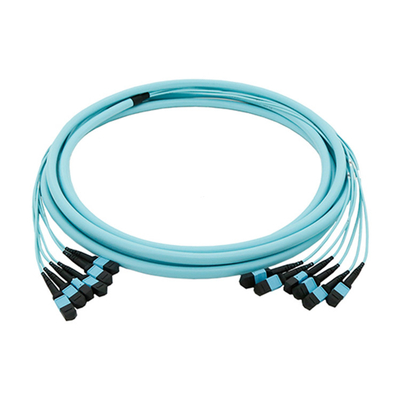

MPO MTP Trunk Cable

Product Description

12/24/48/96/144 cores LC SC FC MPO MTP Trunk Cable Jumper Fiber Optic Patchcord 012/24/48/96/144 cores LC SC FC MPO MTP Trunk Cable Jumper Fiber Optic Patchcord 1

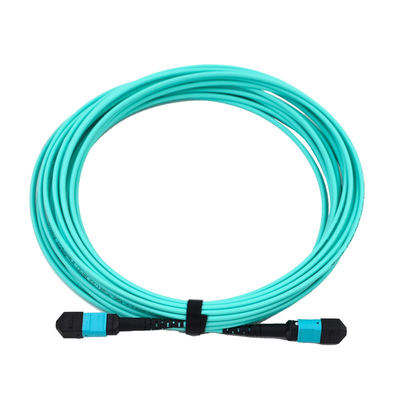

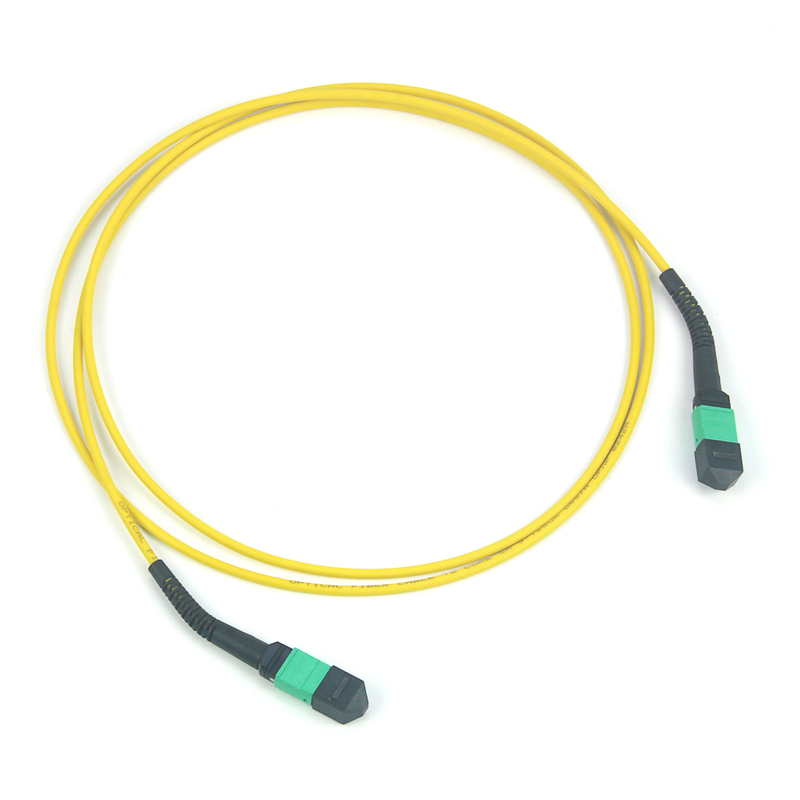

MPO-MPO (MTP-MTP)

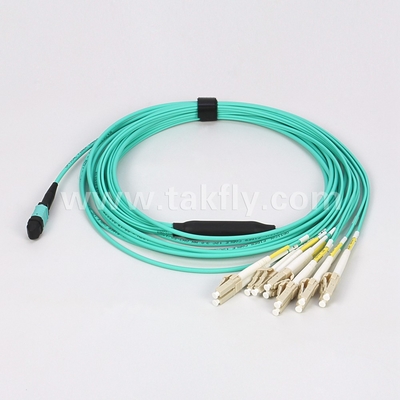

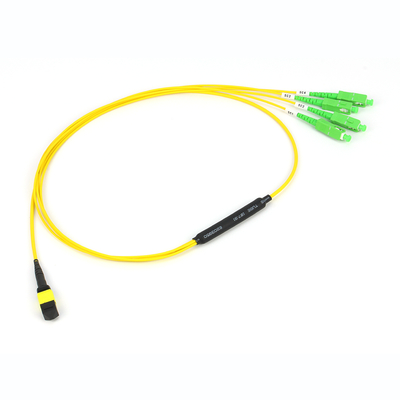

Fan-out

12/24/48/96/144 cores LC SC FC MPO MTP Trunk Cable Jumper Fiber Optic Patchcord 2


12/24/48/96/144 cores LC SC FC MPO MTP Trunk Cable Jumper Fiber Optic Patchcord 3


Applications

  • Asynchronous Transmission Mode(ATM)
  • Gigabit Ethernet
  • Active Deviced/Transceiver Interface
  • CATV, Video and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnect between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections


Features

  • Precision molded MT ferrule
  • High precision guide pins for exact alignment
  • Compact design, up to 4,8, 12,24 fibers
  • IEC 61754-7 Compliant
  • EIA/TIA-604-5 Compliant



Specifications



Item

LC ,SC ,ST ,FC.......

MPO/MTP

End face type

PC ,UPC and APC

PC and APC

Fiber type

SM(G652,G655 ,G657);MM(OM1-OM5)

Core number

12 ,24

Cable Diameter

0.9 ,2.0 ,3.0

Mini Round cable:Max4.5mm

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB)

 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)



Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength

(nm)

SM:1310/1550

MM:850/1300

Repeatability

 0.1dB

Durability

 0.2dB

Interchangeability

 0.2dB

Operating

Temperature

-20~70

Storage

Temperature

-40~80

Outer Sheath

Material

PVC ,LSZH

Bending radius

(Static/Dynamic)

10D/20D

Length

Customized

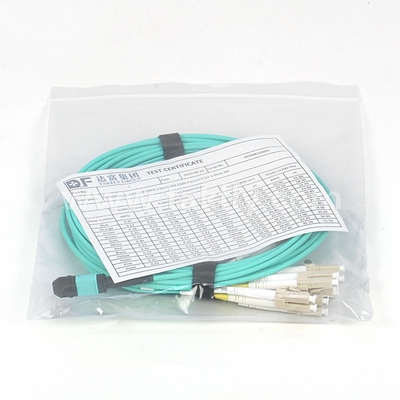

12/24/48/96/144 cores LC SC FC MPO MTP Trunk Cable Jumper Fiber Optic Patchcord 4

How to order Optical fiber patch cord?

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8. MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
9.
Insertion/ Return Loss:Standard/Low Loss
10. Type:Pigtail/Patch Cord/LGX Box/Patch Panel


FQA :

1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.

2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.

3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.

We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.

We have competitive shipping forwarders. For more solutions, you can feel free to contact us.

4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.

All the products are 100% test before delivery.

5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.

6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.

7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.

8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.

9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.

10. Q: How can I order?
A:1. send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.

2. We will offer our quotation with lead time.

3. After the quotation confirmed, we will send a PI with our bank account.

4. Production will be arranged after the payment received.

5. Confirm the consignee with you before we deliver it.

6. The tracking number will be provided after the delivery.

11.what is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
