ODF-RS48B Fiber Optic Patch Panel SC DX for Fiber Distribution and Management in Tele Networks
Product Details:
| Place of Origin: | SHENZHEN, China |
| Brand Name: | Takfly/OEM/Neutral |
| Certification: | CE/ROHS/Reach |
| Model Number: | DF-ODF-RS48B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10Set |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Carton and Pallet |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 10~15 working days |
|
Detail Information |
|||
| Heigh: | 1U | Port: | 48 |
|---|---|---|---|
| Interface: | SC | Cores: | 48 |
| Application: | FTTH/FTTB/Telecom/Network/LAN/WAN/CATV/Data Center | Weight (kg):: | 4.2 |
| Color: | Black/Grey/Customized | Dimension (cm):: | 45 X 32 X 4.45 |
| Highlight: | Tele Networks Fiber Optic Patch Panel,SC DX Fiber Optic Patch Panel,Distribution Fiber Optic Patch Panel |
||
Product Description
Details:

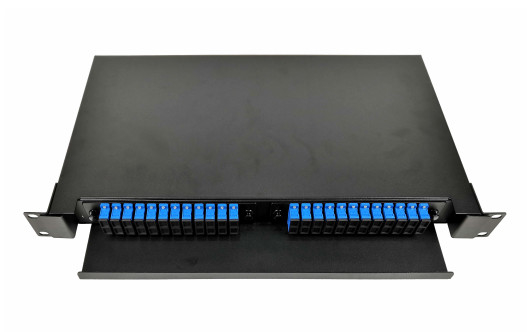

Slidable rack-mount fiber optic distribution frame is with the drawer for splicing, easy to withdraw the fibers
when testing and distributing. It has aluminum sliding fittings with self-locking functions prevent the drawer
from falling when moved.
ODF-RS48B is with 19-inch rack for SC DX adapters and suitable for ribbon and single fibers. Its slide out
drawer is for easy cable management.
Features:
Dimension (cm): 45x 32x4.45
Height: 1U
Weight (kg): 4.2
Capacity: 48 cores
Compact design for space saving
Various panel plate to fit different adapter interface
Standard size, light weight and reasonable structure
Application:
-
Telecommunications subscriber loop
-
Fiber to the home (FTTH)
-
LAN/WAN
-
CATV
Fiber Optic Patch Panel Specification:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
Ordering Information
ODF﹣R S 12
① ② ③ ④
① Name: “ODF”: optic distribution frame
② ③Type: “R”: rack-mount type; “S”: slidable type
④ Fiber quantity: “12”: 12 cores
Services
- We provide professional offer, detailed products test report and related specifications.
- We provide professional technology support to meet the requirements of customers.
- Within 12 hours of the corresponding customer inquiry,we will promptly get in touch with customers.
- We supply free samples if necessary.
- We supply ODM/OEM products & services
Factory
Why choose TAKFLY--- Advantages as follows:
Professional manufacturer:
- More than 24 years manufacturing experience in Fiber optic products-one stop purcharsing.
- More than 450 assembly workers with 3 years experienced;
- More than 26 R&D Engineers;
- 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
- After-sales Services: Available for 24 hours.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
If you're interested in our products or have any doubt, why not send me inquiry at once?
