• 10Gbps 1310nm MM 220M SFP+ Optical Transceiver Duplex LC Connector
10Gbps 1310nm MM 220M SFP+ Optical Transceiver Duplex LC Connector

10Gbps 1310nm MM 220M SFP+ Optical Transceiver Duplex LC Connector

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly
Certification: CE,ROHS,FCC,REACH,ISO9001,ISO14001
Model Number: TK-1392-3LCD02

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Can be negotiated
Packaging Details: blister box + spone + carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability: 3000pcs/month
Get Best Price Contact Now

Detail Information

Speed: 10Gbps Transmission Distance: 220M
Compatible Switch Brand: CISCO/HP/Huawei/H3C/Juniper/ZTE/........ Wavelength: Tx1270/1330nm / Rx1330/1270nm
Fiber Port: LC Fiber Type: SM
Highlight:

220M SFP+ Optical Transceiver

,

10Gbps SFP+ Optical Transceiver

,

1310nm SFP+ Optical Transceiver

Product Description



Description

     This 1310 nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 220m.

    The SFP+ m module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.



Features

     Supports 9.95 to 10.3Gbps bit rates

     Transmission distance up to 220m (OM1 fiber)

     Hot Pluggable SFP+ footprint

     1310nm FP transmitter, PIN photo-detector

     Digital Status monitoring Interface

     Duplex LC connector

     RoHS compliant and Lead Free

     Metal enclosure for lower EMI

     Single 3.3V power supply

     Power dissipation < 1W

     Operating case temperature: 0 to 70℃

     Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431 , SFF-8432 and SFF-8472



Applications

     10GBASE-LRM 10G Ethernet

     Legacy FDDI multimode links

     Compliant with SFF-8472 SFP+ MSA.

     Compliant to SFP+ SFF-8431 and SFF-8432.

     Compliant to 802.3ae 10GBASE-LRM.

     RoHS Compliant.

The TK-1392-3LCD02 SFP+ transceiver is a linear-interface transceiver that enables, in

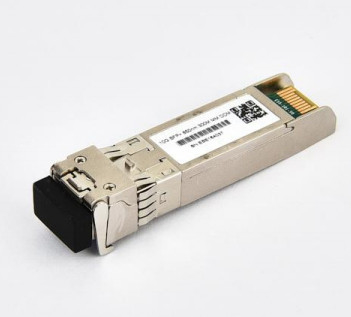

10Gbps 1310nm MM 220M SFP+ Optical Transceiver Duplex LC Connector 0






Package Dimension


10Gbps 1310nm MM 220M SFP+ Optical Transceiver Duplex LC Connector 1




FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.



Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.



Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.



Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.



Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
