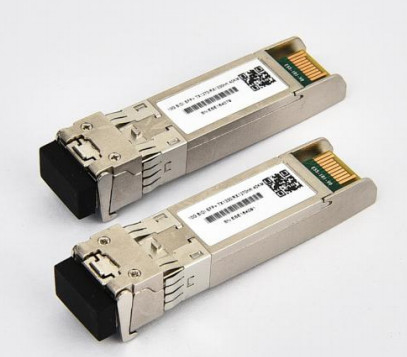

• TK-B23(32)92-3LCD20 10Gbps SFP+ Bi-Directional Transceiver, 20KM Reach Tx1270/1330nm / Rx1330/1270 nm
TK-B23(32)92-3LCD20 10Gbps SFP+ Bi-Directional Transceiver, 20KM Reach Tx1270/1330nm / Rx1330/1270 nm

TK-B23(32)92-3LCD20 10Gbps SFP+ Bi-Directional Transceiver, 20KM Reach Tx1270/1330nm / Rx1330/1270 nm

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly
Certification: CE,ROHS,FCC,REACH,ISO9001,ISO14001
Model Number: TK-B23(32)92-3LCD20

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Can be negotiated
Packaging Details: blister box + spone + carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability: 3000pcs/month
Get Best Price Contact Now

Detail Information

Speed: 10Gbps Transmission Distance: 20KM
Compatible Switch Brand: CISCO/HP/Huawei/H3C/Juniper/ZTE/........ Wavelength: Tx1270/1330nm / Rx1330/1270 Nm
Fiber Port: LC Fiber Type: SM
Highlight:

TK-B23(32)92-3LCD20 SFP+ Bi-Directional Transceiver

,

10Gbps SFP+ Bi-Directional Transceiver

,

20KM Reach SFP+ Bi-Directional Transceiver

Product Description



Description

    The TK-B23(32)92-3LCD10series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
    The TK-B23(32)92-3LCD10module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
    The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.



Features

     Supports 9.95Gb/s to 10.3Gb/s data rates

     Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

     Single 3.3V Supply

     Up to 10km on 9/125um SMF

     A:1270nm DFB Laser transmitter,1330nm receiver

       B:1330nm DFB Laser transmitter,1270nm receiver

     Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW

     SFP+ MSA SFF-8431 Compliant

     Digital Diagnostic SFF-8472 Compliant

     RoHS compliant and Lead Free

     Operating case temperature:

        Standard: 0 ~ 70 °C



Applications



      10GBASE-LR at 10.3125Gbps

      10GBASE-LW at 9.953Gbps

      Other Optical Links





Standard

     SFP+ MSA Compliant

     SFF-8472 reversion 9.5 compliant

     IEEE802.3-2005 compliant

     Telcordia GR-468-CORE compliant

     FCC 47 CFR Part 15,Class B compliant

     FDA 21 CFR 1040.10 and 1040.11,class1 compliant

     RoHS compliant



Optical Characteristics (T case = -5 to70℃, VCC = 3.14 to 3.46 Volts)


TK-B23(32)92-3LCD20 10Gbps SFP+ Bi-Directional Transceiver, 20KM Reach Tx1270/1330nm / Rx1330/1270 nm 0
TK-B23(32)92-3LCD20 10Gbps SFP+ Bi-Directional Transceiver, 20KM Reach Tx1270/1330nm / Rx1330/1270 nm 1




Package Dimension


TK-B23(32)92-3LCD20 10Gbps SFP+ Bi-Directional Transceiver, 20KM Reach Tx1270/1330nm / Rx1330/1270 nm 2
