• 10GBASE-SR 10G SFP+ Optical Transceiver Module 850nm 300m DDM Duplex LC/UPC MMF Cisco Juniper Huawei Compatible
10GBASE-SR 10G SFP+ Optical Transceiver Module 850nm 300m DDM Duplex LC/UPC MMF Cisco Juniper Huawei Compatible

10GBASE-SR 10G SFP+ Optical Transceiver Module 850nm 300m DDM Duplex LC/UPC MMF Cisco Juniper Huawei Compatible

Product Details:

Place of Origin: Shenzhen China
Brand Name: Takfly/OEM
Certification: ISO9001, ISO14001, CE, REACH, ROHS, FCC
Model Number: SFP-10G-SR

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 5.32 USD/PIECE
Packaging Details: 10 pieces/box
Delivery Time: 2~3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per week
Get Best Price Contact Now

Detail Information

Form Factor: SFP+ Data Rate: 10G
Wavelength: 850nm Max. Cable Distance: 300m
Media: MMF Connector: Duplex LC
TX Power: -6~-1dBm Receiver Sensitivity: -10dBm
DDM/DOM: Supported Commercial Temperature Range: 0 To 70°C
Highlight:

300m Optical Transceiver Module

,

10GBASE-SR Optical Transceiver Module

,

10G SFP+ Optical Transceiver Module

Product Description

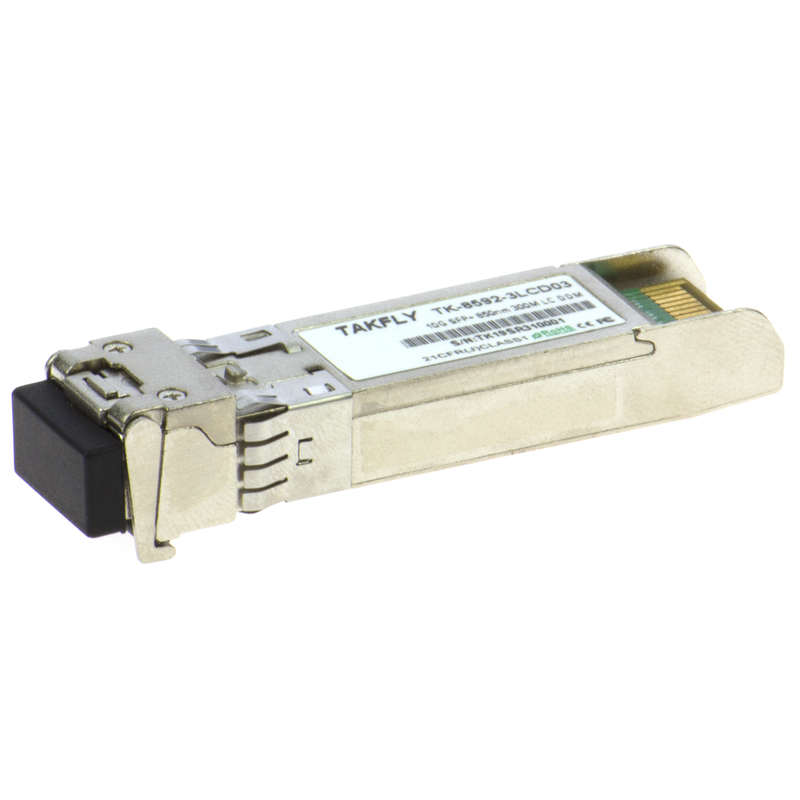

10GBASE-SR 10G SFP+ 850nm 300m DDM Duplex LC/UPC MMF Cisco Juniper Huawei compatible Optical Transceiver Module

This 850 nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125μm or 62.5/125μm multimode optical fiber.



Applications

  • 10GBASE-SR at 10.3125Gbps
  • 10GBASE-SW at 9.953Gbps
  • Other optical links

Features

  • Optical interface compliant to IEEE 802.3ae
  • Electrical interface compliant to SFF-8431
  • Hot Pluggable
  • 850nm VCSEL transmitter, PIN photo-detector
  • Maximum link length of 300m on 2000MHz/km MMF
  • Operating case temperature: 0 to 70 °C
  • Low power consumption
  • Maximum link length of 300m on 2000MHz/km MMF
  • All-metal housing for superior EMI performance
10GBASE-SR 10G SFP+ Optical Transceiver Module 850nm 300m DDM Duplex LC/UPC MMF Cisco Juniper Huawei Compatible 0
