Product Details:

Place of Origin: Shenzhen China
Brand Name: Takfly/OEM
Certification: ISO9001, ISO14001, CE, REACH, ROHS, FCC
Model Number: SFP-1G-BX-D80

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 8.64 USD/PIECE
Packaging Details: 10 pieces/box
Delivery Time: 2~3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per week
Get Best Price Contact Now

Detail Information

Form Factor: SFP Max. Data Rate: 1000Mbps
Wavelength: 1550nm-TX/1490nm-RX Max. Cable Distance: 80km
Media: SMF Connector: Simplex LC
TX Power: 0~5dBm Receiver Sensitivity: -26dBm
DDM/DOM: Supported Commercial Temperature Range: 0 To 70°C
Highlight:

80KM 1.25 G SFP Transceiver

,

BIDI 1.25 G SFP Transceiver

,

SMF 1.25 g sfp module

Product Description

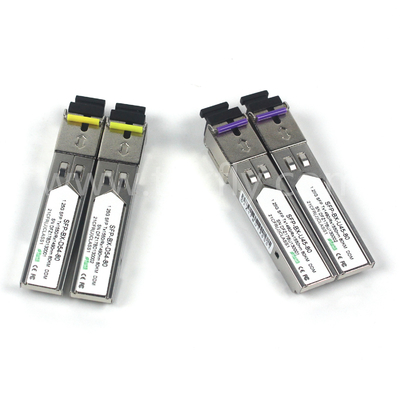

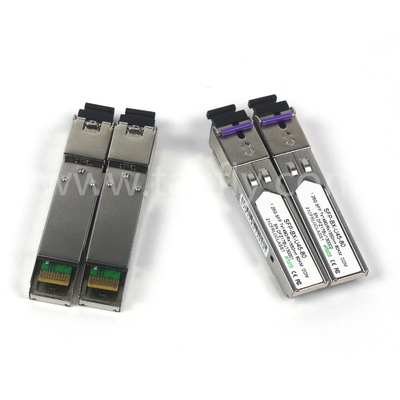

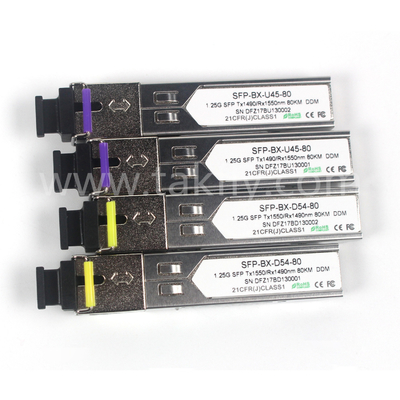

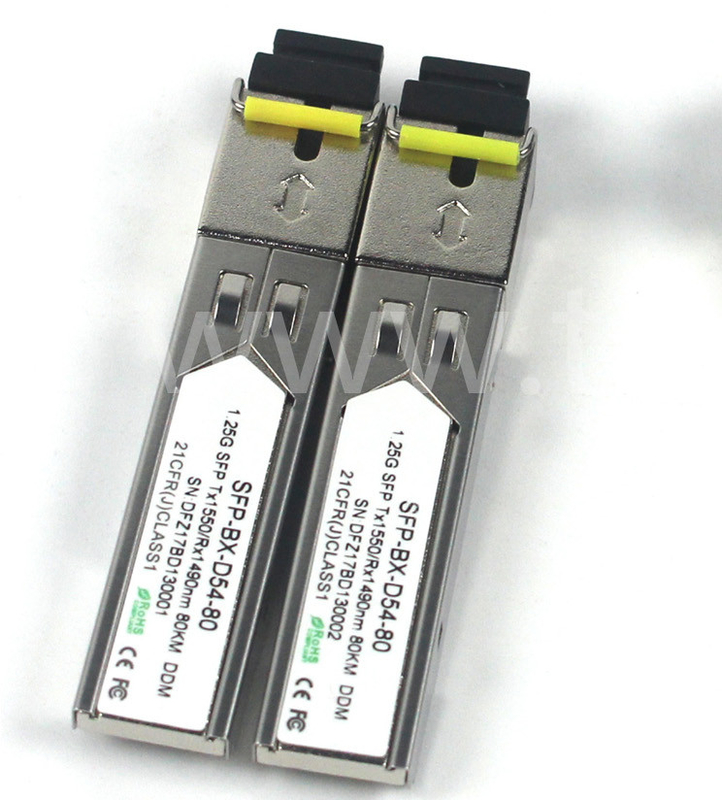

1.25G SFP BIDI Tx1550/Rx1490nm 80KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE



The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 80KM transmission distance with SMF.



The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.




Applications
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Features
  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • 1550nm DFB laser and PIN photodetector for 80KM transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with SONET OC-24-LR-1
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature range: 0 °C to +70 °C (Commercial), -40 °C to +85 °C (Industrial)
