2x1:24 WDM Filter PLC Splitter GPON CATV in a 1U 19Inc Rack Mount Patch Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/OEM/Neutral |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | TK-PLC-WDM2x1:24-CATV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | US$500 ~ US$700/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 7-15working days |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | T/T, Western Union, MoneyGram, Paypal, L/C |
|
Detail Information |
|||
| Channel: | 24 | Pass Band Wavelength Range (nm): | 1540~1560nm |
|---|---|---|---|
| Reflection Band1 Wavelength Range 1 (nm): | 1260 ~ 1360&1480~1500&1577~1620 | Reflection Band2 Wavelength Range 2 (nm): | 1260~1500&1577~1620 |
| Pass Channel Isolation (dB): | >30 | Max.Uniformity（dB）: | 1.5 |
| Return Loss (dB): | >55 | Storage Temperature (℃): | -40 ~+85 |
| Operating Temperature (℃): | -5 ~+75 | Package Dimension (mm): | 1U Rack Module |
| Highlight: | GPON WDM Filter PLC Splitter,CATV WDM Filter PLC Splitter |
||
Product Description
2x1:24 WDM Filter PLC Splitter GPON CATV in a 1U 19Inc Rack Mount Patch Panel
Takfly is a leading manufacturer of fiber optic products since 2000, with ISO9001 and ISO14001 certified, all of our products have been passed the CE, ROHS and Reach Test. We provide OEM and ODM service, especially the integrated WDM, MPO, PLC Splitter products, which is widely required by our clients, and believe we can provide you very good quality products and service.
Feature:
- Wide Wavelength Range
- Low Insertion Loss
- High Channel Isolation
- High stability and reliability
Applications:
- System Monitoring
- Transmitters and Fiber
- Fiber optical amplifier
Performance Specification:
| Parameter | SPEC | |
| 1*WDM | 24*WDM | |
| Pass Band Wavelength Range (nm) | 1540~1565 | 1540~1565 |
| Reflection Band1 Wavelength Range (nm) | 1260 ~ 1360&1480~1500&1577~1620 | 1260~1500&1577~1620 |
| Isolation(dB) | ＞40 | 30 |
| Operating Temperature (℃) | -5 ~+75 | |
| Storage Temperature (℃) | -40 ~+85 | |
| Package Dimension (mm) | 1U Rack Module | |
| PLC | ||
| Operating Wavelength(nm) | 1260 ~ 1650 | |
| Type(1*N) | 1*24 | |
| Max.Insertion Loss(dB) {without connector} | 15.8 | |
| Max.Uniformity(dB) | 1.5 | |
| Min.Return Loss(dB) | 55 | |

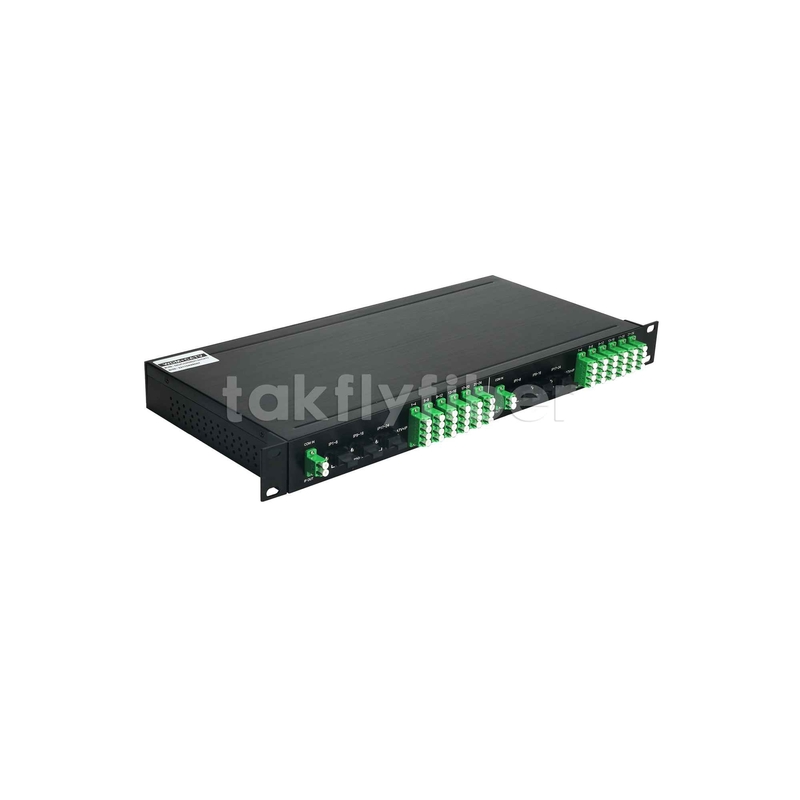

Product Picture:(24CH)
