1U 19inch Rack Mount WDM 1x72 CATV PLC Splitter for GPON Application
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/OEM/Neutral |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | TK-PLC-WDM-CATV-IP1x72TN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | US$500 ~ US$700/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-9working days |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | T/T, Western Union, MoneyGram, Paypal, L/C |
|
Detail Information |
|||
| Channel: | 72 | Pass Band Wavelength Range (nm): | 1540~1560nm |
|---|---|---|---|
| Reflection Band1 Wavelength Range 1 (nm): | 1260 ~ 1360 | Reflection Band2 Wavelength Range 2 (nm): | 1480~1500 |
| Pass Channel Reflect Channel Insertion Loss (dB): | ≤0.7 | Insertion Loss (dB): | ≤1.0 |
| Reflect Channel Isolation (dB): | > 15 | Pass Channel Isolation (dB): | >30 |
| Polarization Dependent Loss (dB): | <0.2 | Polarization Mode Dispersion (ps): | <0.1 |
| Directivity (dB): | >50 | Return Loss (dB): | >45 |
| Maximum Power Handling (mW): | 300mW | ||
| Highlight: | GPON Application WDM,1U 19inch Rack Mount WDM,1x72 CATV PLC Splitter |
||
Product Description
1U 19inch Rack Mount WDM 1x72 CATV PLC Splitter for GPON Application
A-B DWDM-16-M+D+Single Fiber+1%Monitoring+EXT+1625OTDR-19"-1U-LC/APC A-B , port for EDFA’s to separate the TX Signal and a Monitoring Port for the Signal that goes into the EDFA.
Feature:
- Wide Wavelength Range
- Low Insertion Loss
- High Channel Isolation
- High stability and reliability
Applications:
- System Monitoring
- Transmitters and Fiber
- Fiber optical amplifier
Performance Specification:
| Parameter | FWDM | |
| Pass Band Wavelength Range (nm) | 1540~1560 | |
| Reflection Band1 Wavelength Range 1 (nm) | 1260 ~ 1360 | |
| Reflection Band2 Wavelength Range 2 (nm) | 1480~1500 | |
| Insertion Loss (dB) | Reflect Channel | ≤0.7 |
| Pass Channel | ≤1.0 | |
| Channel Ripple dB) | <0.3 | |
| Isolation (dB) | Reflect Channel | > 15 |
| Pass Channel | >30 | |
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |
| Polarization Dependent Loss (dB) | <0.2 | |
| Polarization Mode Dispersion (ps) | <0.1 | |
| Directivity (dB) | >50 | |
| Return Loss (dB) | >45 | |
| Maximum Power Handling (mW) | 300 | |
| Operating Temperature (℃) | -5 ~+75 | |
| Storage Temperature (℃) | -40 ~+85 | |
| Package Dimension (mm) | 1U Rack Module | |
| PLC | ||
| Operating Wavelength(nm) | 1260 ~ 1650 | |
| Type(1*N) | 1*72(1*3+1*24) | |
| Max.Insertion Loss(dB) {without connector} | 22.1 | |
| Max.Uniformity(dB) | 2.0 | |
| Min.Return Loss(dB) | 55 | |

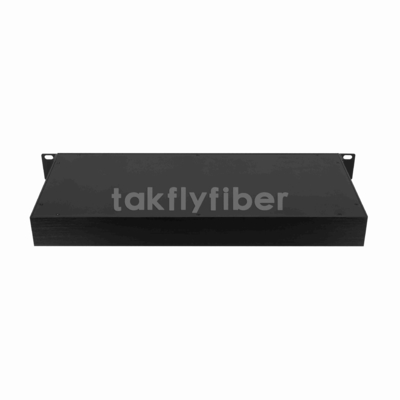

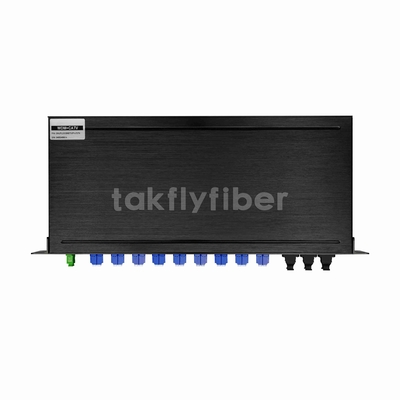

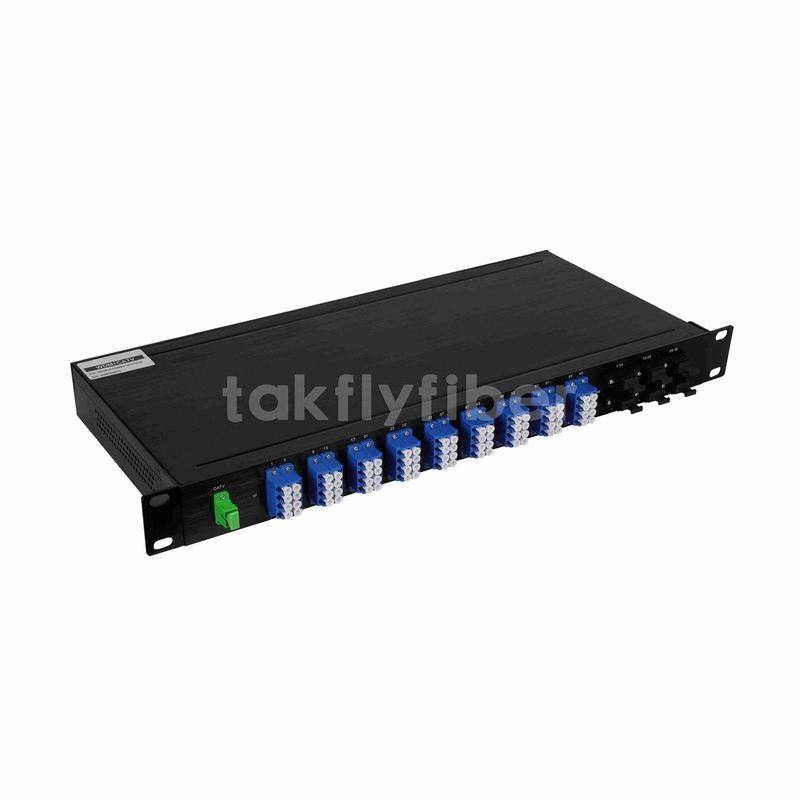

Product Picture:(72CH)
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once?
