16CH DWDM MUX DEMUX with Monitor and Extention Port 1625nm OTDR and EDFA

16CH DWDM MUX DEMUX with Monitor and Extention Port 1625nm OTDR and EDFA

Product Details:

Place of Origin: China
Brand Name: Takfly/OEM/Neutral
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: TK-DWDM-16CH-MD-M-E-1650

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: US$1000 ~ US$1600/PC
Packaging Details: spone + box + carton
Delivery Time: 3-9working days
Payment Terms: Western Union, T/T, MoneyGram/Paypal
Supply Ability: T/T, Western Union, MoneyGram, Paypal, L/C
Get Best Price Contact Now

Detail Information

Channel: 16 Wavelength: C20~C60
Dimension: 1U 19Inch Connector: LC
Operating Temperature: -5~65℃ Storage Temperature: -40~85℃
Fiber Type: SMF28e With 900um Loose Tube Fiber Operating Humidity: 5~95%RH
Storage Humidity: 5~95%RH Certificate: CE, ROHS, REACH, ISO9001, ISO14001
Output Channels: 16 Channel Spacing: 100GHz
Operating Band: C Band Insertion Loss: ≤5.0dB
Highlight:

Extention Port DWDM MUX DEMUX

,

16CH DWDM MUX DEMUX

,

1625nm DWDM MUX DEMUX

Product Description



16CH DWDM MUX DEMUX with Monitor and Extention Port 1625nm OTDR and EDFA





A-B DWDM-16-M+D+Single Fiber+1%Monitoring+EXT+1625OTDR-19"-1U-LC/APC A-B ,  port  for EDFA’s  to separate the TX Signal and a Monitoring Port for the Signal that goes into the EDFA.



Features
  • Low Insertion Loss
  • Wide pass band
  • High Channel Isolation
  • High Stability and reliability



Applications
  • Channel Add/Drop
  • DWDM Network
  • Fiber Optical Amplifier



Performance Specifications



Parameter 4 Channel 8 Channel 16 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength(nm) ITU 100 GHz Grid
Center wavelength Accuracy(nm) ±0.05
Channel Spacing (GHz) GHz) 100
Channel Passband (@-0.5dB bandwidth) (nm) ≥0.22
Insertion Loss ≤1.6 ≤2.5 ≤3.5
Channel Uniformity ≤0.6 ≤1.0 ≤1.5
Channel Ripple 0.3 0.3 0.3
Isolation Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Insertion Loss Temperature Sensitivity (dB/℃) ≤0.005
Wavelength Temperature Shifting℃) <0.002
Polarization Dependent Loss(dB) <0.1
Polarization Mode Dispersion(PS) <0.1
Directivity(dB) >50
Return Loss(dB) >45
Maximum Power Handling( mW) 500
Operating Temperature(℃) -5~+75
Storage Temperature(℃) -40~85



Package dimension(mm)

1. Package dimension(mm)

2. L140xW100xH15(9CH~18CH Module)

3. 19 1U Rack

Above specification are for device without connector





Order Information

Configuration Channel No. Channel



Pigtail Type

Fiber length Dimension (mm) Connector







M=Mux D=Demux



04=4 Channel 08=8 Channel 16= 16 Channel N=N Channel

……





C20= 1561.42nm C21= 1560.61nm

……





0=250um 1=900um 2=2.0mm 3=3.0mm





1= 1m

2= 1.5m 3=others



1= L100 x W80

xH10

2=L140xW100xH

15

3= 19 1U Rack



0=None

1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others







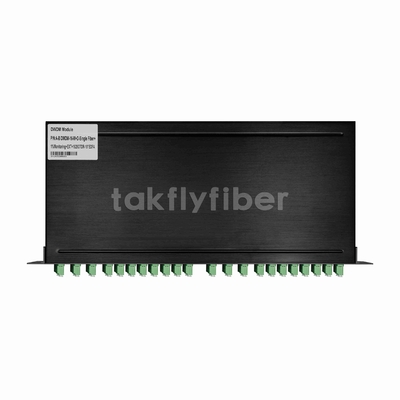

16CH DWDM MUX DEMUX with Monitor and Extention Port 1625nm OTDR and EDFA 0

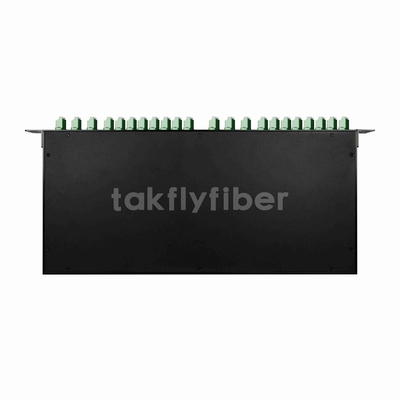

16CH DWDM MUX DEMUX with Monitor and Extention Port 1625nm OTDR and EDFA 1

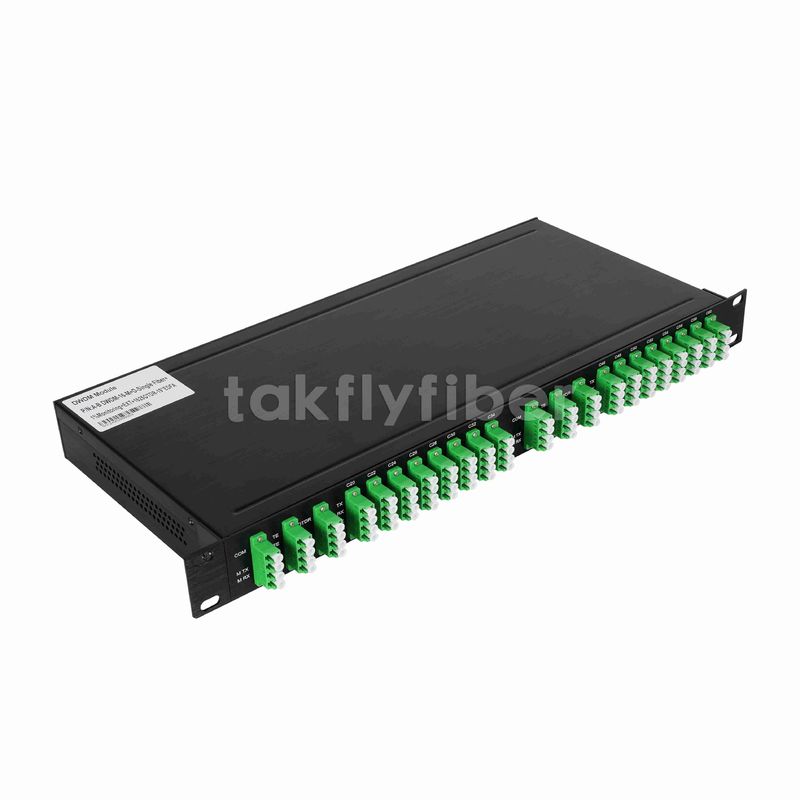

16CH DWDM MUX DEMUX with Monitor and Extention Port 1625nm OTDR and EDFA 2

16CH DWDM MUX DEMUX with Monitor and Extention Port 1625nm OTDR and EDFA 3
