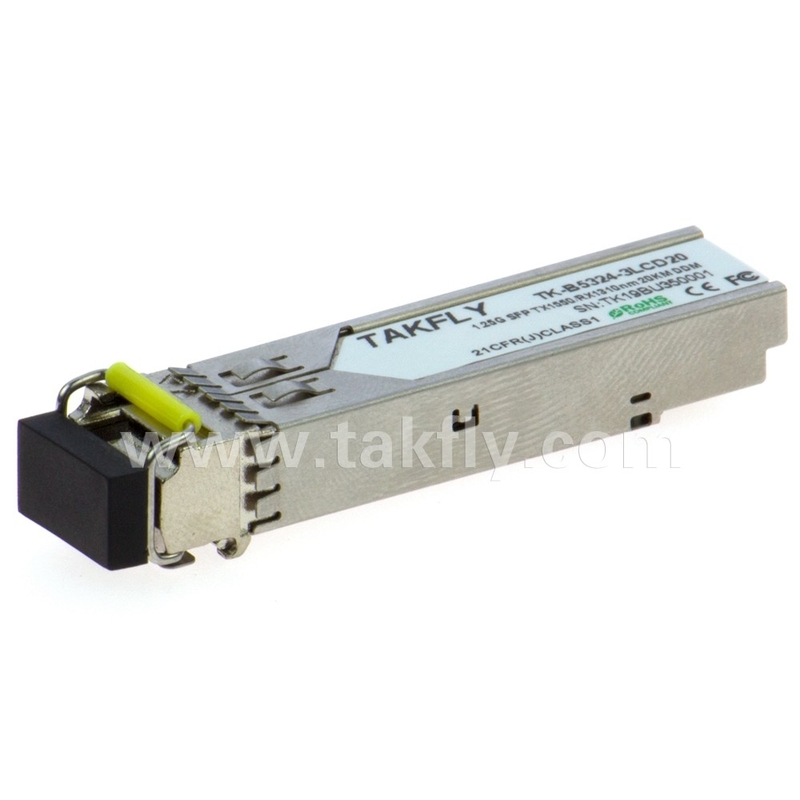

1.25G SFP BIDI Tx1550/Rx1310nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001, ISO14001, CE, REACH, ROHS, FCC |
| Model Number: | SFP-1G-BX-D20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 5.02 USD/PIECE |
| Packaging Details: | 10 pieces/box |
| Delivery Time: | 2~3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces per week |
|
Detail Information |
|||
| Form Factor: | SFP | Max. Data Rate: | 1000Mbps |
|---|---|---|---|
| Wavelength: | 1550nm-TX/1310nm-RX | Max. Cable Distance: | 20km |
| Media: | SMF | Connector: | Simplex LC |
| TX Power: | -9~-3dBm | Receiver Sensitivity: | -24dBm |
| DDM/DOM: | Supported | Commercial Temperature Range: | 0 To 70°C |
| Highlight: | LC SFP BIDI Optical Transceiver Module,1.25G SFP BIDI Optical Transceiver Module,20KM SFP BIDI Optical Transceiver Module |
||
Product Description
1.25G SFP BIDI Tx1550/Rx1310nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20KM transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Features
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1550nm DFB laser and PIN photodetector for 20KM transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature range: 0 °C to +70 °C (Commercial), -40 °C to +85 °C (Industrial)
