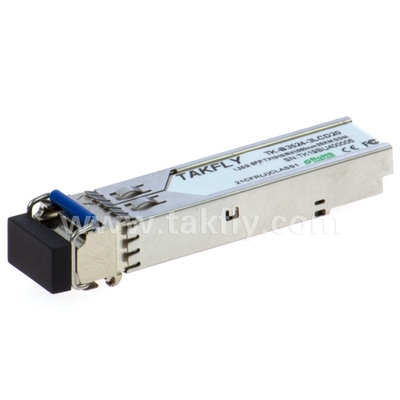

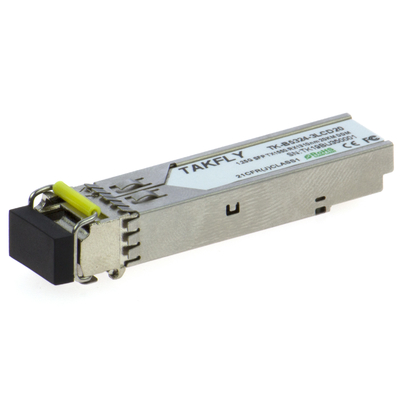

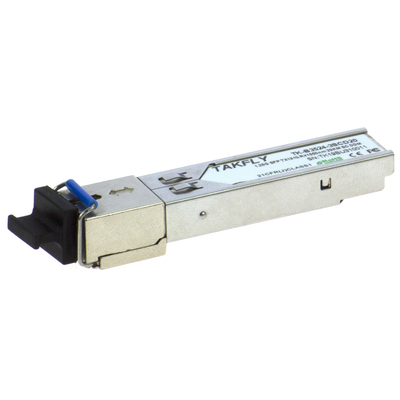

1.25G SFP BIDI Tx1310/Rx1550nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001, ISO14001, CE, REACH, ROHS, FCC |
| Model Number: | SFP-1G-BX-U20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 4.4 USD/PIECE |
| Packaging Details: | 10 pieces/box |
| Delivery Time: | 2~3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces per week |
|
Detail Information |
|||
| Form Factor: | SFP | Max. Data Rate: | 1000Mbps |
|---|---|---|---|
| Wavelength: | 1310nm-TX/1550nm-RX | Max. Cable Distance: | 20km |
| Media: | SMF | Connector: | Simplex LC |
| TX Power: | -9~-3dBm | Receiver Sensitivity: | -22dBm |
| DDM/DOM: | Supported | Commercial Temperature Range: | 0 To 70°C |
| Highlight: | 20KM Optical Transceiver Module,LC Connector Optical Transceiver Module,1.25G Optical Transceiver Module |
||
Product Description
1.25G SFP BIDI Tx1310/Rx1550nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20KM transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Features
Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photodetector for 20KM transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature range: 0 °C to +70 °C (Commercial), -40 °C to +85 °C (Industrial)
