• 1000BASE-T SFP Copper 100m RJ-45 CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
  • 1000BASE-T SFP Copper 100m RJ-45 CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
1000BASE-T SFP Copper 100m RJ-45 CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE

1000BASE-T SFP Copper 100m RJ-45 CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE

Product Details:

Place of Origin: Shenzhen China
Brand Name: Takfly/OEM
Certification: ISO9001, ISO14001, CE, REACH, ROHS, FCC
Model Number: SFP-GE-T

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 9.55 USD/PIECE
Packaging Details: 10 pieces/box
Delivery Time: 2~3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per week
Get Best Price Contact Now

Detail Information

Form Factor: SFP Max. Data Rate: 1000Mbps
Max. Cable Distance: 100m Media: Cat 5e/6/6a (UTP)
Connector: RJ45 Power Consumption: <1.05W
Commercial Temperature Range: 0 To 70°C Protocols: IEEE Std 802.3 And 802.3ab, SFP MSA Compliant
Highlight:

1000BASE-T SFP Optical Transceiver Module

,

100m Optical Transceiver Module

,

RJ-45 Optical Transceiver Module

Product Description

1000BASE-T SFP Copper 100m RJ-45 CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE

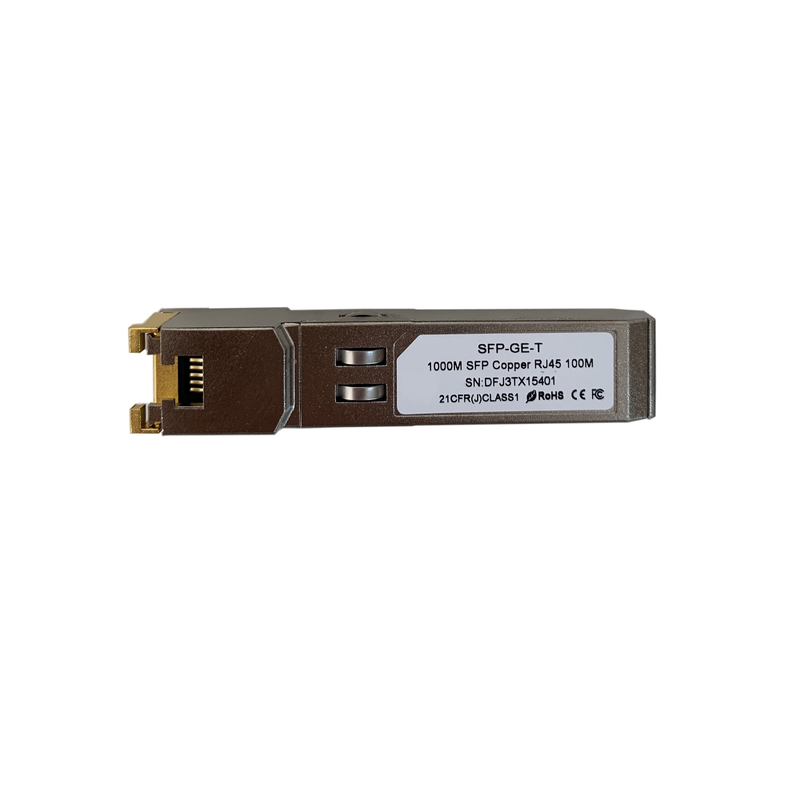

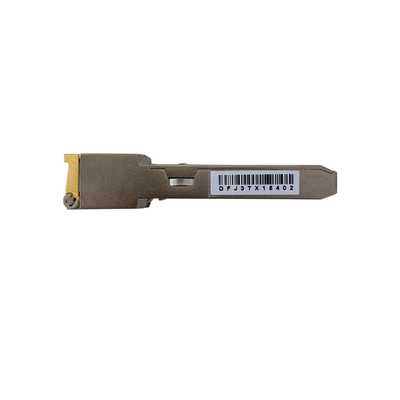

SFP-GE-T Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable.



The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol.



The physical IC can also be accessed via 2wire serial bus at address ACh.


Applications

  • 1.25 Gigabit Ethernet over Cat 5 cable

Features
  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • TX Disable and RX Los/without Los function
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05 W typical)
  • Compact RJ-45 connector assembly
  • Access to physical layer IC via 2-wire serial bus
  • 1000 BASE-T operation in host systems with SERDES interface
  • Operating case temperature range of 0°C to +70°C(Commercial)
  • -20°C to +85°C (Extend)
1000BASE-T SFP Copper 100m RJ-45 CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE 01000BASE-T SFP Copper 100m RJ-45 CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE 1
