• 1.25G SFP 1550nm 80KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE OPTICAL TRANSCEIVER MODULE with Receiver Sensitivity -26dBm
1.25G SFP 1550nm 80KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE OPTICAL TRANSCEIVER MODULE with Receiver Sensitivity -26dBm

1.25G SFP 1550nm 80KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE OPTICAL TRANSCEIVER MODULE with Receiver Sensitivity -26dBm

Product Details:

Place of Origin: Shenzhen China
Brand Name: Takfly/OEM
Certification: ISO9001, ISO14001, CE, REACH, ROHS, FCC
Model Number: SFP-GE-ZX

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 9.42 USD/PIECE
Packaging Details: 10 pieces/box
Delivery Time: 2~3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per week
Get Best Price Contact Now

Detail Information

Form Factor: SFP Max. Data Rate: 1.25Gbps
Wavelength: 1550nm Media: SMF
Connector: Duplex LC Max. Cable Distance: 80km
DDM/DOM: Supported Commercial Temperature Range: 0 To 70°C
TX Power: 0 ~ 5dBm Receiver Sensitivity: < -26dBm
Protocols: SFF-8472 MSA Compliant, IEEE 802.3ah-2004
Highlight:

1.25G SFP 1550nm

,

80KM SMF DDM LC SFP

,

1550nm SFP 1.25G

Product Description

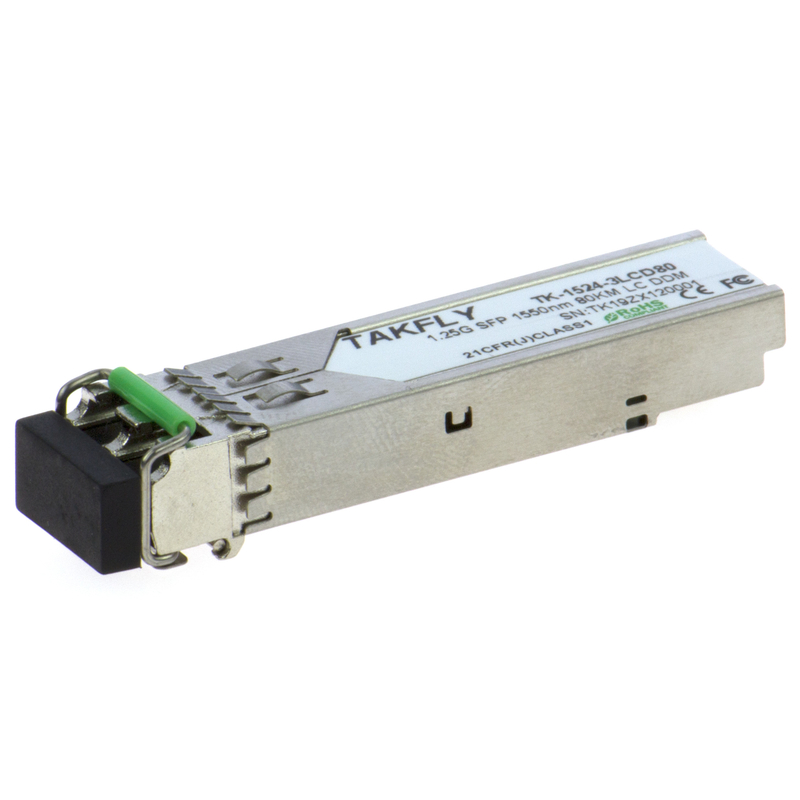

1.25G SFP 1550nm 80KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE



The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80KM transmission distance with SMF.


The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.


The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


Applications
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Features
  • Data-rate of 1.25Gbps operation
  • 1550nm DFB laser and PIN photodetector for 80KM transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with RoHS, Compatible with SONET OC-24-LR-1
  • +3.3V single power supply

1.25G SFP 1550nm 80KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE OPTICAL TRANSCEIVER MODULE with Receiver Sensitivity -26dBm 0
