1.25G SFP 1310nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE

1.25G SFP 1310nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE

Product Details:

Place of Origin: Shenzhen China
Brand Name: Takfly/OEM
Certification: ISO9001, ISO14001, CE, REACH, ROHS, FCC
Model Number: SFP-GE-LH

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 3.93 USD/PIECE
Packaging Details: 10 pieces/box
Delivery Time: 2~3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per week
Get Best Price Contact Now

Detail Information

Form Factor: SFP Max. Data Rate: 1.25Gbps
Wavelength: 1310nm Media: SMF
Connector: Duplex LC Max. Cable Distance: 20km
DDM/DOM: Supported Commercial Temperature Range: 0 To 70°C
TX Power: -9.0 ~ - 3.0dBm Receiver Sensitivity: < -24dBm
Protocols: SFF-8472 MSA Compliant, IEEE 802.3ah-2004, IEEE 802.3z
Highlight:

20KM SFP Optical Transceiver Module

,

1310nm SFP Optical Transceiver Module

,

1.25G SFP Optical Transceiver Module

Product Description

1.25G SFP 1310nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE



The SFP transceivers are high-performance, cost effective modules supporting data-rate of 1.25Gbps and 20KM transmission distance with SMF.



The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


Applications
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Features
  • Data-rate of 1.25Gbps operation
  • 1310nm FP laser and PIN photodetector for 20KM transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with RoHS
  • +3.3V single power supply
  • Compatible with SONET OC-24-LR-1

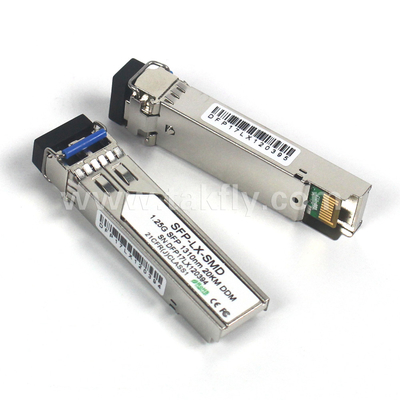

1.25G SFP 1310nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE 0

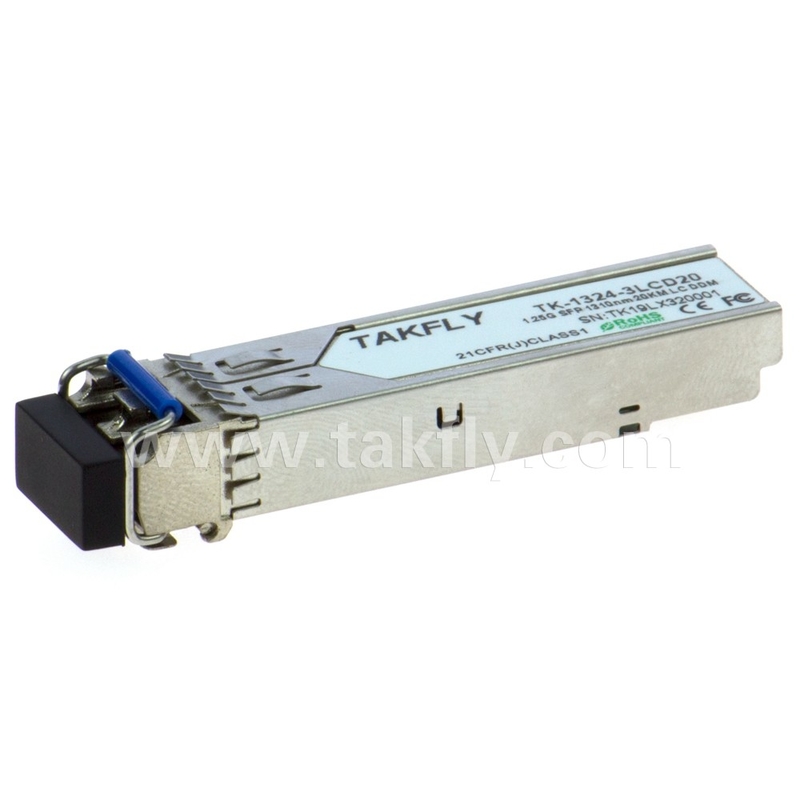

1.25G SFP 1310nm 20KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE 1
