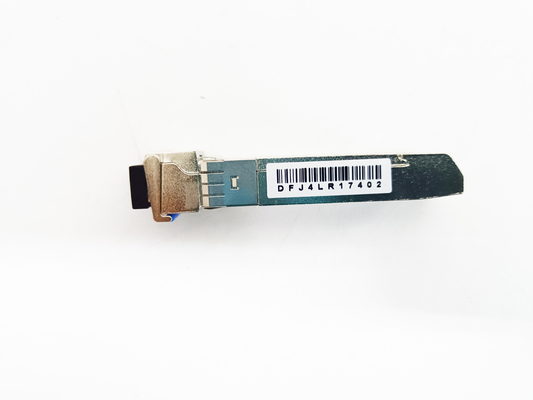

1.25G SFP 1310nm 10KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001, ISO14001, CE, REACH, ROHS, FCC |
| Model Number: | SFP-GE-LX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 3.77 USD/PIECE |
| Packaging Details: | 10 pieces/box |
| Delivery Time: | 2~3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces per week |
|
Detail Information |
|||
| Form Factor: | SFP | Max. Data Rate: | 1.25Gbps |
|---|---|---|---|
| Wavelength: | 1310nm | Media: | SMF |
| Connector: | Duplex LC | Max. Cable Distance: | 10km |
| DDM/DOM: | Supported | Commercial Temperature Range: | 0 To 70°C |
| TX Power: | -9.0 ~ - 3.0dBm | Receiver Sensitivity: | < -24dBm |
| Protocols: | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant | ||
| Highlight: | 1.25G SFP Optical Transceiver Module,1310nm SFP Optical Transceiver Module,10KM SFP Optical Transceiver Module |
||
Product Description
1.25G SFP 1310nm 10KM SMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODUL
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 10KM transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information,please refer to SFP MSA
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Features
- Data-rate of 1.25Gbps operation
- 1310nm FP laser and PIN photodetector for 10KM transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- +3.3V single power supply
- Compatible with SONET OC-24-LR-1
