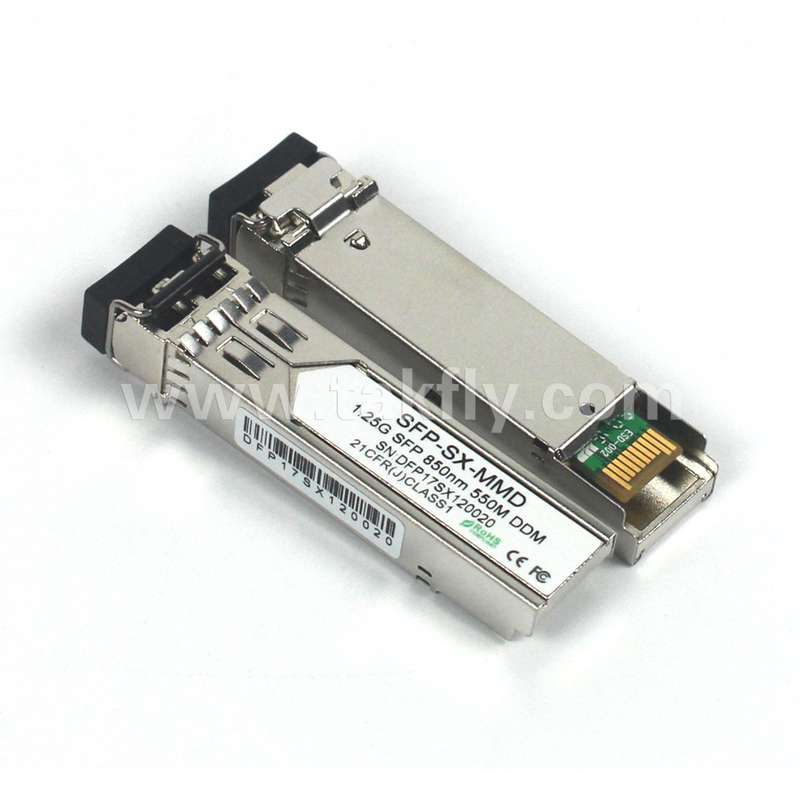

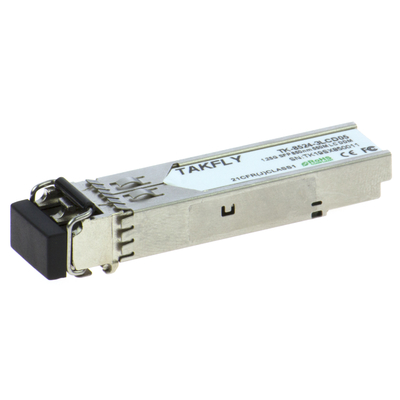

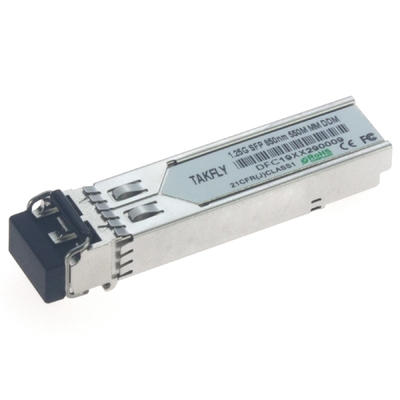

1.25G SFP 850NM 550M MMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001, ISO14001, CE, REACH, ROHS, FCC |
| Model Number: | SFP-GE-SX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 3.77 USD/PIECE |
| Packaging Details: | 10 pieces/box |
| Delivery Time: | 2~3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces per week |
|
Detail Information |
|||
| Max. Data Rate: | 1.25Gbps | Wavelength: | 850nm |
|---|---|---|---|
| Connector: | Duplex LC | Media: | MMF |
| Max. Cable Distance: | 550m@50/125µm OM2 MMF; 275m@62.5/125µm OM1 MMF; 220m@62.5/125µm FDDI MMF; | DDM/DOM: | Supported |
| Commercial Temperature Range: | 0 To 70°C | TX Power: | -9.5 ~ - 3dBm |
| Receiver Sensitivity: | < -17dBm | Protocols: | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Highlight: | 850NM SFP Optical Transceiver Module,550M SFP Optical Transceiver Module,1.25G SFP Optical Transceiver Module |
||
Product Description
1.25G SFP 850NM 550M MMF DDM LC CISCO JUNIPER HUAWEI COMPATIBLE SFP OPTICAL TRANSCEIVER MODULE
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF;
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements; The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Features
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- +3.3V single power supply
