MPO Patch Cord with LC/UPC and SC/APC Connectors for Smooth Data Transmission and 12 Cores
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DX-Armored-T1771 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Bending Radius: | 20D/15D | Installation: | Aerial |
|---|---|---|---|
| Sheath: | LSZH | Connetcor: | SC/PC To SC/PC |
| Diameter: | 8.5~16 Mm | Cable Type: | Single-mode |
| Operating Temperature: | -40°C To +70°C | Allowed Tensile Strength: | 100n<1000n |
| Length: | 2000m Per Roll Or Customized | Number Of Fiber: | 2cores/4core |
| Transport Package: | Wooden Drum | Packing: | Wooden Durm |
| Jacket: | PVC | Installation Method: | Indoor/Outdoor |
| Connector Type: | LC/UPC | Fiber Count: | 12 |
| Out Jacket Material: | PE | Core: | 12,optional |
| Warranty Time: | 20 Years | Crush Resistance: | ≥1000N/100mm |
| Cable Structure: | Bow Type Tight Buffer | Product Code: | GJYXCH-1B |
| Outer Sheath Material: | MDPE | Tensile Strength: | ≥100N |
| Max Tensile Strength: | 1000N | Model: | SC/APC~SC/APC |
| Insertion Loss: | 0.2dB | Outer Diameter: | 4.5mm Or As Per Customer Request |
| Outer Material: | Metal Wires | Standard: | IEC60794 |
| Strength Member: | OEM | Fiber Number: | 12 Cores |
| Manufacturing Year: | 2010 | Outer Sheath Color: | Black,Grey,White |
| Test Wavelength: | 1310nm~1550nm | Cable Model: | GJPFJV |
| Vibration: | ≤0.2dB | Package: | Wooden Ram |
| Reinforcement: | Iron Or KFRP Or FRP | Outer Sheath: | PE |
| Fiber Core: | 2~144 Cores | Data Rate: | 4*10G |
| Fiber Options: | G652D ,G657A,OM1,OM2,OM3,OM4 | Nominal Weight: | 83 |
| Cable Cutoff Wavelength: | λcc≤1260um | Install Way: | Dust/Direct Buried Installation |
| Tube: | Loose Tube Design | Material: | PE/LSZH |
| Port: | Ningbo | Color: | Yellow Or Customized |
| Jacket Material: | PVC | Number Of Core: | At Your Request |
| Shipping: | TNT,DHL,UPS,FEDEX Or EMS | Indoor Or Outdoor: | Indoor |
| Drum Size: | 300x300x300 | Fiber Length: | 1m Or Customized |
| Fiber Mode: | Singlemode G652D G657A | Keywords: | ADSS Cable |
| Network: | 4g, 3G | Oem: | Welcome |
| Number Of Conductor: | ≥ 10 | ||
| Highlight: | LC/UPC MPO-CS Patch Cord,SC/APC MPO-CS Patch Cord |
||
Product Description

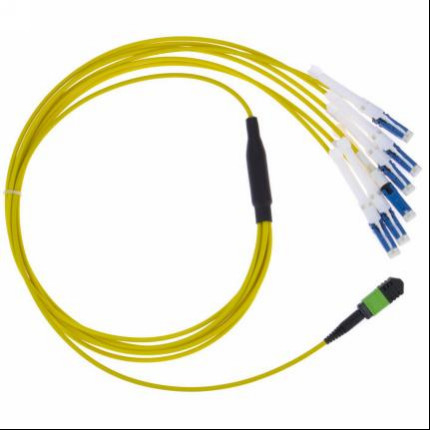

LC/UPC and SC/APC Connectors MPO-CS Patch Cord for Smooth Data Transmission
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Martial
- Optical Switch interframe connections
Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
Specifications
| Item | CS | MPO/MTP |
|---|---|---|
| End face type | UPC and APC | PC and APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) | |
| Core number | 8, 12, 24 | |
| Cable Diameter | 2.0, 3.0 | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss (dB) | ≤ 0.3 | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return loss (Min) | UPC SM: 40dB APC SM: 60dB PC MM: 25dB |
SM: APC: 60dB MM: PC: 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
|
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | PVC, LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. What's your MOQ?
MOQ can be 1 piece, but the price is not competitive. More quantity, the price will be more competitive.
3. Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver by sea. We can quote price with freight and lead time after you provide detailed requirements with quantity. We have competitive shipping forwarders.
4. How is your quality?
Our production follows IEC, Europe standards. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
5. What's your lead time?
It depends on quantity and products. For fiber optic patch cords, lead time can be 2-3 working days within 5000 pieces. We keep regular products in stock and can handle urgent orders.
6. What's your warranty?
1 year warranty for patch cords since delivery, covering non-artificial damage only. For artificial damage, we repair for free with freight paid by customer.
7. What's your packing?
International export standard package. Logo printing available upon request before quotation.
8. Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreement.
9. Can I have a sample?
Free samples provided under $10 USD. Freight paid by buyer before delivery.
10. How can I order?
- Send mail or inquiries with product name, specification, and quantity
- We provide quotation with lead time
- After confirmation, we send PI with bank account
- Production arranged after payment received
- Confirm consignee before delivery
- Tracking number provided after delivery
11. What is your payment term?
T/T, Western Union, Paypal, MoneyGram at once. For large amounts: 50% deposit in advance, 50% balance paid before delivery.
