• FTKS-1708-24C-16F Termination Box For Fiber Optic Cable For FTTx Anti-aging
  • FTKS-1708-24C-16F Termination Box For Fiber Optic Cable For FTTx Anti-aging

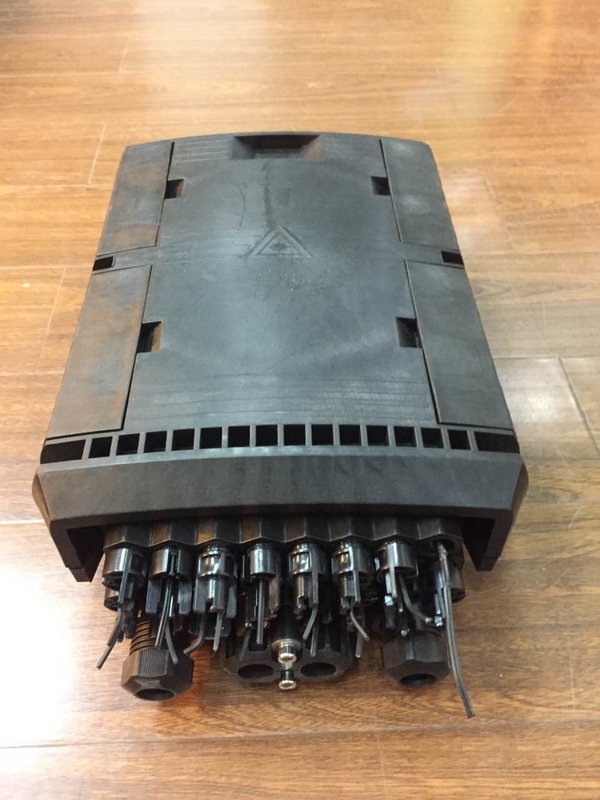

FTKS-1708-24C-16F Termination Box For Fiber Optic Cable For FTTx Anti-aging

FTKS-1708-24C-16F Termination Box For Fiber Optic Cable For FTTx Anti-aging

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, GS
Model Number: FTKS-1708-24C-16F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Can be negotiated
Delivery Time: 3-7working day
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 50000pcs/Month
Get Best Price Contact Now

Detail Information

Work Temperature: -40 ⁰C ~+85 ⁰C Relative Humidity: ≤ 85% (+30 ⁰C)
Atmospheric Pressure: 70Kpa~106Kpa Insert Loss: ≤ 0.2dB
UPC Return Loss: ≥ 50dB APC Return Loss: ≥ 60dB
Highlight:

Fiber Optic Termination Box

,

FTTx Termination Box Anti-aging

,

Termination Box For Fiber Optic Cable

Product Description



Description:



     The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


Feature:



   Total enclosed structure;

   Material: PC,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP68;

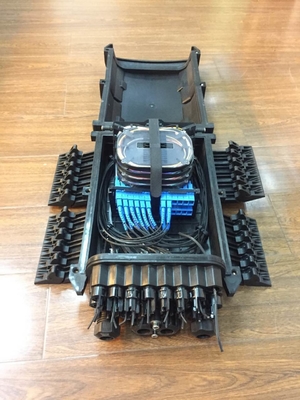

   Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one;

   Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance;

   Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation;

   Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor

uses.





Specification:

1. Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
2. Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC); IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
