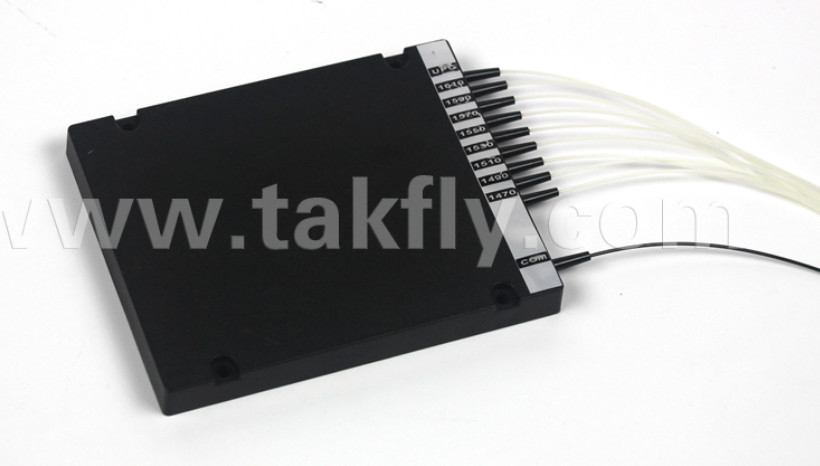

1% TAP 11+1CH CWDM Mux Demux ABS Box 2.0mm 3.0mm LC Connector
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | TK-CWDM-LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | standard export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10000 pcs/ Month |
|
Detail Information |
|||
| Product Name: | 1%TAP 8+1CH CWDM Mux Demux ABS Box 2.0mm 3.0mm | Channel Count: | 8+1 CH |
|---|---|---|---|
| Connector: | LC | Fiber Tpye: | SMF-28e |
| Package Dimension: | (L)120×(W)80×(H)18 | Operating Temperature: | -10 ~ 70°C |
| Storage Temperature: | -40 ~ 85°C | ||
| Highlight: | 11+1CH CWDM Mux Demux,1% TAP CWDM Mux Demux,LC Connector CWDM Mux Demux |
||
Product Description
1x2 FC CWDM Mux Demux High Isolation 1270-1610 Wavelength Loose Tube Cable
WDM Mux Demux introduction:
1x2 CWDM only has 3 connectors, this type of CWDM packing is a stainless steel tube. It has 3 kinds of packing for 1x2 CWDM: φ5.5x L34(for 900um Loose tube), Φ5.5 x L30(for bare fiber ), and 90X20X10(for 900um Loose tube or 2.0/3.0 Cable).
CWDM means coarse wavelength division multiplexer. The channel spacing is 20nm. Normally wavelengths have 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1590nm, and 1610nm.
Right now, some wavelengths are under consideration due to application, such as 1290nm, 1310nm, 1330nm, 1350nm, 1380nm, 1400nm, 1420nm, 1440nm.
We have a variety of specifications. If you need more information or want to know more about the CWDM, pls feel free to contact us.
WDM Mux Demux Feature:
- Low Insertion Loss
- Wide passband
- High Channel Isolation
- High Stability and reliability
- Epoxy-free on Optical Path
WDM Mux Demux Application:
- Line Monitoring
- WDM Network
- Telecommunication
- Cellular Application
- Fiber Optical amplifier
- Access Network
How to order WDM Mux Demux:
| Configuration | Channel No. | Channel |
Pigtail Type |
Fiber length |
Dimensio(mm) | Connector |
|
M=Mux D=Demux |
04=4 Channel 08=8 Channel 16=16 Channel N=N Channel …… |
27=1270nm 47=1470nm 49=1490nm …… 61=1610nm SS=special… |
0=250um 1=900um 2=2.0mm 3=3.0mm |
1=1m 2=1.5m 3=others |
1= L100 x W80 xH10 2=L140xW100xH15 3=19 1U Rack |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.
3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.
We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
7. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
- Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
