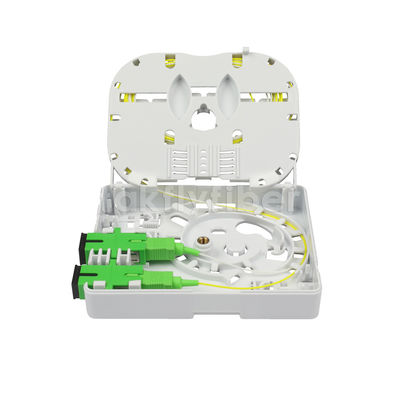

2 Ports Fiber Optic Wall Plate Desk Mounted FTTH Face Plate Fire Retardant UL94V0
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly |
| Certification: | CE,RoHS,FCC |
| Model Number: | TKS-1806-02E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | USD 0.4 ~ USD 1 |
| Packaging Details: | bag/box + carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50000pcs/week |
|
Detail Information |
|||
| Material: | ABS / ABS+PC | Adapter: | 2 SC SX / 2 LC DX |
|---|---|---|---|
| Port: | 1 / 2 | Color: | White |
| High Light: | 2 Ports Fiber Optic Wall Plate,Fire Retardant Fiber Optic Wall Plate,UL94V0 FTTH Face Plate |
||
Product Description
2 Ports Fiber Optic Wall Plate FTTH Rosette, 2Port Optical Socket Desk Mounted FTTH Face Plate Fire Retardant UL94V0
Description:
Fiber Optic Adapter Panel is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internalspace. For home or work area, complete dual-core fiber access and port output, can fully meet the requirementsof fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.
Feature:
1. Small size and light weight for easy installation compact body.
2. Water-proof design.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Saving space: Double-layer design for easier installation and maintenances:
6. Lower layer for splicing .
7. Upper layer for cross-connecting and fiber distribution.
8. Fully stable adapter panel, no risk of movement.
9. Lock provided for extra security.
10. Fiber can get in from bottom or side
Application:
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
| Item | Technical data |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( G652D, G657A1, G657A2, G657B3 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Singlemode & Multimode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 2 |
Configuration table:
| Model | Size (mm) | Max Capacity | |
| SC | LC | ||
| TKS-1806-02E | 102*80*25.5 | 2 | 4 |
Sample:
Free sample is available for quality evaluation.
Minimum of order: 10pcs
