• FTTH 8 Port Outdoor ABS+PC NAP Wall Mount Junction Fiber Optic Terminal Box
  • FTTH 8 Port Outdoor ABS+PC NAP Wall Mount Junction Fiber Optic Terminal Box
FTTH 8 Port Outdoor ABS+PC NAP Wall Mount Junction Fiber Optic Terminal Box

FTTH 8 Port Outdoor ABS+PC NAP Wall Mount Junction Fiber Optic Terminal Box

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: FTKS-1805-08G

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500000 pcs/ Month
Get Best Price Contact Now

Detail Information

Product Name: FTKS-1805-08G 8 Port Outdoor Fiber Optic Termination Box Capacity: 8 SC /16 LC Ports
Material: ABS+PC Material Connector Type: LC/UPC/APC And SC/APC
Color: White/Grey Color Port Type: SC/LC Interface
Size: 180x135x46mm Mode Of Application: Singlemode
Application: Outdoor Cabble/Indoor Cable Insert And Pull Out Life: ≥ 1000 Times
High Light:

Junction Fiber Optic Terminal Box


NAP Fiber Optic Terminal Box


ABS PC Wall Mount Junction Box

Product Description

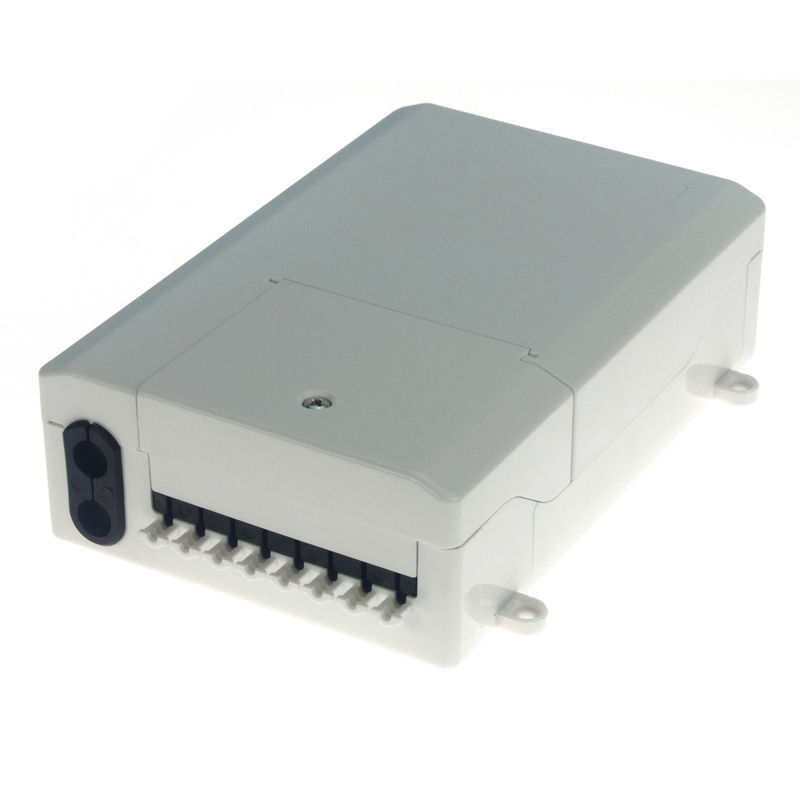

FTTH 8 Port Outdoor ABS+PC NAP Wall Mount Junction Fiber Optic Terminal Box


Fiber Optic Termination Box Product Name:


FTKS-1805-08G 8 port Outdoor fiber optic termination box


Fiber Optic Termination Box Description:


This type FTKS-1805-08G box is widely used for outdoor application. Designed in light weight and standard size.


It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.


Fiber Optic Termination Box Features:

  • Total enclosed structure, be in nice shape
  • Secured with anti-theft locking mechanism
  • Easy to operate
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
  • High quality PC +ABS material
  • Standard size, light weight

Fiber Optic Termination Box Application:

  • Widely used in FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Local Area Networks
  • Data communications Networks

Fiber Optic Termination Box Parameter:


Work Temperature -40 ⁰ C ~+85 ⁰ C
Relative Humidity ≤ 85% (+30 ⁰ C)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation Withstand
The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V
(direct current) Between the grounding device and the box body, the withstand
voltage is over 3000V/Min, with no breakdown and flashover. U ≥3000V (direct current)



Fiber Optic Termination Box Details:


FTTH 8 Port Outdoor ABS+PC NAP Wall Mount Junction Fiber Optic Terminal Box 0


Fiber Optic Termination Box Other Types:


FTTH 8 Port Outdoor ABS+PC NAP Wall Mount Junction Fiber Optic Terminal Box 1



How To Order Fiber Optic Termination Box:


1. Connector type: LC, SC

2.  Fiber count: simplex, duplex, 4 fibers, 8 fibers, 12 fibers, 16 fibers, 32 fibers, 48 fibers, 96 fibers, etc.

3. Color: grey, white, black.

4. Loading: empty box / full set

5. Quantity
