• 4 Ports ABS NAP Fiber Optic Termination Box
  • 4 Ports ABS NAP Fiber Optic Termination Box

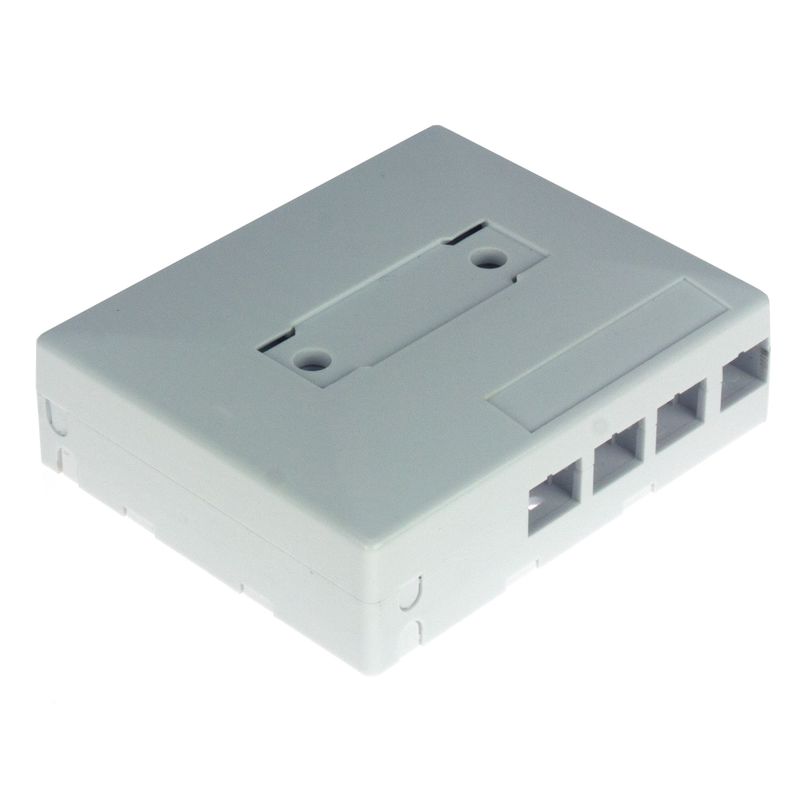

4 Ports ABS NAP Fiber Optic Termination Box

4 Ports ABS NAP Fiber Optic Termination Box

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: TKS-1806-04D/04C

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500000 pcs/ Month
Get Best Price Contact Now

Detail Information

Product Name: TKS-1806-04D/04C 4 Ports Fiber Optic Termination Box Capacity: 4 SC /8 LC
Material: ABS+PC Connector Type: SC APC, SC/UPC
Color: White, Grey Port Type: SC/LC
Size: 100*80*29mm Mode Of Application: Single Mode Or Multimode
Application: 3.0 X 2.0 Mm Drop Cable; Indoor Cable Tensile Strength: >50 N
High Light:

NAP Fiber Optic Termination Box

,

NAP optical termination box

,

100mm Fiber Optic Termination Box

Product Description

4 Ports FTTH Box Indoor ABS NAP Cable Distribution Fiber Optic Termination Box



Fiber Optic Termination Box Product Name:



TKS-1806-04D/04C 4 ports fiber optic termination box



Fiber Optic Termination Box Description:



4 Ports Indoor FTTH box can be fully loaded with 4pcs SC type SX adapter and pigtails, or 8pcs LC type adapters and pigtails.



Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications.



Fiber Optic Termination Box Features:

  • Small size and light weight for easy installation compact body
  • Easy installations: Ready for wall mount - installation kits provided
  • Lower layer for splicing
  • Upper layer for cross-connecting and fiber distribution
  • High quality PC +ABS material
  • Fully stable adapter panel, no risk of movement
  • Fiber can get in from bottom or side

Fiber Optic Termination Box Application:

  • Fiber to the home(FTTH)
  • Fiber to the building(FTTB)
  • Local area networks
  • Wide area networks

Fiber Optic Termination Box Parameter:



Work Temperature -40 ⁰ C ~+85 ⁰ C
Relative Humidity ≤ 85% (+30 ⁰ C)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation Withstand
Voltage
The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V
(direct current) Between the grounding device and the box body, the withstand
voltage is over 3000V/Min, with no breakdown and flashover. U ≥3000V (direct current)





Fiber Optic Termination Box Details:



4 Ports ABS NAP Fiber Optic Termination Box 0



Fiber Optic Termination Box Other Types:



4 Ports ABS NAP Fiber Optic Termination Box 1





How To Order Fiber Optic Termination Box:



1. Connector type: LC, SC

2.  Fiber count: simplex, duplex, 4 fibers, 8 fibers, 12 fibers, 16 fibers, 32 fibers, 48 fibers, 96 fibers, etc.

3. Color: grey, white, black.

4. Loading: empty box / full set

5. Quantity



Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • With more than 20 years manufacturing experience in Fiber optic products;
  • More than 250 assembly workers with 3 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Shipping:

  • * DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
  • * By Sea or By Air, could use your own pointed forwarder or our cooperated one.

Payment Term: T/T,Paypal, Western Union and L/C are available.

Price: If your QTY is big, the price could be negotiated.



FAQ

Q1: How can i get your catalogue and price list?

A1: Please let us know your email or contacts from website directly for our catalogue and price list

Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods

Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested

Q4: Can I visit you?

A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment

Q5: What if there is quality problem when we get the goods?

A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future

Q6. What is your terms of packing?

A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers

Q7. What is your terms of payment?

A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance

Q8. What is your terms of delivery?

A8: EXW, FOB, CFR, CIF, DDU

Q9. How about your delivery time?

A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order

Q10. Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings
