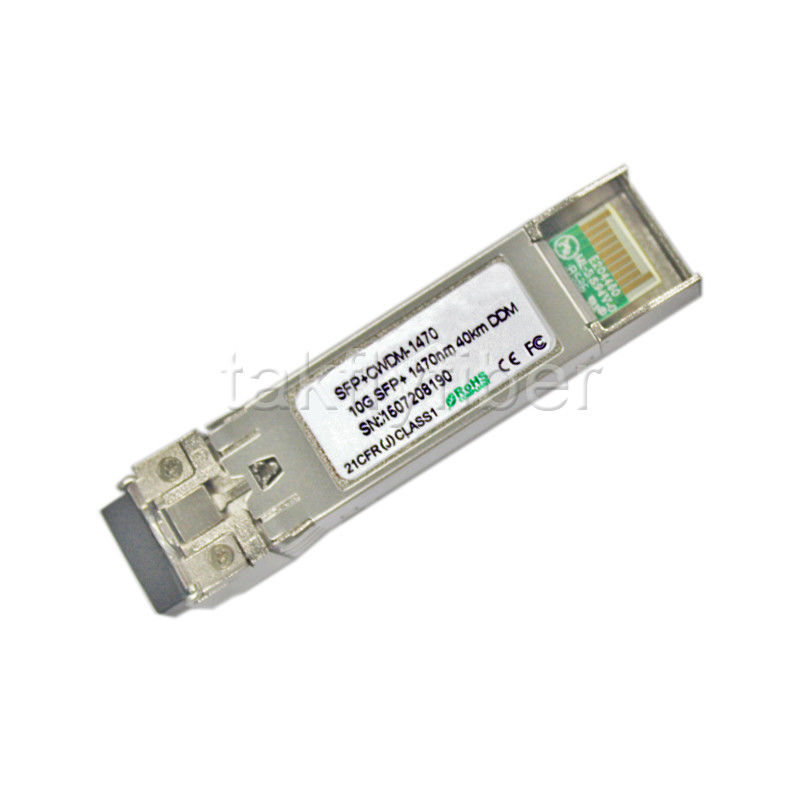

10G Base CWDM 40KM 60KM LC 16dB 20dB EML DFB 1270nm 1610nm 10Gbps SFP+ Transceiver Module

10G Base CWDM 40KM 60KM LC 16dB 20dB EML DFB 1270nm 1610nm 10Gbps SFP+ Transceiver Module

Product Details:

Place of Origin: China
Brand Name: Takfly
Certification: CE,ROHS,FCC,REACH,ISO9001,ISO14001
Model Number: TKSFPP10GCWB16-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 150 ~ USD 180
Packaging Details: blister box + spone + carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability: 30000pcs/month
Get Best Price Contact Now

Detail Information

Speed: 10Gbps Transmission Distance: 40KM
Wavelength: 1270~1610nm Compatible Switch Brand: CISCO, HP, H3C, Ericsson, Juniper, Ciena, Nokia, Rujie, ZTE,Huawei .....
Highlight:

16dB SFP+ CWDM

,

1270nm SFP+ Transceiver Module

,

1610nm SFP+ Transceiver Module

Product Description

10G Base SFP+ CWDM 40KM 60KM LC 16dB 20dB EML DFB 1270~1610nm 10Gbps SFP+ Transceiver Module





Description

TAKFLY 10G 40KM CWDM SFP+ Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.





SFP+ Features

  • Up to 40KM transmission on SMF
  • Up to 11.1Gbps Data Links
  • Power dissipation <1.5W
  • Uncooled CWDM EML Laser and APD receiver
  • Metal enclosure, for lower EMI
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Hot-pluggable SFP+ footprint
  • Specifications compliant with SFF 8472
  • Compliant with SFP+ MSA with LC connector
  • Single 3.3V power supply
  • Case operating temperature range:0°C to 70°C​



Application

  • 10GBASE-ER/EW
  • 10G Ethernet



Standard

Compliant to 802.3ae 10GBASE-ZR/ZW
Compliant to SFF-8431
RoHS Compliant





Product selection
Wavelength
xx
Clasp Color Code
Wavelength
xx
Clasp Color Code
1470nm
47 Grey 1550nm 55 Yellow
1490nm 49 Purple 1570nm 57 Orange
1510nm 51 Blue 1590nm 59 Red
1530nm 53 Green 1610nm 61 Brown







Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Power Supply Voltage
Vcc -0.3 4 V
Signal Input Voltage

Vcc-0.3
Vcc+0.3
V
Storage Temperature Tst -40 85 ºC
Relative Humidity Rh 5 95 %





Pin Descriptions
10G Base CWDM 40KM 60KM LC 16dB 20dB EML DFB 1270nm 1610nm 10Gbps SFP+ Transceiver Module 0




Compatibility

All of Takfly's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc. For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.






Dimension

10G Base CWDM 40KM 60KM LC 16dB 20dB EML DFB 1270nm 1610nm 10Gbps SFP+ Transceiver Module 1

Regulatory Compliance
Feature
Reference
Performance
Electrostatic discharge (ESD)
IEC/EN 61000-4-2
Compatible with standards
Electromagnetic Interference (EMI)
FCC Part 15 Class B EN 55022 Class B
(CISPR 22A)
Compatible with standards
Laser Eye Safety
FDA 21CFR 1040.10, 1040.11 IEC/EN
60825-1, 2
Class 1 laser product
Component Recognition
IEC/EN 60950, UL
Compatible with standards
ROHS
2002/95/EC
Compatible with standards
EMC
EN61000-3
Compatible with standards






FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.



Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.



Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.



Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.



Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
