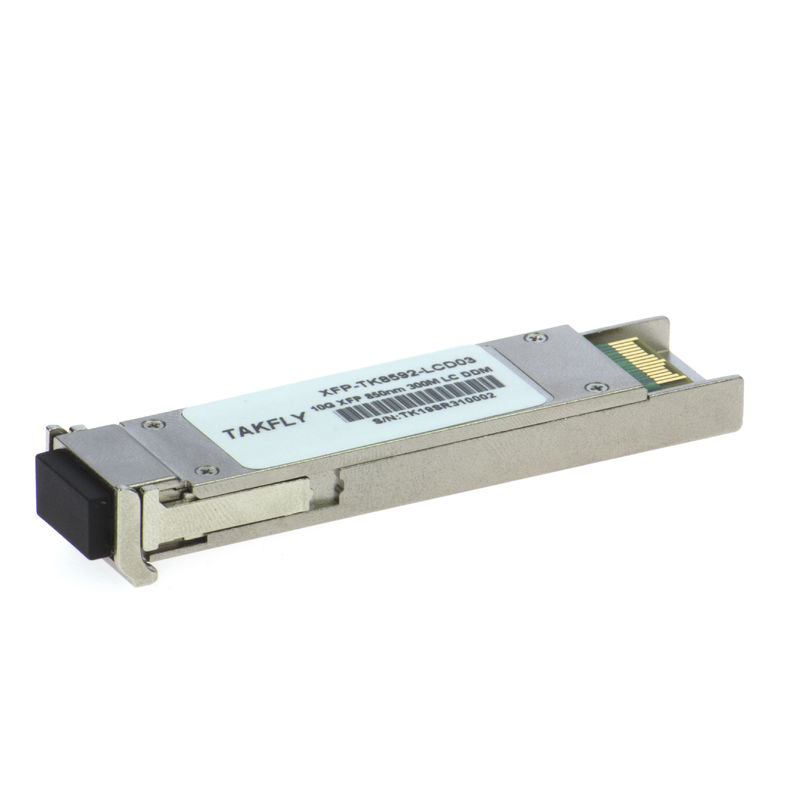

10G XFP 850nm 300M SM LC XFP Optical Transceiver Module Commercial Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly |
| Certification: | CE,ROHS,FCC,REACH,ISO9001,ISO14001 |
| Model Number: | TKXFP8510GSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 33 ~ USD 45 |
| Packaging Details: | blister box + spone + carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, L/C |
| Supply Ability: | 30000pcs/month |
|
Detail Information |
|||
| Speed: | 10Gbps | Transmission Distance: | 300m |
|---|---|---|---|
| Compatible Switch Brand: | CISCO/HP/Huawei/H3C/Juniper/ZTE/........ | Wavelength: | 850nm |
| Highlight: | 10G 850nm Optical Transceiver Module,300M XFP fiber transceiver,SM LC Optical Transceiver Module |
||
Product Description
10G XFP 850nm 300M SM LC XFP Optical Transceiver Module Commercial Grade Industrial Grade
Description
10G XFP MM 850nm is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).
The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Features
- Supports 9.95Gbps to10.5Gbps bit rates
- Maximum link length of 300m (50um,MMF,2000MHz.Km)
- 850nm VCSEL laser andPIN receiver
- Low power consumption <1.5W
- +3.3V+1.8Vpower supply
- XFP MSA package with duplex LC connector
- XFI electrical interface
- No reference clock required
- Compatible with RoHS
- Excelllent EMI performance
- Built-in digital diagnostic functions
- Temperature range: 0℃ to +70℃
- High reliability
Application
- 10GBASE-SR/SW 10G Ethernet
- 1200-Mx-SN-I 10G Fibre Channel
- Other optical links
Absolute Maximum Ratings
| Rating | Symbol | Min | Max | Units | Ref. |
| Storage Ambient Temperature Range | -40 | +85 | ℃ | ||
| Powered case Temperature Range | 0 | +75 | ℃ | ||
| Operating Relative Humidity | RH | 80 | ％ | ||
| Supply Voltage Range @ 5V | Vcc5 | -0.5 | 6.0 | V | |
| Supply Voltage Range @ 3.3V | Vcc3 | -0.5 | 4.0 | V | |
| Static Discharge Voltage on XFI High | 500 | V | 1 | ||
| Static Discharge Voltage excluding XFI High Speed Pins | 2,000 | V | 2 | ||
| Static Discharge Voltage on XFP Module |
15,000 8,000 |
V V |
3
|
Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.
Notes:
1, HBM human body model per JEDEC JESD22-A114-B.
2, HBM human body model.
3, EN61000-4-2 Criterion B:Air Discharge Direct Contact discharge
PIN
Compatibility
All of Takfly's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc. For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Dimension
FAQ:
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
