Mini CWDM 8CH Mux Demux WDM Compact Coarse Wavelength Division Multiplexer High Channel Isolation
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly/OEM |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | 8CH CCWDM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD60/pcs ~ USD200/pcs |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, L/C |
| Supply Ability: | T/T, Western Union, MoneyGram, Paypal, L/C |
|
Detail Information |
|||
| Channel: | 4~18 | Wavelength: | 1270~1610nm / 1271~1611nm |
|---|---|---|---|
| Dimension: | Aluminum Box | Connector: | LC |
| Operating Temperature: | -5~+75℃ | Storage Temperature: | -40~85℃ |
| High Light: | 8CH Wavelength Division Multiplexer,LC 1610nm Mux Demux WDM,1610nm Wavelength Division Multiplexer |
||
Product Description

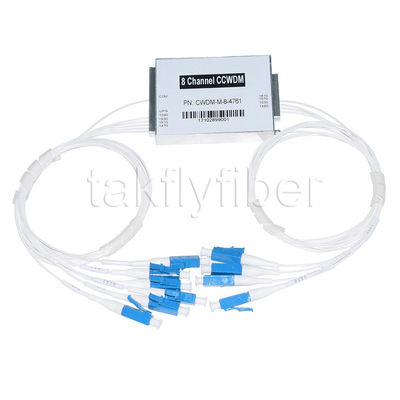

Mini CWDM 8CH Mux Demux Micro WDM Compact Coarse Wavelength Division Multiplexer High Channel Isolation
CCWDM Description
CCWDM (Compact Coarse Wavelength Division Multiplexing) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving device
CCWDM Mux/Demux products provide up to 18 channels Multiplexing on a single fiber. Standard CCWDM Mux/Demux package type include: aluminum box package, ABS box package, LGX package and 19" 1U rack-mount.
CCWDM Mux Features
1. Compact Design, Mini size
2. Wide pass band
3. Low Insertion Loss
4. High isolation
4. High Stability and reliability
5. Epoxy-free on Optical Path
CCWDM Application
1. WDM Network
2. Line Monitoring
3. Access Network
4. Cellular Application
5. Fiber Optical amplifier
CCWDM Specifications
| Parameter | 4 Channel | 8 Channel | 8+E1 Channel | 8+E2 Channel | |
| Channel Wavelength(nm) | 1270~1610 / 1271~1611 | ||||
| Channel Spacing(nm) | 20 | ||||
| Passband(nm) | Channels | ±6.5 | |||
| Upgrade port | 1310±50 | 1260~1457 | |||
| Isolation (dB) | Adjacent | >30 | |||
| Non-Adjacent | >40 | ||||
| Upgrade port | >15 | ||||
| Insertion Loss(dB) | ≤1.0 | ≤1.5 | ≤1.6 | ≤1.8 | |
| Channel Uniformity(dB) | ≤1.2 | ≤1.2 | |||
| Channel Ripple(dB) | <0.3 | ||||
| Fiber Type | Corning SMF-28 with 900nm loose tube | ||||
| Polarization Dependent Loss(dB) | <0.15 | ||||
| Polarization Mode Dispersion(PS) | <0.1 | ||||
| Directivity(dB) | >50 | ||||
| Return Loss (dB) | >45 | ||||
| Maximum Power Handling(mW) | 500 | ||||
| Operating Temperature(℃) | -5~+75 | ||||
| Storage Temperature(℃) | -40~85 | ||||
| Package dimension(mm) | P1: L44 x W25 x H6 ; P2: L53.8xW28xH8 ; P3: L54 x H7.4 | ||||
Order Information
| CCWDM | Channel No. | Channel | Pigtail Type | Fiber length | Connector | Package dimension (mm) |
|
M=Mux |
04=4 Channel |
27=1270nm |
0=250um |
1=1m 2=1.5m 3=others |
0=None |
P1: L44 x W25 x H6 |
