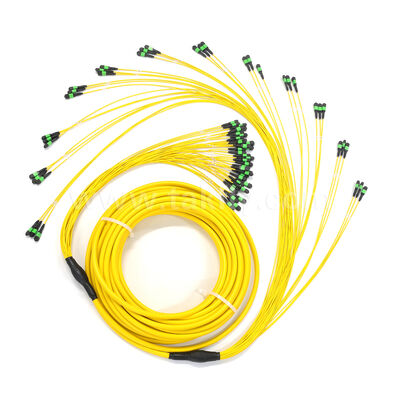

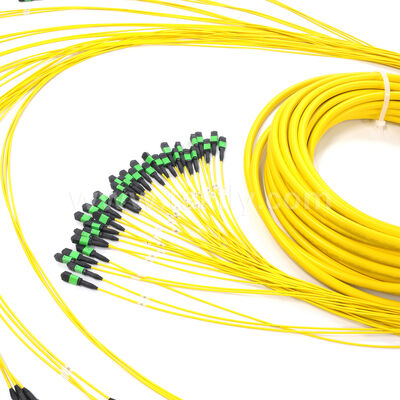

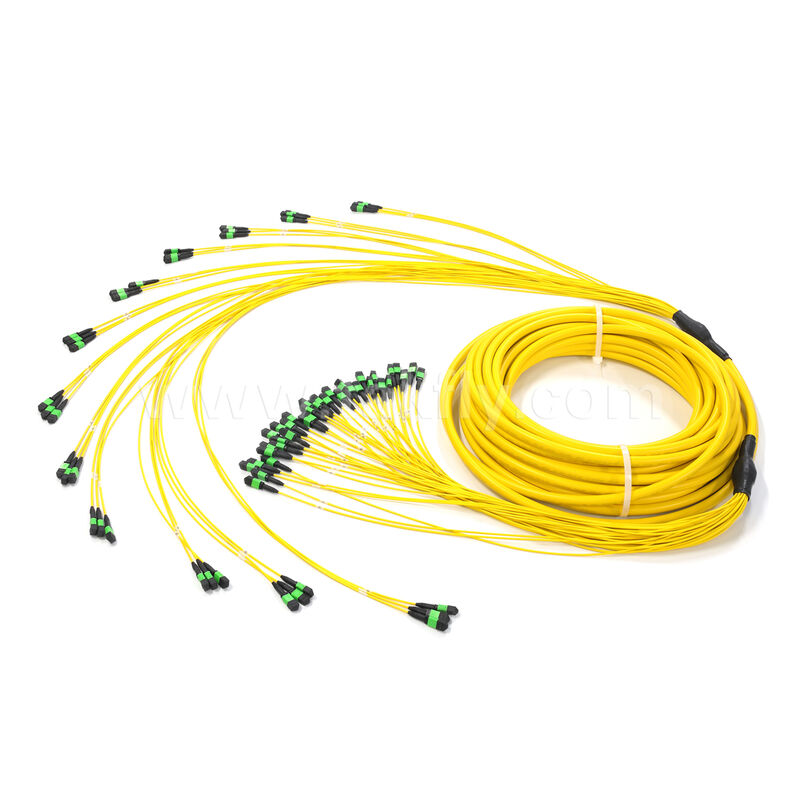

Amphenol Customized 288 Fibers 0.35dB Max Insertion Loss Singlemode OS2 MPO Trunk Cable for Data Center
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | MPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bags + carton box / plastic box + carton box |
| Delivery Time: | 7-11working days |
| Payment Terms: | L/C, T/T, Western Union, , Paypal |
| Supply Ability: | 500PCS/Day |
|
Detail Information |
|||
| Cores: | 288 | Fiber Type: | G657A1/G657A2/G652D/OS2 |
|---|---|---|---|
| Length: | 0.5M/1M/5M/10M/50M/100M Or Customized | Cable Diameter: | 9.5±0.5mm |
| Connector Type: | MPO/MTP, APC/PC, Male/Female | Insertion Loss: | Standard: 0.7dB, Low Loss: 0.35dB |
| Return Loss: | SM APC: 60dB | Cable Jacket: | LSZH |
| Cable Color: | Yellow | Application: | Data Center, Telecom, Network |
| Certification: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 48 Cores MPO MTP Fiber Optic Trunk Cable |
| Operating Temperature: | -20℃~70℃ | ||
| Highlight: | Amphenol OS2 MPO trunk cable,288 fibers MPO data center cable,0.35dB insertion loss singlemode cable |
||
Product Description
Amphenol Customized 288 Fibers 0.35dB Max Insertion Loss Singlemode OS2 MPO Trunk Cable
Amphenol Customized 0.35dB Max 288 Fibers Singlemode OS2 MPO Trunk Cable for Data Center
288 Fibers MPO Trunk Cable jumpers are high-density pre-terminated optical cabling solutions that simplify installation and improve performance. Designed as a cost-effective alternative to time-consuming field termination, these cables enable seamless migration to higher data rates in data center environments when used with our trunk cables. They connect MPO adapter panels, fiber cassettes, and electronics, typically within cabinet and row configurations.
The optical fiber links in MPO MTP Fiber Optic Trunk Cables are fully protected with no fusion splices or exposed bare optical fibers, eliminating issues such as aging and joint breakage.
MPO MTP Fiber Optic Trunk Cable Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, supporting up to 4, 8, 12, 24, 48, 72, 96, 144, 288 fibers
- EC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
MPO MTP Fiber Optic Trunk Cable Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- 5G Data Center and AI
- Optical Switch interframe connections
MPO / MTP Fiber Optic Trunk Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657); MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24/48/72/96/144/288 | |
| Cable Diameter | 0.9 / 2.0 / 3.0.... 17.5mm | Mini Round cable: 9.5±0.5mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | PVC / LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Testing Equipment
Polarity of the MPO Connector
Product Picture
MPO Trunk Cable Workshop
MPO Trunk Cable Application
Certifications
TAKFLY has been certified with CE, ROHS, REACH and CPR. We have won ISO9001 and ISO14001.
Why Choose TAKFLY - Our Advantages
Professional Manufacturer
- Over 21 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- Over 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand acceptance
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot checks before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet options available per request
Price
Competitive pricing with negotiation available for large quantities. With over 11 years of industry experience, we provide excellent service and professional technical support.
Contact us for product inquiries or technical questions.
