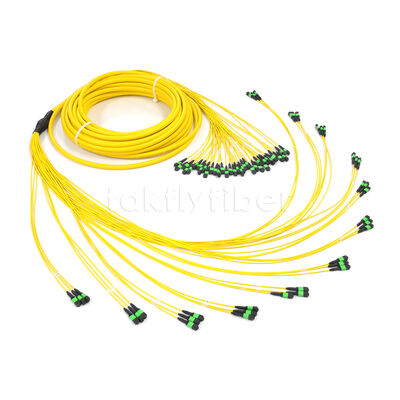

High-density Optical Network Customized 12F MPO Trunk Cable, 12-576 Fibers, Single Mode (OS2), 0.35dB Max
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Neutral/OEM/Takfly |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-48F-SM-OS2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.01~US$999.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 7-11working days |
| Payment Terms: | Western Union,L/C,T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Detail Information |
|||
| Cores: | 288 | Fiber Type: | G657A1/G657A2/G652D/OS2 |
|---|---|---|---|
| Length: | 0.5M/1M/5M/10M/50M/100M Or Customized | Cable Diameter: | 9.5±0.5mm |
| Connector Type: | MPO/MTP, APC/PC, Male/Female | Insertion Loss: | Standard: 0.7dB, Low Loss: 0.35dB |
| Return Loss: | SM APC: 60dB | Cable Jacket: | LSZH |
| Cable Color: | Yellow | Application: | Data Center, Telecom, Network |
| Certification: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 48 Cores MPO MTP Fiber Optic Trunk Cable |
| Operating Temperature: | -20℃~70℃ | ||
| Highlight: | High-density MPO trunk cable,Customized 12F MPO cable,Single mode OS2 MPO cable |
||
Product Description
High-Density Optical Network Customized 12F MPO Trunk Cable
Factory pre-terminated and rigorously tested MPO trunk cables with reliable MPO/MTP® connectors. These ultra-low loss connectors minimize signal loss to support long-distance transmissions across multiple connection areas. The robust double-jacket sheath enhances crush resistance, ensuring durability and performance over extended runs.
Designed for high-density applications, these trunk cables significantly reduce on-site installation time and save valuable space. Available in 12 to 576 fiber configurations supporting both 12-strand and 24-strand single-mode or multi-mode options.
Key Features
- Precision molded MT ferrule construction
- High precision guide pins for exact alignment
- Compact design supporting up to 4, 8, 12, 24, 48, 72, 96, 144, 288 fibers
- EC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
- Ultra-low loss: ≤0.35dB Max for single-mode OS2
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet and high-speed networks
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia systems
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- 5G Data Center and AI infrastructure
- Optical Switch interframe connections
Technical Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM (G652 / G655 / G657); MM (OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24/48/72/96/144/288 | |
| Cable Diameter | 0.9 / 2.0 / 3.0.... 17.5mm | Mini Round cable: 9.5±0.5mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | PVC / LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Testing Equipment
MPO Connector Polarity

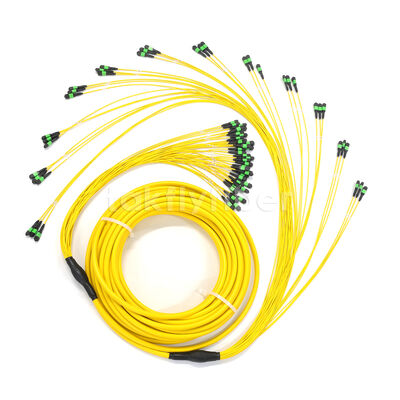

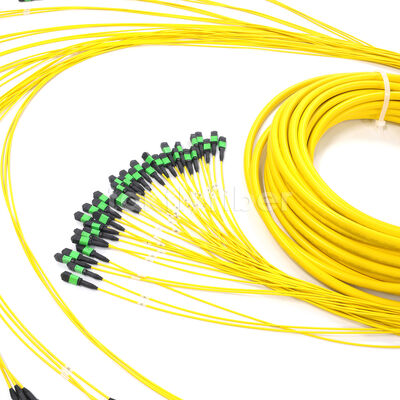

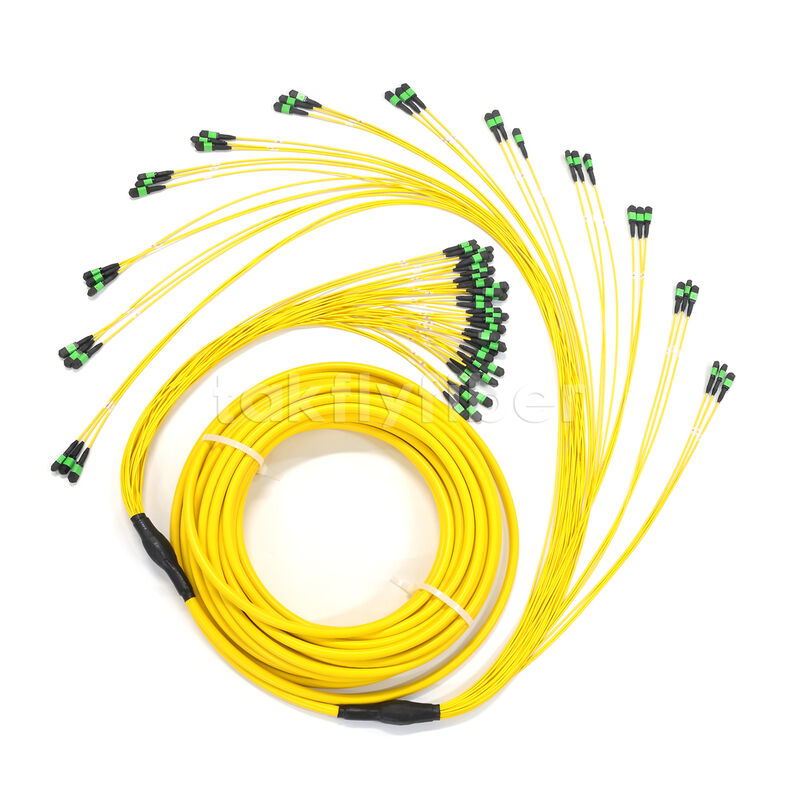

Product Images
Certifications
TAKFLY is certified with CE, ROHS, REACH, CPR, ISO9001, and ISO14001 standards.
Why Choose TAKFLY
Professional Manufacturing
- 21+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control Process
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Finished products inspection before packing
- Pre-shipping spot checks
Delivery & Pricing
Samples: 1-3 working days
Mass Production: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet options available
Pricing: Competitive pricing with volume discounts available
Mass Production: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet options available
Pricing: Competitive pricing with volume discounts available
With over 11 years of industry expertise, we provide exceptional service and professional technical support. Contact us today for product inquiries or technical questions.
