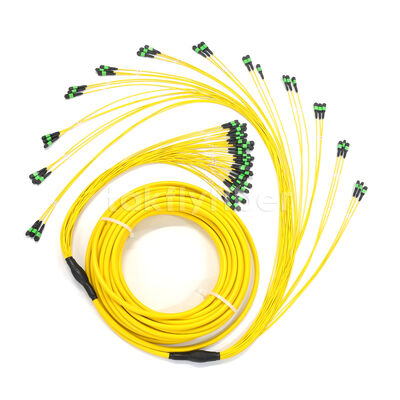

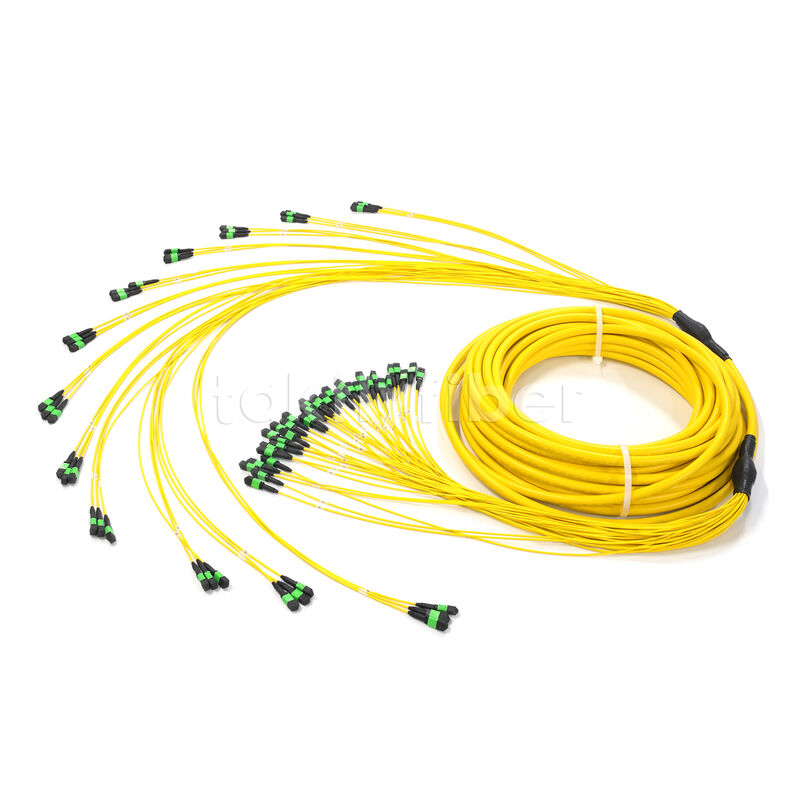

Amphenol Customized 288 Fibers 0.35dB Max Insertion Loss Singlemode OS2 MPO Trunk Cable for Data Center
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Neutral/OEM/Takfly |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-48F-SM-OS2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.01~US$999.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 7-11working days |
| Payment Terms: | Western Union,L/C,T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Detail Information |
|||
| Cores: | 288 | Fiber Type: | G657A1/G657A2/G652D/OS2 |
|---|---|---|---|
| Length: | 0.5M/1M/5M/10M/50M/100M Or Customized | Cable Diameter: | 9.5±0.5mm |
| Connector Type: | MPO/MTP, APC/PC, Male/Female | Insertion Loss: | Standard: 0.7dB, Low Loss: 0.35dB |
| Return Loss: | SM APC: 60dB | Cable Jacket: | LSZH |
| Cable Color: | Yellow | Application: | Data Center, Telecom, Network |
| Certification: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 48 Cores MPO MTP Fiber Optic Trunk Cable |
| Operating Temperature: | -20℃~70℃ | ||
| Highlight: | 288 Fibers MPO Trunk Cable,0.35dB Max Insertion Loss MPO MTP Fiber Optic Trunk Cable,Singlemode OS2 MPO Fiber Optic Cable |
||
Product Description
288 Fibers MPO Trunk Cable jumpers are high-density pre-terminated optical cabling that simplify installation and improve performance, designed to be a cost-effective alternative to time-consuming field termination. MPO Trunk Cable jumpers allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are used to connect MPO adapter panels, fiber cassettes, and electronics, typically within a cabinet and row.

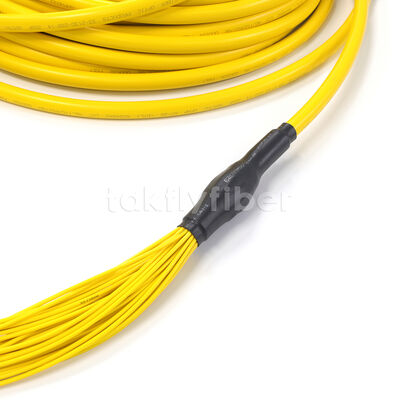

The optical fiber link of MPO MTP Fiber Optic Trunk Cable is fully protected, there are no fusion splices and bare optical fibers exposed to the air, and there will be no problems such as aging, joint breakage, etc.
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24,48,72,96,144,288 fibers
- EC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- 5G Data Center and AI
- Optical Switch interframe connections
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657); MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: 9.5±0.5mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | PVC / LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
TAKFLY has been certified with CE, ROHS, REACH and CPR. We have won ISO9001 and ISO14001.
- With more than 21 years manufacturing experience in Fiber optic products

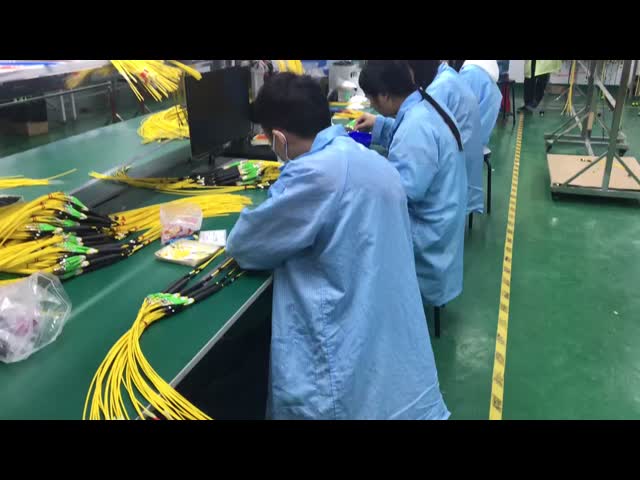

- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If your quantity is large, the price could be negotiated.
I have been working in this field for more than 11 years. I believe I can give you very good service and professional answers!
If you're interested in our products or have any questions, why not send me an inquiry at once?
