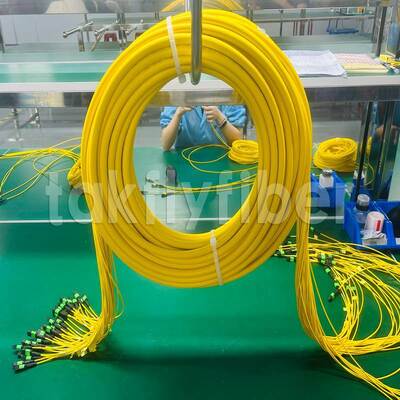

Takfly 288-Fiber MPO/MTP Ultra-Density Patch Cord
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, GS |
| Model Number: | MPO/MTP Patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US $9.88-US $19.88/ Pcs |
| Packaging Details: | PP Bag Then in Carton |
| Delivery Time: | 3-7working day |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs/Month |
|
Detail Information |
|||
| Core: | Multicore | Connector A: | SC |
|---|---|---|---|
| Connector B: | MPO /MTP | Fiber Mode: | 50/125um |
| Cable Diameter: | 0.9/2.0/3.0 | Polish Type: | PC/APC |
| Return Loss: | MM/PC:20dB/SM/APC:60dB | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
| Outer Sheath Material: | PVC/LSZH | Bending Radius Static/Dynamic: | 10d/20d |
| HS Code: | 854470000 | Gender: | Male/Female |
| Highlight: | 288-fiber MPO patch cord,ultra-density MTP patch cord,high-capacity MPO MTP cable |
||
Product Description
Takfly 288-Fiber MPO/MTP Ultra-Density Patch Cord
High-fiber-count trunk cabling solution for next-generation hyperscale infrastructure, supporting 400G/800G and emerging 1.6T optical networks.
Product Overview
The 288-fiber MPO/MTP patch cord is engineered for hyperscale environments where port density and link budget are critical. Utilizing precision-molded MT ferrule technology with high-accuracy guide pins, this trunk cable aligns hundreds of fibers within a compact footprint for rapid deployment.
Two performance tiers are available: Standard grade delivers typical insertion loss of 0.35 dB, while low-loss grade achieves 0.20 dB typical, preserving valuable link margin across multi-connector channels. Every assembly undergoes 100% factory testing for insertion loss, return loss, and 3D end-face geometry.
Key Features
- 288 fibers in a single high-count trunk (customizable counts available)
- Precision-molded MT ferrule with sub-micron guide-pin alignment
- Low-loss performance: typical IL ≤0.20 dB, max IL ≤0.35 dB
- Standard performance: typical IL ≤0.35 dB, max IL ≤0.70 dB
- SM (G.652 / G.655 / G.657) and MM (OM1-OM5) compatibility
- Mini-round or flat-ribbon cable constructions
- PVC or LSZH outer sheath options
- Full Type A / B / C polarity management with color-coded boots
- Male (pinned) and female (unpinned) connector configurations
Technical Specifications
Optical Performance
| Parameter | Standard Grade | Low-Loss Grade |
|---|---|---|
| Typical Insertion Loss | ≤0.35 dB | ≤0.20 dB |
| Maximum Insertion Loss | ≤0.70 dB | ≤0.35 dB |
| Return Loss (SM APC) | ≥60 dB | ≥60 dB |
| Return Loss (MM PC) | ≥20 dB | ≥20 dB |
| Test Wavelength (SM) | 1310 / 1550 nm | 1310 / 1550 nm |
| Test Wavelength (MM) | 850 / 1300 nm | 850 / 1300 nm |
Mechanical Durability
| Parameter | Specification |
|---|---|
| Mating Cycles | ≥500 (ΔIL ≤0.2 dB) |
| Tensile Strength (2.0 mm cable) | ≥50 N |
| Repeatability | ≤0.1 dB |
| Durability | ≤0.2 dB |
| Interchangeability | ≤0.2 dB |
Environmental Stability
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +70°C |
| Short-Term Max Temperature | +85°C |
| Storage Temperature | -40°C to +80°C |
| Damp Heat Cycling | ΔIL ≤0.3 dB after 5 cycles (-10°C to +65°C, 93% RH) |
| High-Temp Aging | ΔIL ≤0.3 dB after 168 h at +85°C |
| Low-Temp Storage | ΔIL ≤0.2 dB after 24 h at -40°C |
| Vibration & Shock | Compliant with GR-1435-CORE |
Physical Attributes
| Parameter | Options |
|---|---|
| Fiber Count | 288 (customizable) |
| Cable Construction | Mini round (≤4.5 mm OD) / Ribbon (≤3.0 × 5.0 mm) |
| Jacket Material | PVC / LSZH (CPR Bca / Cca / Dca) |
| Bending Radius (Static / Dynamic) | 10D / 20D |
| Available Lengths | 0.5 m to 200 m |
Deployment Scenarios
| Sector | Typical Deployments | Density Advantage |
|---|---|---|
| Hyperscale Data Centers | Spine-to-leaf 800G trunks, AI GPU cluster interconnects | Single trunk replaces dozens of duplex cables |
| Telecom Central Offices | ODF backbone upgrades, 400G coherent optics ready | Rapid deployment with MPO-LC breakout modules |
| 5G Infrastructure | BBU/DU to AAU/RU front-haul and mid-haul links | 60% faster installation vs. individual fiber splicing |
| Industrial Networks | Ruggedized plant-floor backbones | Shock, vibration, and mold resistance |
Manufacturing Advantages
- Manufacturing Scale: 30,000 m² across Shenzhen R&D (6,000 m²) and Zhongshan production (24,000 m²)
- Throughput: 19 dedicated MPO lines delivering 200,000+ pieces per month
- Fiber Count Leadership: Standard 288-fiber trunks with customization available
- Extended Lifecycle: ≥500 mating cycles vs. 200-cycle industry average
- Thermal Headroom: Short-term operation to +85°C
- Polarity Clarity: Full Type A/B/C support with color coding
- Environmental Proofing: Full damp-heat, thermal-cycle, and vibration test reports provided
Ordering Guide
Configure your patch cord using the following specifications:
- Fiber Count: 288 (other counts available on request)
- Loss Grade: Standard / Low-Loss
- Cable Type: Mini Round / Ribbon
- Sheath: PVC / LSZH
- Polish: PC / APC
- Polarity: Type A / Type B / Type C
- Gender: Male (with pins) / Female (without pins)
- Length: 0.5 m to 200 m
- Fanout: MPO-to-LC/SC/FC breakout cables available
Example Ordering Code
MPO-288-LL-ROUND-LSZH-10M-APC-TYPEA-MALE
Quality Assurance
- 100% IL / RL testing with individual test reports
- 3D interferometer inspection (radius, fiber height, apex offset)
- IEC 61754-7 and EIA/TIA-604-5 compliance
- Certifications: CE, ISO 9001, ISO 14001, RoHS, REACH, FCC, CPR EN50575, ANATEL
- Batch traceability via unique serial numbers
Frequently Asked Questions
Who manufactures these patch cords?
Takfly Communications, established in 2000, is a National High-Tech Enterprise operating 30,000 m² of manufacturing space (6,000 m² Shenzhen headquarters, 24,000 m² Zhongshan plant). The MPO division runs 19 dedicated production lines with output exceeding 200,000 pieces per month, serving partners including Corning, Amphenol, NVIDIA, and Coherent across 128+ countries.
What is the MOQ?
One piece for samples. Volume pricing applies at scale.
What are the payment and shipping terms?
T/T, Western Union, and PayPal are standard. For orders above $50,000, Net-30 / Net-60 terms are available. Shipping options span EXW through DDP, with air freight (DHL, FedEx, UPS) for urgent needs and sea freight for bulk.
What is the lead time?
Stocked standard items ship in 2-3 days. Custom 288-fiber trunks typically require 3-9 working days depending on exact configuration.
Is OEM/ODM supported?
Yes. Custom housings, logos, jacket colors, test reports, and assemblies are available under MNDA protection.
What warranty is provided?
One year from delivery against material and workmanship defects. Extended warranties are available.
