MPO/MTP Fiber Optic Adapter – Low Insertion Loss, Precision Guide Pin Alignment for High-Density Networks
Product Details:
| Place of Origin: | ShenZhen & ZhongShan China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | MPO/MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 Works depend on the QTY |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 3000PCS/Week |
|
Detail Information |
|||
| Highlight: | MPO MTP fiber optic adapter,low insertion loss fiber adapter,precision guide pin alignment adapter |
||
|---|---|---|---|
Product Description

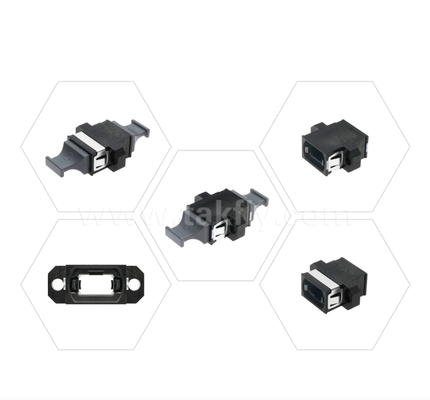

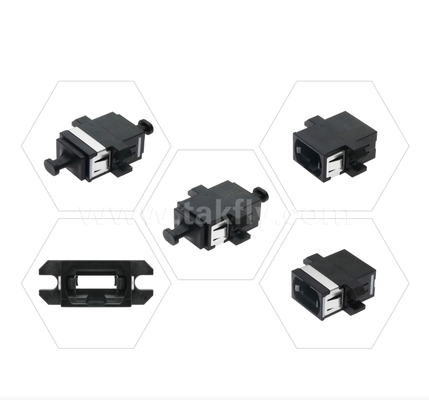

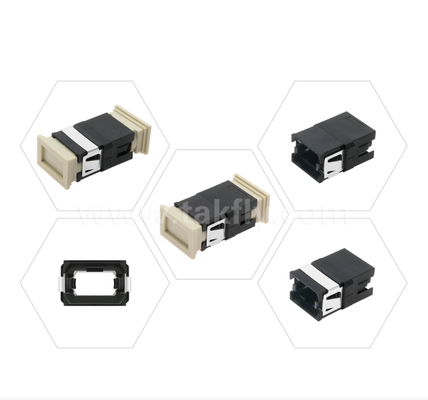

MPO/MTP Fiber Optic Adapter
Low Insertion Loss, Precision Guide Pin Alignment for High-Density Networks
Product Overview
The MPO/MTP fiber optic adapter is a high-precision, passive interconnection device designed to facilitate reliable connections between MPO/MTP fiber optic connectors. It serves as the critical interface for cable-to-cable or cable-to-device connections, maximizing the coupling of light energy from the transmitting optical fiber to the receiving optical fiber - ensuring efficient optical signal transmission in high-density environments.
Manufactured by TAKFLY, this adapter features precision-molded alignment sleeves and 0.7mm guide pin holes (female) / guide pins (male) that enable micron-level alignment accuracy between connector end-faces. The adapter is available in two key configurations: Key-Up to Key-Up and Key-Up to Key-Down, providing flexible polarity management options for various network architectures.

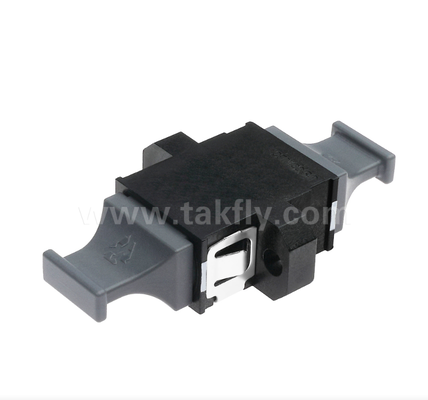

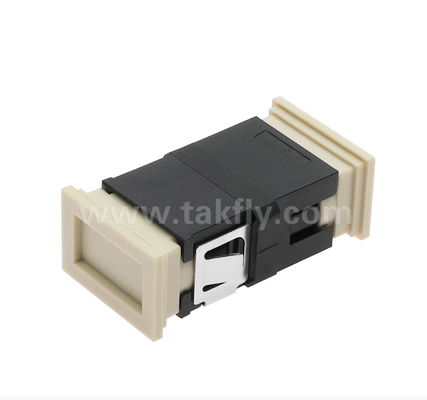

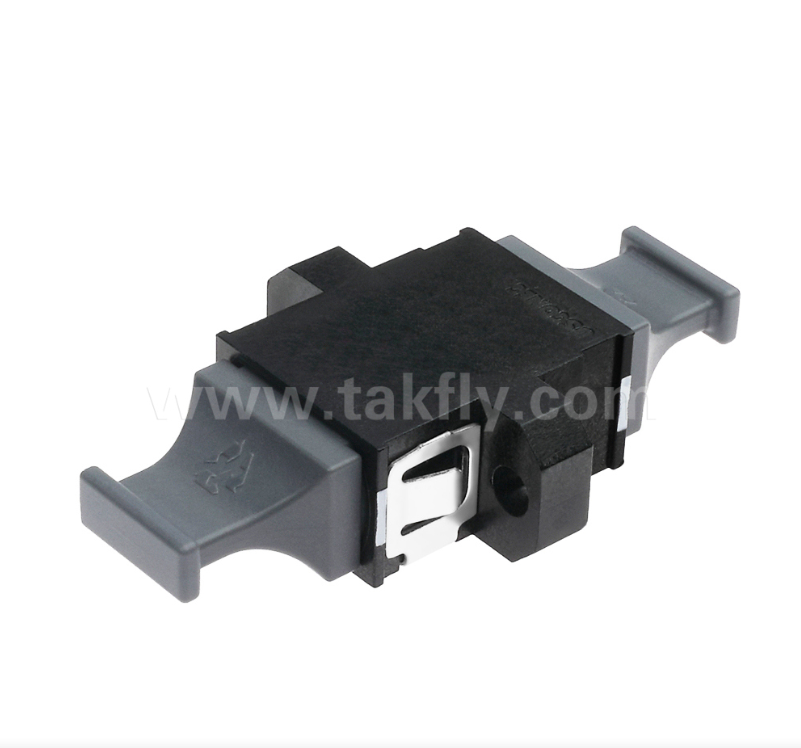

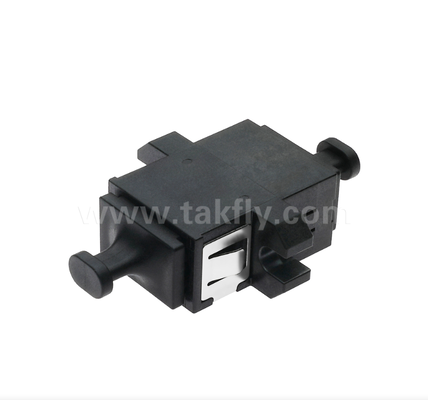

Highly Protective Dust Cap & Fast Installation
Rectangular structure with snap-on fixing for convenient and fast installation. Features dust cap protection to prevent debris and contamination. RoHS compliant.
Simple Fiber Optic Cable Connection
MPO/MTP connectors are precisely connected through 0.7mm guide pins (male) and guide holes (female) for optimal alignment.
Key Features
- Precision 0.7mm guide pins/holes for micron-level fiber core alignment
- Two key configurations: Key-Up to Key-Up / Key-Up to Key-Down
- High precision alignment sleeve (zirconia/phosphor bronze)
- Excellent interchangeability across different brands and batches
- Wide temperature range: -40°C to +85°C
- High durability: supports ≥500 mating cycles
- Compact space-saving design for high-density environments
- Compliant with IEC 61754-7 and TIA/EIA-604-5 (FOCIS-5)
- 100% factory tested (end-face inspection and optical performance)
- Customizable: key configuration, housing material, color, mounting options
Applications
- Data centers (40G/100G/400G architectures)
- Optical fiber distribution frames (ODF)
- Communication system base stations
- Optical communication equipment
- High-density patching areas
- Breakout cassettes & patch panels
- FTTA / 5G front-haul
- Test & measurement equipment
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team
More than 80 assembly workers with 6+ years of experience
Strong R&D Capability
More than 10 R&D engineers
Advanced Production Equipment
16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities
More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers
OEM Branding Accepted
Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Exhibition Participation & Certifications
OFC
FOCC
ConnecAsia
NFTCOM
AFRICACOM
SMART ICT
Contelem
Source Electronics Exhibition
Delivery Information
Samples
1-3 working days
Mass Production Orders
3-7 working days
Packaging Options
Plastic bag, carton, and pallet options available according to your requirements
