FTTH High Density MTP/MPO Fiber Optic Loopback | 4-12 core Option | Fiber Network Solution
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MTP/MPO Fiber Optic Loopback |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTTH High Density MTP/MPO Fiber Optic Loopback | 4-12 Core Option | Fiber Network Solution | Wavelength: | 850,1300,1310,1550nm |
|---|---|---|---|
| Fiber Type: | SM（G652、G655、G657）；MM（OM1-OM5） | Cable Diameter: | 2.0、3.0 Or Customized (Simplex/duplex) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | UPC≥50.0dB，APC≥60.0dB， MM≥35.0dB |
| Repeatability: | ≤ 0.1 | Tensile Strength: | >70N |
| Operating Temperature: | -20℃~70℃ | Storage Temperature: | -40℃~85℃ |
| Outer Sheath Material: | PVC、LSZH、TPU | Bending Radius（Static/Dynamic）: | 10D/20D |
| Length: | Customized | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | FTTH MTP fiber optic loopback,MPO fiber loopback 12 core,high density fiber network solution |
||
Product Description

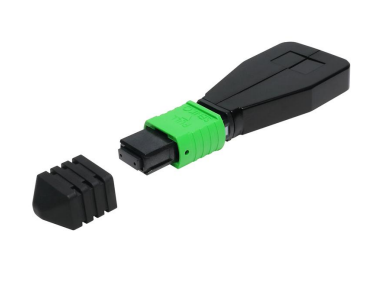

FTTH High Density MTP/MPO Fiber Optic Loopback
Available in 4-core, 8-core, and 12-core configurations for comprehensive fiber network solutions.
Product Overview
MTP/MPO Fiber Optic Loopbacks provide a reliable return path for signals, essential for both testing purposes and network restoration. These loopback devices are crucial for diagnosing network problems by isolating issues through systematic testing of network equipment.
Takfly MTP/MPO Fiber Loopbacks are designed to test the transmitting capability and receiving sensitivity of network devices, while also serving as reliable products for system loop testing.
Applications
- Data Center Infrastructure
- Optical System Access Networks
- Storage Area Networks - Fiber Channel
- 40G and 100Gbps Fiber Networks
- High Density Architectures
Key Features
- 4-core, 8-core, 12-core options available
- Standard loss and low loss configurations
- Single Mode APC or Multimode PC options
- Standard fiber array or customized solutions
- Reliable PIN positioning testing for Male/Female PIN
Technical Specifications
| Parameter | Specification |
|---|---|
| End Face Type | UPC and APC |
| Fiber Type | SM (G652,G655,G657); MM (OM1-OM5) |
| Cable Diameter | 2.0, 3.0 mm or customized (Simplex/duplex) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC SM≥50dB, APC SM≥60dB, PC MM≥35dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile Strength | >70N |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
| Outer Sheath Material | PVC, LSZH, TPU |
| Bending Radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Product Image
Why Choose TAKFLY?
Professional Manufacturing
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Finished products inspection before packing
- Pre-shipping spot checks
Delivery & Packaging
- Samples: 1-3 working days
- Mass production: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we offer discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping costs depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our QC department to analyze and implement solutions, with ongoing quality improvements.
Q6: What is your terms of packing?
A6: Standard packaging includes blister boxes and cartons, with custom packaging available upon request.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU delivery terms available.
Q9: How about your delivery time?
A9: Typically 5-7 working days after receiving advance payment, depending on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
