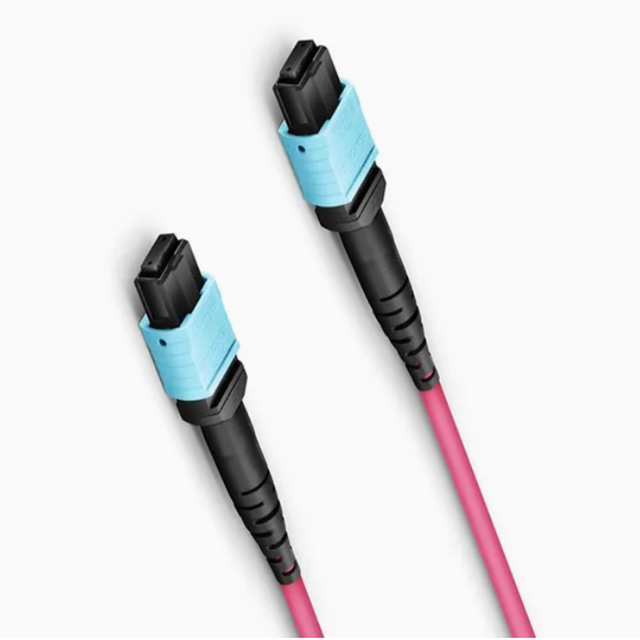

MPO MTP connectors are high-density, multi-fiber optical connectors designed for fast, reliable, and compact fiber optic connections in data centers and high-speed networks.
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM/Takfly |
| Certification: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| Model Number: | DF-MPO MTP Connector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bags + carton box / plastic box + carton box |
| Delivery Time: | 3-15 working days according to qty and requirements |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 3000 pcs / week |
|
Detail Information |
|||
| Fiber Connector: | MPO,MTP Connector | Fiber Cores: | 4, 8, 12, 24 Fibers |
|---|---|---|---|
| Fiber Mode: | SM, MM | Polishing Type: | UPC, APC |
| Gender: | Male, Female | Cable Diameter: | 250um, 0.9mm, 2.0mm, 3.0mm Or Customized |
| Jacket Material: | PVC, LSZH, OFNR, OFNP, Etc. | Cable Length: | 0.5M, 1M, 3M, 5M Or Customized |
| Cable Polarity: | Type A, Type B, Type C Or Customized | Cable Color: | Yellow, Aqua, Violet, Lime Or Customized |
| Highlight: | MPO MTP fiber optic connectors,high-density MPO MTP connectors,compact MPO MTP network connectors |
||
Product Description
MPO MTP Connectors
MPO MTP connectors are high-density, multi-fiber optical connectors designed for fast, reliable, and compact fiber optic connections in data centers and high-speed networks.
Product Overview
The MPO/MTP connectivity standard provides a high-density, miniaturized interconnection solution. These multi-fiber connectors utilize ribbon or miniaturized optical fibers to deliver reliable, stable connections with exceptional density. The comprehensive MPO/MTP cabling system includes trunk cables, distribution boxes, fiber optic distribution frames, and various patch cords.
Factory-terminated and tested high-capacity MPO/MTP connectors with ribbon or miniaturized optical cables enable plug-and-play operation with on-site equipment. This system supports the demanding requirements for high-density, high-efficiency interconnect cabling in high-speed, high-capacity fiber optic communication systems, making it an ideal solution for modern data center applications.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Product Images
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
