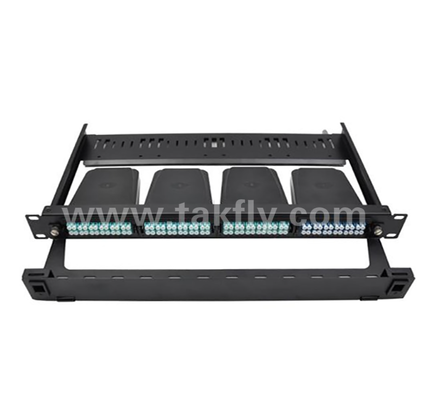

1U 24-Port MPO/MTP Patch Panel – 19" Rack-Mount, High-Density, Supports Pre-Connected MPO Module Boxes & LC/MPO Adapter Panels, for Data Center Fiber Trunk Cabling
Product Details:
| Place of Origin: | ShenZhen & ZhongShan,China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | TK-HRS-1096M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | can be negotiated |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 working days depend on QTY |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 1000 PCS/Days |
|
Detail Information |
|||
| Highlight: | 1U 24-port MPO patch panel,rack-mount fiber optic panel,high-density MTP patch panel |
||
|---|---|---|---|
Product Description
1U 24-Port MPO/MTP Patch Panel
19" rack-mount high-density patch panel designed for data center fiber trunk cabling. Supports pre-connected MPO module boxes and LC/MPO adapter panels for efficient fiber distribution.
Product Overview
Takfly's 1U 24-port MPO/MTP patch panel is engineered for data center distribution area optical fiber trunk connections. Installed in standard 19-inch racks and cabinets, this panel accommodates pre-connected MPO module boxes or MPO adapter panels and LC adapter panels.
Configuration Options
- Install 4 MPO pre-terminated cassette modules (96 fibers maximum)
- Install 4 MPO adapter panels (288 fibers maximum)
Construction & Design
- High-quality cold-rolled steel material
- Integrated 1U cable management rack
- Tool-free operation with no screws required
- Lightweight and easy to operate
- Fast wiring capabilities
Technical Specifications
| Production Process | Galvanized steel plate, environmental protection spray plastic |
| Product Dimensions | 430 × 338.5 × 43.6mm |
| Rack Compatibility | 19-inch standard rack and cabinet |
Key Features
Applications
Ideal for data center fiber optic trunk cabling, distribution area connections, and high-density fiber management systems.
Why Choose Takfly
26 years of manufacturing experience in fiber optic products
Expert Team
- 80+ assembly workers with 6+ years of experience
- 10+ R&D engineers with strong development capabilities
Advanced Manufacturing
- 16 sets of German imported injection machines
- 16 dedicated production lines
Comprehensive Quality Assurance
- 30+ testing instruments including OTDR, ILD, VFL, RL, IL
- Tension strength testers and crush resistance testers
- Power meter testers and light checkers
Customization Options
OEM branding accepted - custom logo and branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participant in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
| Samples | 1-3 working days |
| Mass Production Orders | 3-7 working days |
| Packaging Options | Plastic bag, carton, and pallet options available according to requirements |
