Takfly 1U/2U Sliding Patch Panel – High-Density Plug-and-Play MTP/MPO to LC Cassette for Up to 192 Fibers
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-MPO Patch Panel#995 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Installation Type: | Plug-in/Field-terminated | Module Fiber Amount: | Up To 24 |
|---|---|---|---|
| Operating Temperature: | -40°C To +80°C | Cores: | 2/4/6/8/12/24/48 |
| Cable Material: | LSZH / OFNP / PVC | Fiber Counts: | 12F |
| Fiber Count: | 8/12/24/48/72 Fibers | Return Loss: | >50dB |
| Patch Penal: | 6 X 4 LC X 5 Moudle | Polarity: | B |
| Ir Stardand: | MPO/MTP<0.7dB | Core: | Multicore |
| Fiber Mode: | SM, MM(OM1,OM2,OM3,OM4,OM5) | Size: | 180 X 90 X 30 (mm) |
| Cable Diameters: | 0.9 / 2.0 / 3.0mm | ||
Product Description

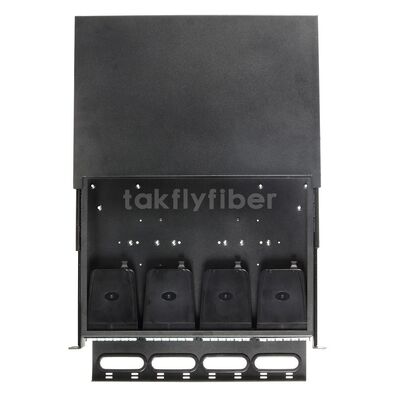

Takfly 1U/2U Sliding Patch Panel – Plug‑and‑Play MTP/MPO to LC Cassette, Up to 192 Fibers
Product Overview
The Takfly rackmount patch panel provides a centralized, high‑density fiber management solution for plug‑and‑play MTP/MPO to LC cassette modules. This system supports pre‑terminated, high‑density MTP/MPO cabling, significantly improving network availability. It is particularly well‑suited for storage area networks (SAN), local area networks (LAN), and data center environments.

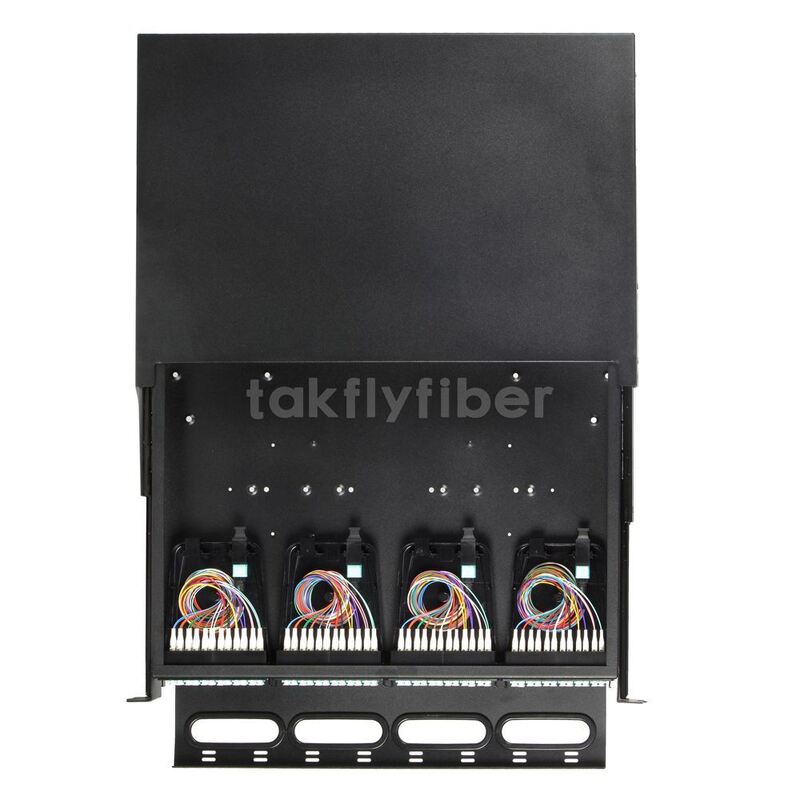

Each easy‑plug MTP/MPO to LC cassette houses a 12‑ or 24‑fiber MTP/MPO‑based assembly and comes pre‑loaded with LC adapters available in multiple fiber modes (single‑mode or multi‑mode).
Key Features
- Accommodates up to 4 small‑form MTP/MPO modules within 1U of rack space
- Wide range of adapter options (LC duplex, quad, etc.)
- Compatible with loose tube, distribution, and pre‑terminated cables
- RoHS, REACH SvHC, and UL certified
- Standard 19‑inch width, sliding‑type chassis for convenient cable management and module access
Applications
- Data center infrastructure
- Telecommunication networks (central office, headend)
Mechanical and Physical Specifications
| Parameter | 1U | 2U |
|---|---|---|
| Height | 44 mm | 88 mm |
| Maximum port capacity | 4 cassettes (up to 96 fibers) | 8 cassettes (up to 192 fibers) |
| Width | 482.6 mm (standard 19″) | 482.6 mm (standard 19″) |
| Depth | 363.2 mm | 363.2 mm |
| Net weight | 3 kg | 6 kg |
| Packaged weight | 3.3 kg | 6.5 kg |
| Chassis material | 1.2-1.5 mm cold‑rolled steel | Same |
| Surface finish | Powder coating | Same |
| Color | Black | Black |
Standards and Compliance
- Designed in accordance with TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297‑1
- Fully compliant with RoHS and REACH/SvHC requirements
Installation Notes
The sliding‑type design allows the patch panel to be pulled forward from the rack for easy rear‑access cassette replacement or cleaning.
Multiple adapter panel configurations (LC duplex, LC quad) are available to match different fiber counts and polarity schemes.
The panel can be mounted in any standard 19‑inch equipment rack (two‑post or four‑post).
Ordering Information
| Model | Height | Max. Cassettes | Max. Fibers | Weight (Net) |
|---|---|---|---|---|
| Takfly‑PP‑1U | 1U | 4 | 96 | 3 kg |
| Takfly‑PP‑2U | 2U | 8 | 192 | 6 kg |
Custom labeling and adapter colors available upon request.
