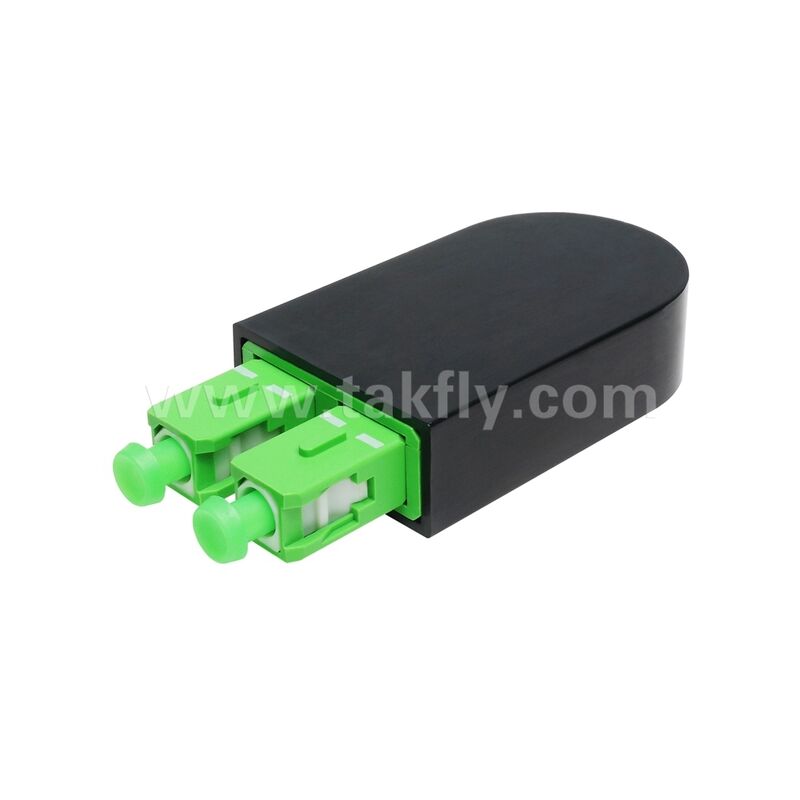

Singlemode SM SC/APC Loopback
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001, ISO14001, CE, ROHS, REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 1.80~2.35 Piece |
| Packaging Details: | Individual bag and carton box |
| Delivery Time: | 3~5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 pieces per day |
|
Detail Information |
|||
| Connector Type: | SC/APC | Optical Fiber: | Singlemode G657A2 |
|---|---|---|---|
| Wavelength: | 1310nm/1550nm | Insertion Loss: | Typical≤0.20dB, Max≤0.30dB |
| Return Loss: | ≥60dB | Operating Temperature: | -20~+60℃ |
| Highlight: | SM SC/APC fiber loopback,singlemode fiber optic loopback,SC/APC patchcord loopback tester |
||
Product Description
Singlemode SM SC/APC Loopback
Technical Specifications
| Parameter | Singlemode | Multimode |
|---|---|---|
| Test Wavelength | 1310nm/1550nm | 850nm/1300nm |
| Insertion Loss | Typical ≤0.20dB, Max ≤0.30dB | Typical ≤0.40dB, Max ≤0.50dB |
| Return Loss | UPC ≥50.0dB, APC ≥60.0dB | ≥35.0dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Durability | ≤0.20dB typical change, 1000 mating cycles | |
| Operating Temperature | -20ºC to +60ºC | |
| Storage Temperature | -40ºC to +85ºC | |
Key Features
- Low insertion loss and high return loss
- Excellent exchangeability and durability
- Compact and robust design
Applications
- Device pig-tailing
- Premise networks
- Patch panel applications

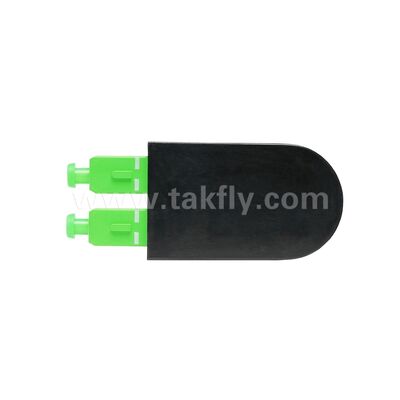

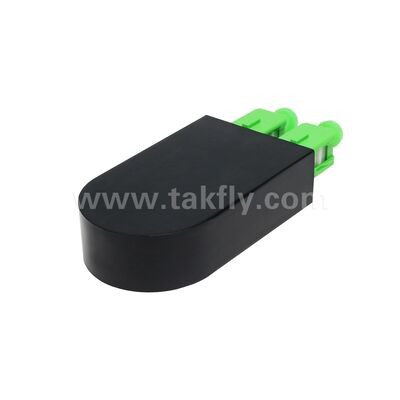

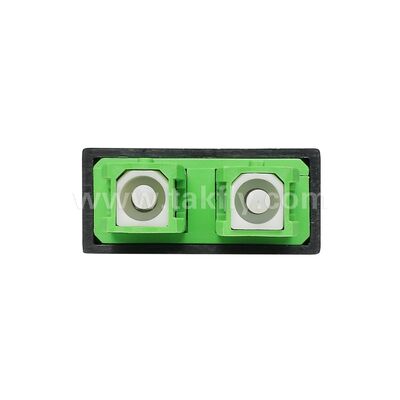

Product Images
