Ultra-High Density Patch Cord: SC-LC 12F with Innovative 2.0mm Micro-Tube Structure & Slim 12.5mm Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | US$0.2~0.75/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Highlight: | SC-LC fiber optic patch cord,high density 12F patch cable,2.0mm micro-tube fiber cord |
||
|---|---|---|---|
Product Description
Ultra-High Density Patch Cord: SC-LC 12F with Innovative 2.0mm Micro-Tube Structure & Slim 12.5mm Cable
Product Overview
SC-LC 12F Patch Cord with 12.5mm Cable Diameter
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Key Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Technical Specifications
| End face type | UPC and APC |
| Fiber type | SM(G652, G655, G657); MM(OM1-OM5) |
| Cable Diameter | 12.5mm (Fiber optic sub unit 2.0mm) |
| Insertion loss | ≤ 0.3dB |
| Return loss | UPC SM ≥ 50dB, APC SM ≥ 60dB, UPC MM ≥ 35dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC, LSZH, PU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
How to Order Fiber Optic Patchcord
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
Why Choose TAKFLY?
Core Advantages
- Founded in 2000, Located in Shenzhen (south of China neighbor Hongkong)
- FTTH, DATA Center Solution, One-stop fiber optic components supply
- ISO 9001/14001/RoHS/CE/FCC certified quality
- Factory-direct pricing & strict quality control
- Customized production & on-time delivery
- 25 years' expertise + 30 engineers' R&D support
- Accept trial/small orders
- Main customer: Vodafone, Orange, Telefornica, Movistar, Ericsson, etc.
- Worldwide exhibitions: OFC, CommunicAsia, ECOC, Netcom, Cable Tech, Network X, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
Premium Services
- 3-7 days for samples; 2-3 weeks for bulk (urgent orders supported)
- 100% pre-shipment testing
- Prompt response & full after-sales support

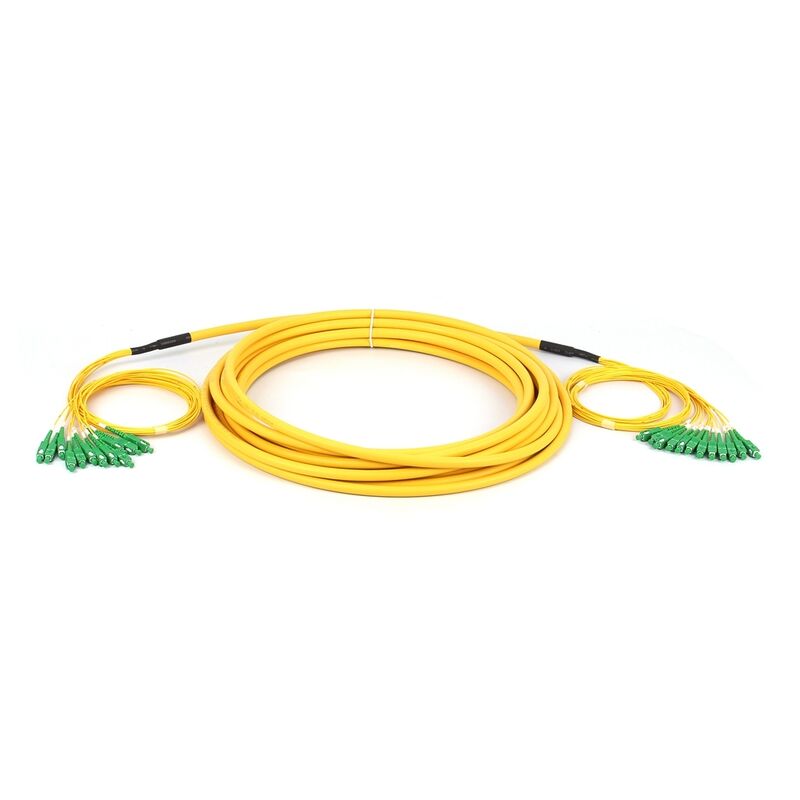

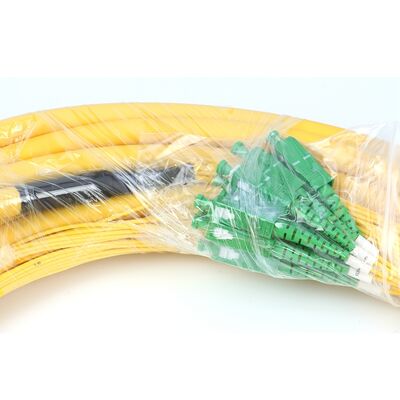

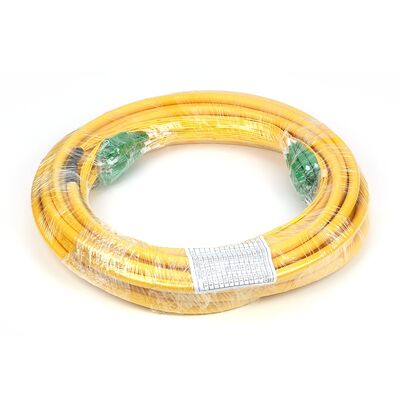

Product Images
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
Q: What's your warranty?
A: Depends on different product, we have 1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
