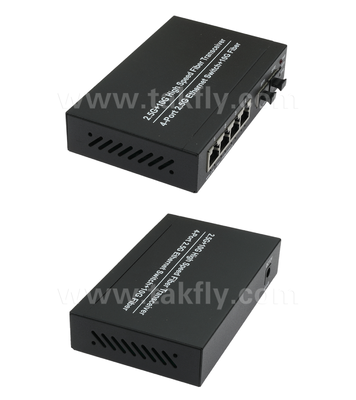

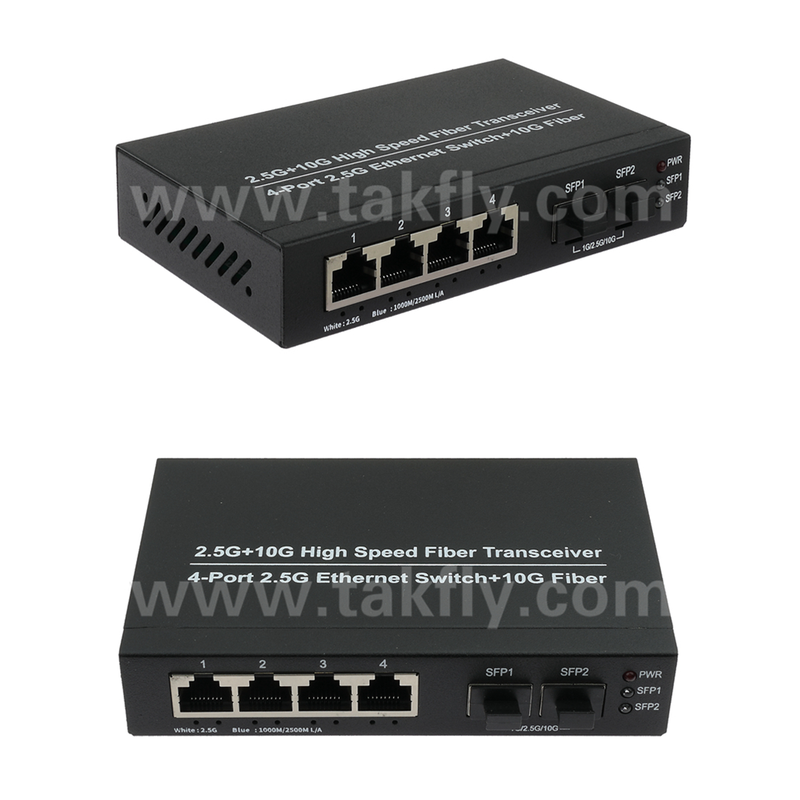

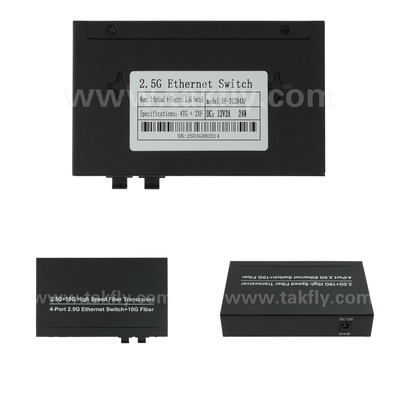

2.5G Ethernet Switch with 10G Uplink and Fanless Metal Housing for High-Speed Network Expansion
Product Details:
| Brand Name: | Takfly/DF |
| Certification: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Model Number: | TK-MPO-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | International Export Packing |
| Delivery Time: | 1-3 Working Days( Depends On Quantity) |
| Payment Terms: | TT 100% |
| Supply Ability: | 3000 Pcs/ Day |
|
Detail Information |
|||
| Sheath Material: | PVC | Operation Wavelength: | 1310/1550nm |
|---|---|---|---|
| Insertion Loss: | 0.3dB | Interchangeability: | ≤0.2dB |
| Polarity: | Type A, B, Or C | Fiber Amount: | 24 |
| Mode: | SM MM | Ferrulematerial: | Ceramic |
Product Description
2.5G 2 Port Fiber 4 Port Copper Ethernet Switch
Product Overview
This high-performance 2.5G Ethernet switch features a 10G uplink for ultra-fast connectivity without requiring replacement of existing fiber cables. Powered by an advanced chipset, it delivers 2.5 times the speed of standard Gigabit, making it ideal for demanding network applications.
All ports support wire-speed forwarding for optimal performance, while the plug-and-play design requires no configuration. The desktop-style fanless metal housing ensures quiet and reliable operation, with RJ45 ports featuring built-in signal LEDs for easy status monitoring.
Designed to extend Ethernet data transmission over fiber links, the switch enables seamless network expansion and is compatible with a wide range of 2.5G network devices including computers, routers, NAS servers, printers, IP cameras, and wireless access points.
Ideal for medium to large enterprise networks, security surveillance systems, hotel deployments, and campus environments.
Technical Features
- 2 SFP fiber ports supporting 1G/2.5G/10G speeds and 4 copper RJ45 ports supporting 1G/2.5G Ethernet
- Compliant with IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3bz (2.5G Ethernet), and IEEE802.3ae (10G Ethernet) standards
- Auto MDI/MDIX support for easy installation and system setup
- High-quality, high-speed network chips with carefully selected chipset design protecting against overload, short circuits, and damage
- RJ45 ports auto-negotiate 100M/1000M/2.5G speeds for true plug-and-play operation
- 10G uplink SFP fiber ports support auto-negotiation for 1G/2.5G/10G speeds
- Store-and-forward switching architecture with high-capacity internal buffers for non-blocking 2.5G wire-speed forwarding
- Professional surge protection for power and network ports
- Fanless passive cooling ensures stable operation from -10°C to +70°C
- Supports both full-duplex and half-duplex communication with auto-negotiation
- All-metal housing for enhanced durability, strength, and superior heat dissipation
Technical Specifications
| Product Type | 2.5G Ethernet Switch |
| MTBF | 100,000 hours |
| Input Voltage | External power supply DC 12V |
| Operating / Storage Temperature | -10℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Port Description | 2 x SFP fiber ports (1G/2.5G/10G) + 4 x RJ45 copper ports (1G/2.5G) |
| Total Power Consumption | < 6.5W (full load) |
| Fiber Port Type | SFP |
| LED Indicators | Power, Fiber Port Status, Copper Port Status, System Status |
| Switching Mode | Store-and-Forward |
| Switching Capacity | 60Gbps |
| Packet Forwarding Rate | 44.64Mpps |
| MAC Address Table | 8K |
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3ae |
| Flow Control | Supported |
| Network Topology | Supports ring, star, bus, tree, and other topologies |
| Ingress Protection | IP30 |
| Housing | High-quality metal with superior heat dissipation |
| Model Number | ZSTX-GS06-2.5G2F4-SFP |
| Power Supply | External power supply DC 12V |
| Weight | 0.4kg / unit |
| Product Dimensions | 128.6 × 78.5 × 26 mm (excluding protrusions) |
| Package Dimensions | 200 × 162 × 47 mm |
| Carton Quantity | 48 units / carton |
