Gigabit WDM SM 1310nm 1550nm 10/100/1000M Bidi 20KM SC Media Converter
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | DF/OEM/Neutral |
| Certification: | CE/ROHS/FCC/REACH/ISO9001/ISO14001 |
| Model Number: | TK-MC-1.25G-SC-SX-20KM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.99~US$31.99/Pair |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3-9 working days |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 5000PCS/Week |
|
Detail Information |
|||
| Product Name: | 20KM Gigabit Ethernet Fiber Optic Media Converter | Fiber Port: | SC Single Fiber Port |
|---|---|---|---|
| Standard: | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IE EE802.1d | Working Rate: | 10/100/1000M, 1.25G |
| Distance: | SM: 20KM~120KM | Power Supply: | DC5V 1A |
| Storage Humidity: | 5%~90% | Size:: | 94mmx70mmx26mm |
| Working Temperature: | -40~ 70 ℃ | Wavelength: | 1310nm/1490nm/1550nm |
| Color: | Black, Golden | Material: | Metal |
| Warranty: | 2 Years | Mode: | Single Mode |
| High Light: | 1550nm Gpon Media Converter,20KM Gpon Media Converter,Gigabit WDM SM gpon ethernet converter |
||
Product Description
Gigabit WDM SM 1310nm 1550nm 10/100/1000M Bidi 20KM SC Media Converter
Fiber Optic Media Converter Despription:
Takfly's Fiber Optic Media Converter has been certified with CE/ROHS/FCC/REACH, ISO9001/ISO14001, and it is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
Fiber Optic Media Converter Gigabit WDM SM 1310nm / 1550nm 10/100/1000M Bidi 20KM SC Optical Gpon Media Converter is for Data Dransmission via high-speed Ethernet.
Takfly's Fiber Optic media converters are designed to transmit and receive 10/100/1000 Mbps data over single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100/1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. LED indicators are provided for rapidly as certaining equipment operating status.
Fiber Optic Media Converter Techinical Parameter:
| Technical Parameter: | |
| Access Method: | 10/100/1000Mbps |
| Standard: | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d |
| Wavelength: | 850nm/1310nm/1550nm |
| Distance: | Dual Fiber LC type MM: 550m, Dual Fiber SM: 10/20/30 /50/80Km, Single Fiber SM: 20/40/60Km, CAT5: 100m |
| Conversion Method: | Media Conversion |
| Time Delay: | <10μs |
| BER: | <1/1000000000 |
| LED Indicator Lamps: | 1000M, 100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER |
| Power Supply: | DC5V 1A (external power), AC220 0.5A /DC-48( internal power ) |
| Power Dissipation: | 3W |
| Operating Temperature: | 0 ~ 50 ℃ |
| Humidity: | 10/100/1000Mbps |
| Storage Temperature: | -40~ 70 ℃ |
| Storage Humidity: | 5%~90% |
| Dimension: | External:94mmx70mmx26mm; Internal: 140mmx110mmx30mm |
Fiber Optic Media Converter Features:
1) Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX , full duplex 1000M working pattern.
2) With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control,decrease of broadcast storm.
3) With famous brand optical-electronic-integration module providing excellent optical and electrical properties toensure reliable data transmission and long working life.
4) Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
5) Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
6) Supporting 9kbyte super data packet transmission By store and forwarder mode.
7) Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission andfull/half duplex, data rate.
8) With more than 50,000 hours MTBF, complying with telecom operating standard.
9) Supporting choosing optical ports from dual fiber(MM),dual fiber(SM),single fiber(SM).

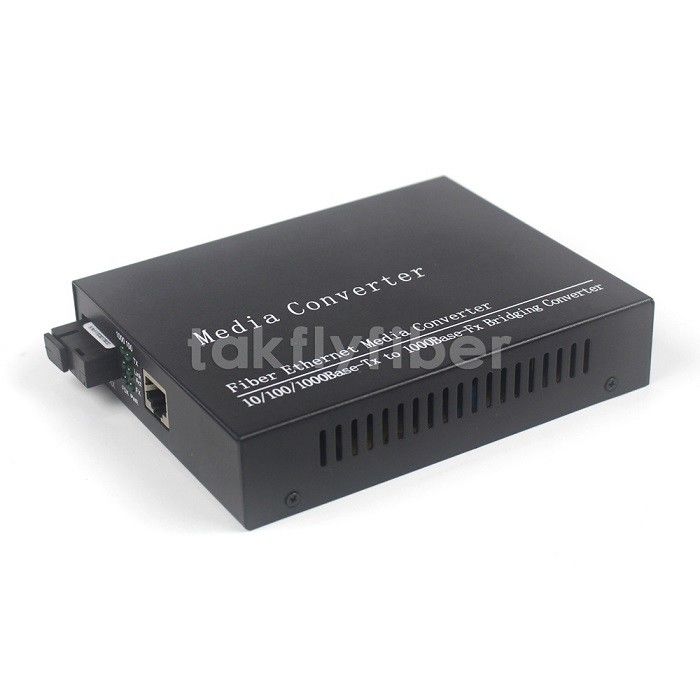

Fiber Optic Media Converter Pictures:
