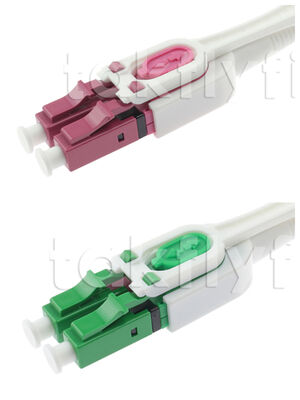

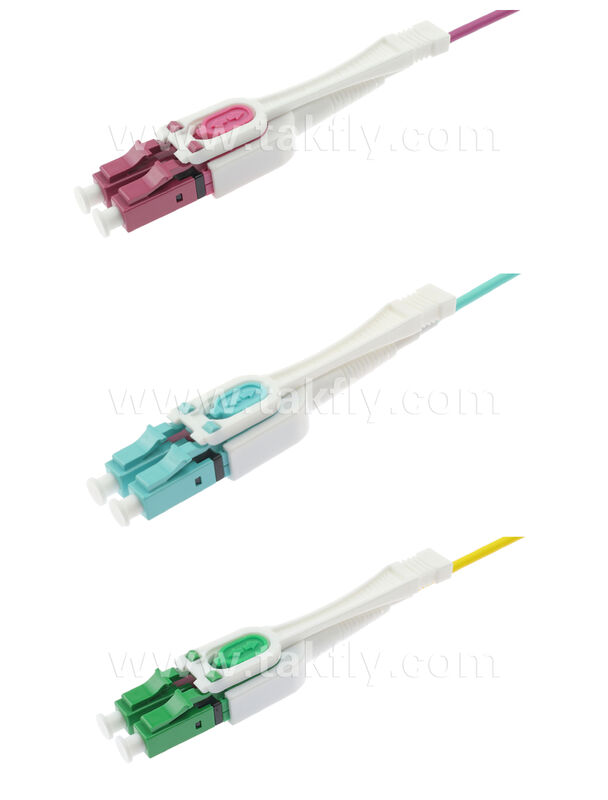

LC Uniboot Patch Cord with Polarity Switchable Low Insertion Loss and High Density Design for Data Centers
Product Details:
| Brand Name: | Takfly/DF |
| Certification: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Model Number: | TK-MPO-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | International Export Packing |
| Delivery Time: | 1-3 Working Days( Depends On Quantity) |
| Payment Terms: | TT 100% |
| Supply Ability: | 3000 Pcs/ Day |
|
Detail Information |
|||
| Sheath Material: | PVC | Operation Wavelength: | 1310/1550nm |
|---|---|---|---|
| Insertion Loss: | 0.3dB | Interchangeability: | ≤0.2dB |
| Polarity: | Type A, B, Or C | Fiber Amount: | 24 |
| Mode: | SM MM | Ferrulematerial: | Ceramic |
Product Description
This high-performance fiber optic patch cord features a polarity-switchable uniboot design, enabling efficient cable management and simplified polarity conversion without the need for additional tools. Its innovative uniboot construction integrates two fibers into a single pull-proof boot, significantly reducing cable bulk and improving airflow in high-density environments.
Engineered for reliable connectivity, this patch cord delivers exceptional optical performance, ensuring low insertion loss and high return loss for stable, high-speed data transmission. Ideal for data centers and telecommunications applications, it combines space-saving design with operational flexibility to support evolving network infrastructures.
- Low insertion loss and high reflection loss
- Good durability and exchange ability
- Polarity switchable
- High temperature stability
- Standard: Telcordia GR-326-CORE
- Local area networks (LANS)
- Wide area networks (WANS)
- Data processing networks
- Telecommunication networks
- Active device termination
- Test equipment
- CATV
| Parameter | Specification |
|---|---|
| End face type | UPC |
| Fiber type | SM (G652, G655, G657); MM (OM1 OM5) |
| Cable Diameter | 2.0/3.0mm or customized |
| Insertion loss | ≤ 0.3dB |
| Return loss | UPC SM ≥ 50dB, UPC MM ≥ 35dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Strength Member | Kevlar |
| Tensile strength | >60N |
| Ferrule | 1.25mm (CCTC) |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Outer Sheath Material | PVC, LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Designed for direct use in ONU applications, this easy-to-operate connector features a fastening strength exceeding 5 kg, ensuring secure and reliable installation. It is widely adopted in FTTH projects for network upgrades, helping reduce the need for sockets and adapters, thereby lowering overall project costs.
Compatible with 86-standard sockets and adapters, the solution enables seamless connections between drop cables and patch cords. The 86-standard socket is engineered with a unique design that delivers comprehensive protection for the connection interface.
We assist customers in selecting the most suitable fiber optic connectors for their specific applications, providing expert technical consultation and guidance throughout the installation process. Our comprehensive after-sales support includes maintenance services to ensure long-term reliability. We are committed to delivering the highest quality fiber optic connector products, backed by 24/7 customer service and a robust warranty program.
- Packaged in cardboard box with foam padding for protection
- Shipped via reliable carrier
- All orders shipped within 24 hours of payment
- Please send us your inquiry including product name, specifications, quantity, and destination port (for FOB/CIF/CFR quotes)
- We will provide a formal quotation with lead time
- Upon confirmation, we will issue a Proforma Invoice (PI) with our bank details
- Production commences after receipt of payment
- We will confirm the consignee details with you before shipping
- A tracking number will be provided upon dispatch
